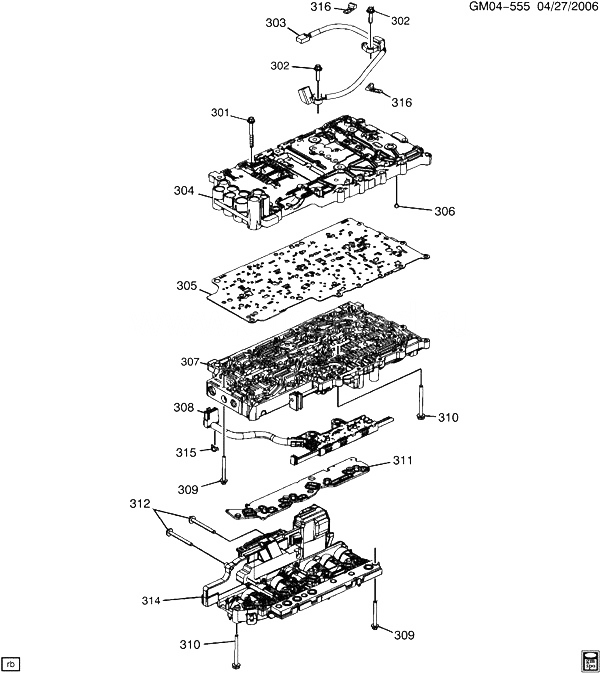

(GM04-555) 2008-2011 D АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYB) (6L50) CONTROL VALVE ASSEMBLY CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
301 24227130 BOLT, C/VLV UPR BODY (M5X0.8X36) DW (MYB) 2007-2011 12
302 24225398 BOLT, A/TRNS INPUT OUTPUT SPD SEN (M6 X 1.0 X 20) DW 2008-2011 02
303 24265507 SENSOR, A/TRNS INPUT OUTPUT SPD (INCLS 316) (NON-UNIGEAR/NO STEP) (4.329) (ACDelco #24265507) DW (MYB) 2009-2011 01
303 24265507 SENSOR, A/TRNS INPUT OUTPUT SPD (INCLS 316) (NON-UNIGEAR/NO STEP) (ACDelco #24265507) DW (MYB) 2009-2011 01
304 96043298 BODY, C/VLV UPR (ACDelco #96043298) DW29 (MYB) 2011-2011 01
305 24261077 PLATE, C/VLV BODY SPCR (W/GSKT) (ACDelco #24261077) DW (MYB) 2011-2011 01
306 96020431 VALVE, C/VLV BODY BALL CHK (ACDelco #96020431) DW (MYB) 2008-2011 07
307 24251431 BODY, C/VLV LWR (SEE GROUP 04.000 AUTOMATIC TRANSMISSION/LOWER CONTROL VALVE BODY FOR DETAILED ILLUSTRATED VIEW) (W/O MANUAL VALVE) (ACDelco #24251431) DW29 (MYB) 2010-2011 01
308 24242938 SWITCH, A/TRNS MAN SHFT SHF POSN (INCLS 315) (INTERNAL MODE SWITCH) (ACDelco #24242938) DW 2008-2011 01
309 24240848 BOLT, C/VLV LWR BODY (MX50.8X45.0) DW (MYB) 2007-2011 06
310 24224822 BOLT, C/VLV LWR BODY (M5X0.8X55) DW (MYB) 2007-2011 06
311 24238925 PLATE KIT, CONT SOL VLV FLTR (ACDelco #24238925) DW29 (MYB) 2010-2011 01
312 24240845 BOLT, CONT SOL VLV HEAT SINK (W/ BODY TCM) (M5X0.8X53.0) (ACDelco #24240845) DW29 (MYB) 2010-2011 02
314 24258304 VALVE, CONT SOL (W/ BODY TCM) (MUST ALSO ORDER EITHER A BODY KIT-C/VLV, OR A SEAL KIT-A/TRNS SERV, DEPENDING ON REPAIR.) (ELECTRONIC TRANS CONTROLLER ASM W/SOLENOIDS TCM (NOT A CONTROL VALVE BODY ASM WITH VALVE BODY, VALVES, AND SPRINGS)) DW29 (MYB) 2011-2011 01
315 24236233 CLIP, A/TRNS MAN SHFT SHF POSN SW WRG HARN (PART OF 308) DW29 (LLT, LF1, MYB, MX7) 2010-2011 01
316 24236504 CLIP, A/TRNS INPUT OUTPUT SPD SEN WRG HARN (PART OF 303) (SILVER) (NON-UNIGEAR) DW 2008-2011 02
