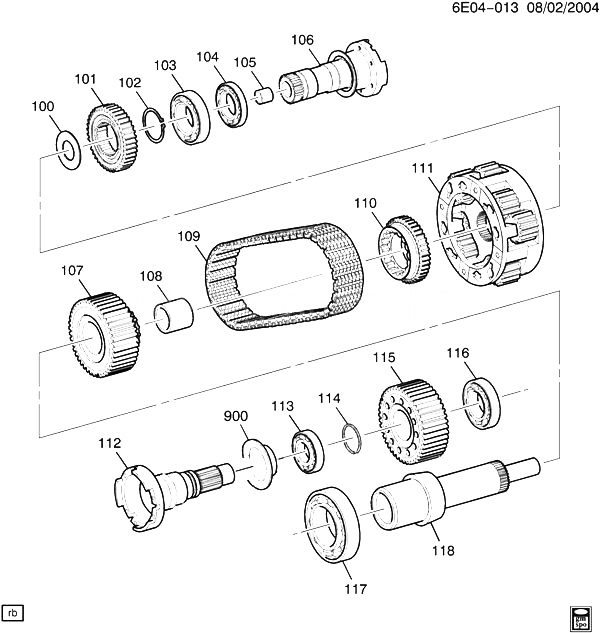

(6E04-013) 2008-2011 DW29 РАЗДАТОЧНАЯ КОРОБКА PART 2 INTERNAL COMPONENTS(MX7) CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 89059525 WASHER, TRFER CASE PLNT CARR SUN GR THR D29 2008-2011 01
101 88984524 GEAR, TRFER CASE PLNT CARR SUN (INPUT) (STAMPED PM/POWDERED METAL) D29 2008-2011 01
102 88984493 RING, TRFER CASE RR OUTPUT SHF RR BRG RET (41MM I.D.) (ACDelco #88984493) D29 2008-2011 01
103 88996564 BEARING, TRFER CASE FRT OUTPUT SHF DRV SPKT D29 2008-2011 01
104 88996633 BEARING, TRFER CASE RR OUTPUT SHF RR (ACDelco #88996633) DW29 (MX7) 2008-2011 01
105 19168733 BUSHING, TRFER CASE RR OUTPUT SHF (PART OF 106) D29 2008-2011 01
106 19178237 SHAFT, TRFER CASE RR OUTPUT (INCLS 105) D29 (LLT) 2008-2011 01
107 19133264 SPROCKET, TRFER CASE FRT OUTPUT SHF DRV (INCLS 108) D29 2008-2011 01
108 19168732 BUSHING, TRFER CASE FRT OUTPUT SHF DRV SPKT (PART OF 107) (ACDelco #19168732) D29 2008-2011 01
109 89059578 CHAIN, TRFER CASE TWO/FOUR WHL DRV D29 (LLT, MX7) 2008-2011 01
110 88984523 GEAR, TRFER CASE PLNT CARR SUN (OUTPUT) D29 2008-2011 01
111 19210917 CARRIER, FRT/RR DRV DIFF D29 2008-2011 01
112 89059284 SHAFT, TRFER CASE FRT OUTPUT (INCLS 900) D29 2008-2011 01
113 88996664 BEARING, TRFER CASE FRT OUTPUT SHF RR D29 2008-2011 01
114 88996671 RING, TRFER CASE FRT OUTPUT SHF BRG RET D29 2008-2011 01
115 88996666 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN D29 2008-2011 01
116 88996665 BEARING, TRFER CASE MAIN SHF FRT (OUTPUT SHAFT FRT) D29 2008-2011 01
117 15580230 BEARING, TRFER CASE INPUT SHF (BORG-WARNER) (4.510) DW29 (MYB) 2008-2011 01
118 19256370 SHAFT, TRFER CASE INPUT D29 (LLT, MX7) 2010-2011 01
900 88996681 DEFLECTOR, TRFER CASE FRT OUTPUT SHF SEAL DIRT (PART OF 112) DW (MX7, MYB) 2010-2011 01
