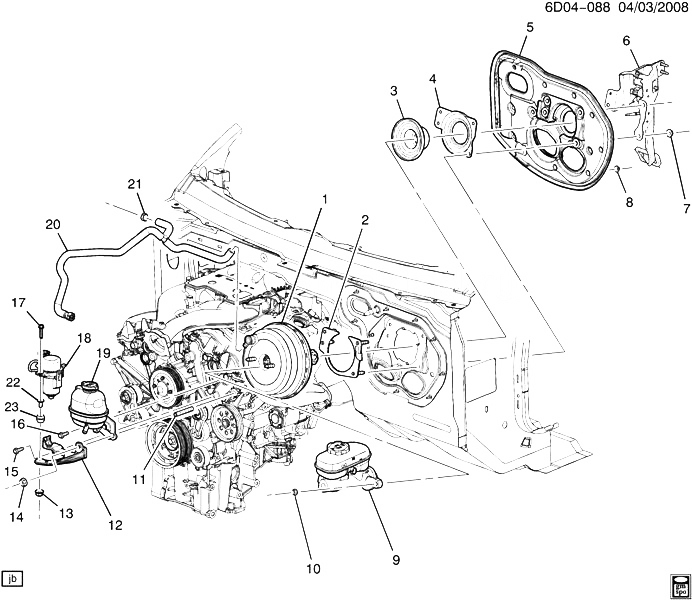

(6D04-088) 2009-2011 DW29 ТОРМОЗНОЙ УСИЛИТЕЛЬ И КРЕПЛЕНИЕ ГЛАВНОГО ЦИЛИНДРА (LLT/3.6V) CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20800046 BOOSTER, P/B (SEE GROUP 04.000 BRAKE BOOSTER FOR DETAILED ILLUSTRATED VIEW) DW29 2009-2011 01
002 25675835 BRACKET, BRK PED BRKT DW29 2010-2011 01
003 25732452 BOOT, BRK PED PUSH ROD DW 2010-2011 01
004 25697461 RETAINER, BRK PED PUSH ROD BOOT DW 2010-2011 01
005 25789356 BARRIER, BRK PED BRKT SND DW 2011-2011 01
006 PEDAL, BRK (W/BRKT) (SEE GROUP 04.000 BRAKE PEDAL FOR DETAILED ILLUSTRATED VIEW) 2009-2011
007 11514519 NUT, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (BRK PED BRKT) 2009-2011 04
008 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BRK PED BRKT SND BARR) 2009-2011 08
009 22797527 CYLINDER, BRK MAS (SEE GROUP 04.000 BRAKE MASTER CYLINDER FOR DETAILED ILLUSTRATED VIEW) (ACDelco #174-1230) DW29 2009-2011 01
010 11609949 NUT, HEX PRVL TORQ, W/NYLON WA INSERT, M10X1.5X11.7, ZC (BRK M/CYL) 2009-2011 02
011 11571231 STUD, P/B BOOS PUMP BRKT (STUD-STRAIGHT, M12X1.75X24, M12X1.75X45.5 B LOBED, 10.9, E11 TORX) D 2009-2011 01
012 25806500 BRACKET, VAC PUMP DW (LLT, JJB) 2010-2011 01
013 11516075 NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (P/B BOOS PUMP) 2009-2011 02
014 11514598 NUT, HEX FLANGE, M12X1.75X12, 26 OD, 10, 7111M, (P/B BOOS PUMP) 2009-2011 01
015 11518075 BOLT, HFH, THD 22, OD 17, 8.8, GMW14C-PT, HDR POINT (P/B BOOS PUMP) 2009-2011 01
016 11588712 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S FLUID RSVR) 2009-2011 01
017 11589303 BOLT, HFH, M6X1X38, 30 THD, 14.2 OD, 8.8 STL, GMW3359, M-PT (P/B BOOS PUMP) 2009-2011 02
018 20804130 PUMP, P/B BOOS AUX (ACDelco #20804130) D 2009-2011 01
019 RESERVOIR, P/S FLUID (SEE GROUP 06.000 STEERING PUMP LINES FOR DETAILED ILLUSTRATED VIEW) 2009-2011
020 25926187 HOSE, P/B BOOS VAC (INCLS 21) DW (LLT) 2009-2011 01
021 CLAMP, P/B BOOS HSG (PART OF 20) 2009-2011
022 SPACER, P/B BOOS PUMP (*KIT1) 2009-2011
023 INSULATOR, P/B BOOS PUMP (*KIT1) 2009-2011
K01 25775922 INSULATOR KIT, P/B BOOS PUMP (INCLS 22, 23) (ON PUMP) D29 2009-2011 01
