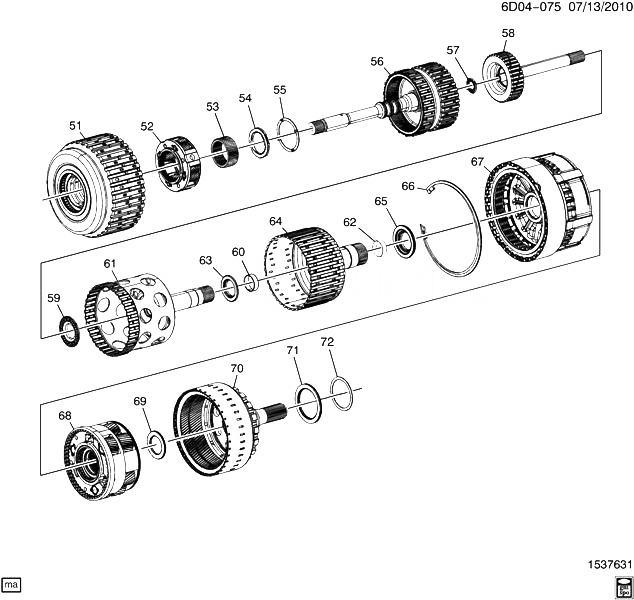

(6D04-075) 2010-2011 D АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYB) (6L50) CLUTCH ASSEMBLIES RELATED PARTS CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
051 CLUTCH, 1-2-3-4 3-5 REV (SEE GROUP 04.000 AUTOMATIC TRANSMISSION 1-2-3-4 3-5 REVERSE CLUTCH ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) 2010-2011
052 24225602 CARRIER, INPUT (ACDelco #24225602) DW (MYB) 2010-2011 01
053 24225289 GEAR, INPUT SUN (ACDelco #24225289) DW (MYB) 2010-2011 01
054 24224405 BEARING, INPUT SUN GR THR (ACDelco #24224405) D (MYB) 2010-2011 01
055 24232409 WASHER, INPUT SUN GR THR (ACDelco #24232409) DW (MYB) 2010-2011 01
056 CLUTCH, 4-5-6 (W/ TURB SHF) (SEE GROUP 04.000 AUTOMATIC TRANSMISSION 4-5-6 CLUTCH ASSEMBLY TURBINE SHAFT FOR DETAILED ILLUSTRATED VIEW) 2010-2011
057 24238905 BEARING, TURB SHFT THR (ACDelco #24238905) DW (MYB) 2010-2011 01
058 HUB, 4-5-6 CLU (W/ OUTPUT CARR SHF DPNR) (SEE GROUP 04.000 AUTOMATIC TRANSMISSION CLUTCH HUB ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) 2010-2011
059 24233732 BEARING, 4-5-6 CLU HUB THR (ACDelco #24233732) DW (MYB) 2010-2011 01
060 BUSHING, OUTPUT CARR INR SUN GR SHF (PART OF 64) 2010-2011
061 24252734 HUB, 1-2-3-4 CLU (W/OUTPUT CARR INR SUN GR SHF) (ACDelco #24252734) DW (MYB) 2010-2011 01
062 BUSHING, OUTPUT CARR INR SUN GR SHF (PART OF 64) 2010-2011
063 24237209 BEARING, 1-2-3-4 CLU HUB THR (ACDelco #24237209) DW (MYB) 2010-2011 01
064 24252735 HUB, 2-6 3-5/REV CLU (W/ OUTPUT CARR OTR SUN GR SHF) (INCLS 60, 62) (ACDelco #24252735) D (MYB) 2010-2011 01
065 24224164 BEARING, 2-6 3-5/REV CLU HUB THR (ACDelco #24224164) DW (MYB) 2010-2011 01
066 24225512 RING, CTR SUPT RET (ACDelco #24225512) DW (MYB) 2010-2011 01
067 24257088 SUPPORT, CTR (ACDelco #24257088) DW29 (MYB) 2010-2011 01
068 CARRIER, OUTPUT (SEE GROUP 04.000 AUTOMATIC TRANSMISSION OUTPUT CARRIER ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) 2010-2011
069 24225486 BEARING, OUTPUT CARR THR (ACDelco #24225486) DW (MYB) 2010-2011 01
070 SHAFT, OUTPUT (SEE GROUP 04.000 AUTOMATIC TRANSMISSION OUTPUT SHAFT ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) 2010-2011
071 24224668 BEARING, OUTPUT SHF THR (ACDelco #24224668) DW29 (MYB) 2010-2011 01
072 24251228 SEAL, A/TRNS CASE (O RING) DW 2010-2011 01
