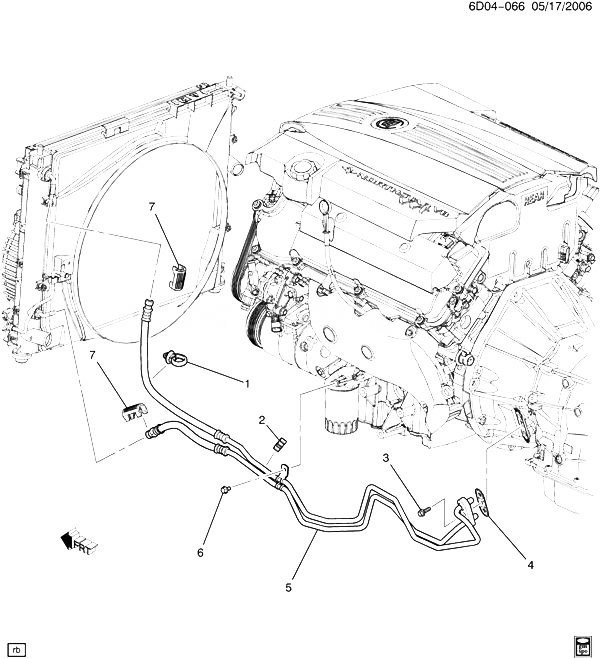

(6D04-066) 2011 DW29 МАСЛОПРОВОДЫ ОХЛАЖДЕНИЯ АВТОМАТИЧЕСКОЙ КОРОБКИ ПЕРЕДАЧ (LLT/3.6D, EXC V03,V92) CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 RETAINER, TRANS FLUID CLR PIPE (PART OF 5) (LLT) 2008-2011
001 RETAINER, TRANS FLUID CLR PIPE (PART OF 5) 2011-2011
002 10405874 CLIP, TRANS FLUID CLR PIPE (PART OF 5) (LESS MNTG TAB) (HOLDS TWO 9.5 DIA TUBES) DW29 (LLT) 2008-2011 AR
003 11515755 BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (TRANS FLUID CLR PIPE BRKT) (T/W 12345493 REPLCS 25534835) 2007-2011 01
004 15251488 SEAL, TRANS FLUID CLR PIPE FTG (PART OF 5) (SEALS TWO PIPES) (ACDelco #15251488) DW29 (LLT) 2011-2011 01
005 20977538 PIPE, TRANS FLUID CLR INL OTLT (INCLS 1, 2, 4) (ACDelco #20977538) DW29 (LLT) (EXC V03) 2010-2011 01
006 11515755 BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (TRANS FLUID CLR PIPE BRKT) (T/W 12345493 REPLCS 25534835) 2007-2011 01
007 15921020 CLIP, TRANS FLUID AUX CLR PIPE (CYLINDRICAL) (1 PIPE) D 2007-2011 02
