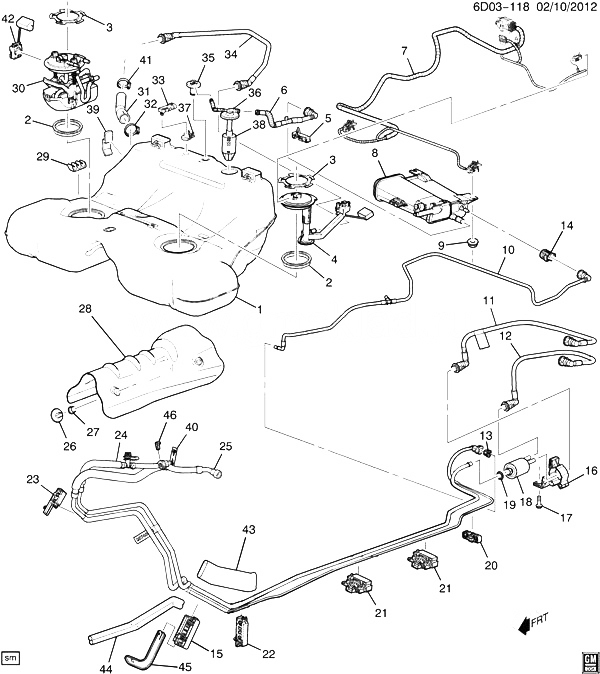

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25894461 |
TANK, FUEL (INCLS 6, 27, 35-39) |
DW29 (LLT) |
2011-2011 |
01 |
| 002 |
25901272 |
SEAL, FUEL SDR (PART OF 4, 30, 42) (ACDelco #G37) |
D |
2008-2011 |
AR |
| 003 |
25740096 |
CAM, FUEL SDR (ACDelco #TR23) |
DW29 (LLT) |
2011-2011 |
02 |
| 004 |
19151155 |
SENDER KIT, FUEL (INCLS 2) (SECONDARY MODULE) (ACDelco #SK1307) |
DW29 (LLT) |
2011-2011 |
01 |
| 005 |
25679252 |
RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) (3.162) |
D |
2008-2011 |
01 |
| 005 |
25679252 |
RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) |
D |
2008-2011 |
01 |
| 006 |
|
VALVE, F/TNK VENT (PART OF 1) |
|
2011-2011 |
|
| 007 |
25852585 |
HARNESS, FUEL SDR WRG (3.115) |
DW (LLT) |
2010-2011 |
01 |
| 007 |
25852585 |
HARNESS, FUEL SDR WRG |
DW (LLT) |
2010-2011 |
01 |
| 008 |
19259325 |
CANISTER, EVAP EMIS (LESS FILTER COVER) (ACDelco #19259325) (MUST ORDER T/W HARNESS 19257603) |
DW29 |
2010-2011 |
01 |
| 009 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EVAP EMIS CNSTR BRKT) |
|
2008-2011 |
01 |
| 010 |
15801811 |
PIPE, EVAP EMIS CNSTR PURGE (INCLS 14) (REAR EVAP LINE) |
DW (LLT) |
2010-2011 |
01 |
| 011 |
15801814 |
PIPE, FUEL FEED RR |
DW29 (LLT) |
2011-2011 |
01 |
| 012 |
15801816 |
PIPE, FUEL RTN RR |
DW29 (LLT) |
2011-2011 |
01 |
| 013 |
12522916 |
RETAINER KIT, EVAP EMIS PIPE (PART OF 24) (BLUE) (INCLS INST SHT RET) (USE WITH 5/16 TUBE, NYLON) (3.162) |
D |
2008-2011 |
01 |
| 014 |
12522916 |
RETAINER KIT, EVAP EMIS PIPE (PART OF 10) (BLUE) (INCLS INST SHT RET) (USE WITH 5/16 TUBE, NYLON) (3.162) |
D |
2008-2011 |
01 |
| 015 |
15223308 |
RETAINER, BRK FUEL PIPE (THIS SPACER HOLDS (4) FUEL/VAPOR LINES) |
D |
2008-2011 |
01 |
| 015 |
15223308 |
RETAINER, BRK FUEL PIPE (THIS SPACER HOLDS (4) FUEL/VAPOR LINES) (3.162) |
D |
2008-2011 |
01 |
| 016 |
25909398 |
RETAINER, FUEL FLTR |
DW29 (LLT, J56) |
2011-2011 |
01 |
| 016 |
25909398 |
RETAINER, FUEL FLTR |
DW29 (LLT, JE5, JL9) |
2011-2011 |
01 |
| 017 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (FUEL FLTR BRKT) |
|
2008-2011 |
01 |
| 018 |
25763176 |
FILTER, FUEL (ACDelco #GF897) |
DW29 (LLT) |
2010-2011 |
01 |
| 019 |
22514722 |
SEAL, FUEL FEED FRT PIPE (O RING) (PART OF PIPE, FEED RTN ASM BUNDLE) (7.35MM ID X 1.66MM THK) (PART OF 25) (ACDelco #217-452) |
D29 |
2008-2011 |
01 |
| 020 |
15223304 |
CLIP, FUEL FEED EVAP EMIS FRT PIPE (HOLDS FOUR LINES) (3.890) |
DW29 (LLT, JE5, JL9) |
2010-2011 |
01 |
| 021 |
15223307 |
RETAINER, BRK FUEL PIPE (2 FUEL/VAPOR LINES) |
D |
2008-2011 |
02 |
| 022 |
15223306 |
RETAINER, BRK FUEL PIPE (2 FUEL/VAPORS LINE 2 BRAKE LINES) (W/TREE) |
D |
2008-2011 |
01 |
| 023 |
15223305 |
CLIP, FUEL FEED EVAP EMIS FRT PIPE (HOLDS TWO LINES W/PRONG) |
DW29 (LLT, JE5, JL9) |
2008-2011 |
01 |
| 024 |
15869355 |
PIPE, EVAP EMIS CNSTR PURGE (INCLS 13, 46) (FRONT EVAP LINE) |
D29 (LLT, JE5, JL9) |
2009-2011 |
01 |
| 025 |
25973157 |
PIPE, FUEL FEED (INCLS 19, 40) |
DW29 (LLT, J56) |
2009-2011 |
01 |
| 026 |
25679213 |
PIN, F/TNK UPR SHLD |
DW29 (LLT) |
2011-2011 |
04 |
| 027 |
|
RETAINER, F/TNK SHLD (PART OF 1) |
|
2011-2011 |
|
| 028 |
25679209 |
SHIELD, F/TNK |
DW29 (LLT) |
2011-2011 |
01 |
| 029 |
25679252 |
RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) (3.162) |
D |
2008-2011 |
01 |
| 029 |
25679252 |
RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) |
D |
2008-2011 |
01 |
| 030 |
19181824 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 2) (ACDelco #M10200) |
DW29 (LLT) |
2008-2011 |
01 |
| 030 |
19181824 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 2) (3.107) (ACDelco #M10200) |
DW29 (LLT) |
2008-2011 |
01 |
| 031 |
15925742 |
HOSE, F/TNK FIL (INCLS 41) |
DW29 (LLT) |
2010-2011 |
01 |
| 032 |
25711370 |
CLAMP, F/TNK FIL HOSE (30-45MM CLAMP RANGE) |
DW (LLT) |
2008-2011 |
01 |
| 033 |
13502903 |
SENSOR, F/TNK PRESS (ACDelco #13502903) |
D |
2009-2011 |
01 |
| 034 |
15783932 |
PIPE, FUEL SDR FUEL FEED (INCLS CONN) (PIPE ATTACHES TO SENDING UNITS INSIDE OF GAS TANK) |
DW29 (LLT) |
2011-2011 |
01 |
| 035 |
|
VALVE, F/TNK VENT (PART OF 1) |
|
2011-2011 |
|
| 036 |
|
VALVE, F/TNK VENT (PART OF 1) |
|
2011-2011 |
|
| 037 |
|
RETAINER, FUEL PRESS REG (PART OF 1) |
|
2011-2011 |
|
| 038 |
|
VALVE, F/TNK VENT (PART OF 1) |
|
2011-2011 |
|
| 039 |
|
RETAINER, FUEL SDR (PART OF 1) |
|
2011-2011 |
|
| 040 |
|
LABEL, FUEL FEED PIPE WRNG (PART OF 25) |
|
2011-2011 |
|
| 041 |
09177063 |
CLAMP, F/TNK FIL HOSE (PART OF 31) (25-40MM CLAMP RANGE) |
DW29 (LLT) |
2011-2011 |
01 |
| 042 |
19151151 |
SENSOR KIT, FUEL LVL (INCLS 2) (ACDelco #SK1266) |
DW29 (LLT) |
2011-2011 |
01 |
| 043 |
19207924 |
PROTECTOR, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (1/2 X 3FT SECTIONS) (BULK REFLECTIVE THERMAL WRAP FOR BRAKE/FUEL/EMIS PIPES) (4.685) |
DW (LLT) |
2008-2011 |
AR |
| 043 |
19207924 |
PROTECTOR, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (1/2 X 3FT SECTIONS) (BULK REFLECTIVE THERMAL WRAP FOR BRAKE/FUEL/EMIS PIPES) |
DW (LLT) |
2008-2011 |
AR |
| 044 |
25964724 |
PROTECTOR, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE ( (4) PIPE THERMAL WRAP, APPROX 255MM IN LENGTH) (4.685) |
DW (LLT) |
2008-2011 |
01 |
| 044 |
25964724 |
PROTECTOR, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE ( (4) PIPE THERMAL WRAP, APPROX 255MM IN LENGTH) |
DW (LLT) |
2008-2011 |
01 |
| 045 |
25761218 |
BRACKET, FUEL PIPE |
D |
2008-2011 |
01 |
| 046 |
21992748 |
RETAINER, EVAP EMIS CNSTR HOSE (PART OF 24) (5/16 INCH QUICK CONNECT RETAINER CLIP) (3.162) |
DW29 (LLT, JE5, JL9) |
2009-2011 |
01 |
