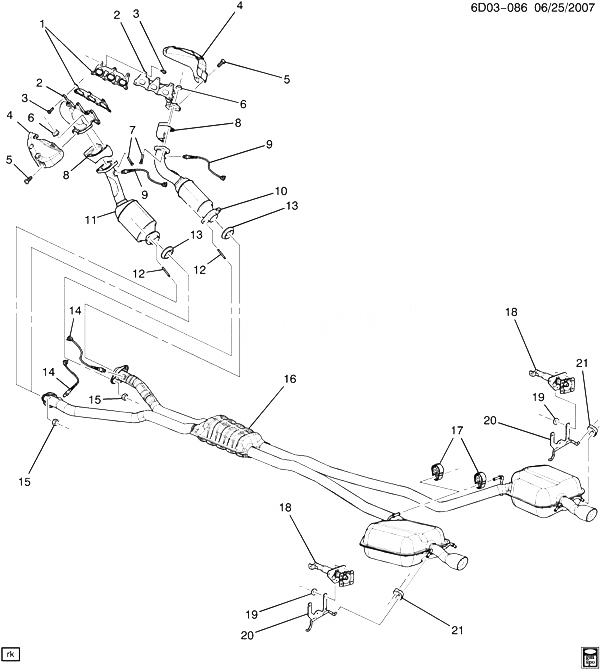

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12576262 |
GASKET, EXH MANIF |
DW (LLT, MYB, MX0, MX7) |
2010-2011 |
01 |
| 001 |
12608475 |
GASKET, EXH MANIF |
DW (LLT, MYB, MX0, MX7) |
2010-2011 |
01 |
| 002 |
12571101 |
MANIFOLD, EXH |
DW (LLT) |
2010-2011 |
01 |
| 002 |
12571102 |
MANIFOLD, EXH |
DW (LLT) |
2010-2011 |
01 |
| 003 |
11518860 |
BOLT, HFH, M8X1.25X30, 20.9 THD, 18 O.D., 10.9, GMW3179 CODE G, GM6194M (EXH MANIF H/SHLD) |
|
2008-2011 |
14 |
| 004 |
12617267 |
SHIELD, EXH MANIF HT |
DW (LLT) |
2010-2011 |
01 |
| 004 |
12580706 |
SHIELD, EXH MANIF HT |
DW (LLT) |
2010-2011 |
01 |
| 005 |
11517516 |
BOLT, HFH, M6X1X13, 9.5 THD, 14.2 OD, 9.8, 6280M, MACH, HDR-PT (EXH MANIF H/SHLD) |
|
2008-2011 |
06 |
| 006 |
15032594 |
NUT, CTLTC CONV (HEX M10X1.5) (ATTACH EXH MANIFOLD PIPE) (3.613) |
DW29 (LLT, JJB) |
2011-2011 |
04 |
| 007 |
11570494 |
STUD, CTLTC CONV (PART OF 10, 11) (M10X1.5X48, 28 THD, 17 OD) |
DW29 (LLT, JJB) |
2010-2011 |
02 |
| 008 |
25857958 |
SEAL, CTLTC CONV (PART OF 10, 11) (INLET SEAL (W/O SHIELD)) |
DW (LLT, JJB) |
2011-2011 |
01 |
| 009 |
12594935 |
SENSOR, HTD OXY (POSN 1) (IN EXH MANIFOLD/CROSSOVER) (ACDelco #213-3850) |
D29 (LLT) |
2008-2011 |
02 |
| 010 |
25939989 |
CONVERTER, 3WAY CTLTC (INCLS 7, 8, 12, 13) |
DW (LLT, JJB) |
2009-2011 |
01 |
| 011 |
25971634 |
CONVERTER, 3WAY CTLTC (INCLS 7, 8, 12, 13) |
DW29 (LLT, JJB) |
2010-2011 |
01 |
| 012 |
11569946 |
STUD, STRAIGHT, M8X1.25X38, M8X1.25X12, W/EXT SOC, 56 OAL, 10.9, GM6164M (PART OF 10, 11) |
|
2008-2011 |
02 |
| 013 |
15879730 |
SEAL, CTLTC CONV (PART OF 10, 11) (SPHERICAL OUTLET SEAL) |
DW29 (LLT, JJB) |
2009-2011 |
02 |
| 014 |
12616202 |
SENSOR, HTD OXY (POSN 2) (ACDelco #213-4575) |
DM, DW (LLT, MYB) |
2010-2011 |
01 |
| 014 |
12616203 |
SENSOR, HTD OXY (POSN 2) (ACDelco #213-4576) |
DW (LLT, MYB) |
2010-2011 |
01 |
| 015 |
11609746 |
NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (EXH MUFF) |
|
2008-2011 |
04 |
| 016 |
15927179 |
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) |
DW29 (LLT) |
2010-2011 |
01 |
| 016 |
15927179 |
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (3.701) |
DW29 (LLT) |
2010-2011 |
01 |
| 016 |
15927179 |
MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (3.701) |
DW29 (LLT) |
2010-2011 |
01 |
| 017 |
25711603 |
INSULATOR, EXH MUFF HNGR BRKT |
DW29 (LLT) |
2011-2011 |
02 |
| 018 |
|
ABSORBER, RR BPR ENGY (SEE GROUP 07.000 BUMPER/REAR FOR DETAILED ILLUSTRATED VIEW) (METAL E.A. UNIT) |
|
2008-2011 |
|
| 019 |
11518444 |
NUT, U, M8X1.25, 25X14.2, 3.4-6.3 PNL, 1050, 6173M (RR BPR ENGY ABS) |
|
2008-2011 |
06 |
| 020 |
15240254 |
BRACKET, EXH TAIL PIPE HNGR (INCLS 21) |
D29 |
2008-2011 |
01 |
| 020 |
25902027 |
BRACKET, EXH TAIL PIPE HNGR (INCLS 21) |
DW29 |
2010-2011 |
01 |
| 021 |
15284207 |
INSULATOR, EXH TAIL PIPE HNGR (PART OF 20) |
DW29 |
2011-2011 |
04 |
