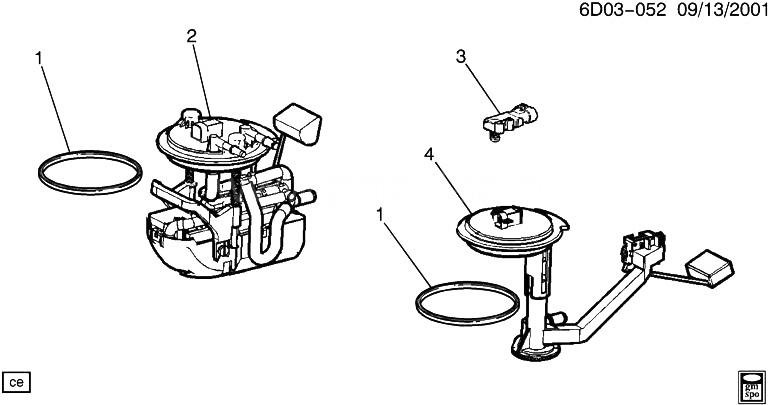

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25901272 |
SEAL, FUEL SDR (PART OF 2, 4) (ACDelco #G37) |
D |
2005-2011 |
AR |
| 002 |
19181824 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 1) (ACDelco #M10200) |
DW29 (LLT) |
2008-2011 |
01 |
| 002 |
19181824 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 1) (3.107) (ACDelco #M10200) |
DW29 (LLT) |
2008-2011 |
01 |
| 003 |
13502903 |
SENSOR, F/TNK PRESS (ACDelco #13502903) |
D |
2009-2011 |
01 |
| 004 |
19151155 |
SENDER KIT, FUEL (INCLS 1) (SECONDARY MODULE) (ACDelco #SK1307) |
DW29 (LLT) |
2011-2011 |
01 |
