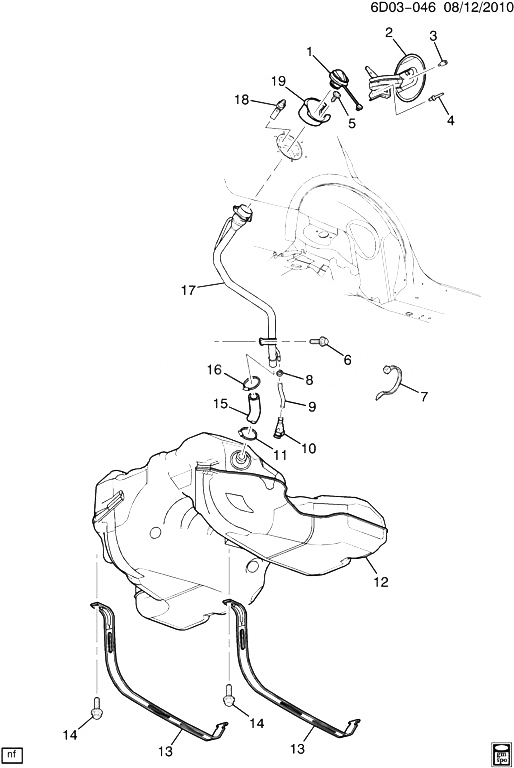

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15832215 |
CAP, F/TNK FIL (INCLUDES TETHER) (ACDelco #GT303) |
D |
2010-2011 |
01 |
| 002 |
15249887 |
DOOR, F/TNK FIL (INCLS 3) |
DW29 |
2010-2011 |
01 |
| 003 |
89047657 |
BUMPER, F/TNK FIL DR (PART OF 2) (HINGE) |
DW29 |
2010-2011 |
01 |
| 004 |
11519023 |
RIVET, POP SHANK 0.256, LENGTH 0.643, 0.189-0.268 GRIP RANGE, 1033 STL, (F/TNK FIL DR) |
|
2010-2011 |
02 |
| 005 |
11509374 |
BOLT, SCR HEX W/FL WA, SELF TAP, 4.2X1.41X16, 12.5 O.D. (F/TNK FIL PIPE) |
|
2010-2011 |
03 |
| 006 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (F/TNK FIL PIPE BRKT) |
|
2010-2011 |
01 |
| 007 |
12337820 |
STRAP, 15 TIE STRAP (F/TNK FIL PIPE) (ACDelco #12337820) |
|
2010-2011 |
01 |
| 008 |
01470030 |
CLAMP, WORM TYPE (11/16 TO 1 5/16) (PART OF 17) (ACDelco #1470030) |
|
2010-2011 |
01 |
| 009 |
|
HOSE, F/TNK VENT (PART OF 17) |
|
2010-2011 |
|
| 010 |
15638098 |
RETAINER, FUEL RTN PIPE FTG (PART OF 17) (NATURAL) (NYLON) (5/16) (7.9MM) |
D |
2010-2011 |
01 |
| 011 |
25711370 |
CLAMP, F/TNK FIL HOSE (30-45MM CLAMP RANGE) |
DW (LLT) |
2011-2011 |
01 |
| 012 |
|
TANK, FUEL (W/SDR) (SEE GROUP 03.000 FUEL SUPPLY SYSTEM FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2011 |
|
| 013 |
25679207 |
STRAP, F/TNK |
D |
2010-2011 |
02 |
| 014 |
11517720 |
BOLT, METRIC HEX FLANGE HD, M10X1.5X50 (F/TNK STRP) |
|
2010-2011 |
02 |
| 015 |
15925742 |
HOSE, F/TNK FIL (INCLS 16) |
DW29 (LLT) |
2010-2011 |
01 |
| 016 |
09177063 |
CLAMP, F/TNK FIL HOSE (PART OF 15) (25-40MM CLAMP RANGE) |
DW29 (LLT) |
2011-2011 |
01 |
| 017 |
20789052 |
PIPE, F/TNK FIL (INCLS 8-10) |
DW29 |
2010-2011 |
01 |
| 018 |
20912532 |
SPRING, F/TNK FIL DR (INCLS PLUNGER) |
DW29 |
2011-2011 |
01 |
| 019 |
25716556 |
HOUSING, F/TNK FIL PIPE |
DW29 |
2010-2011 |
01 |
