| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

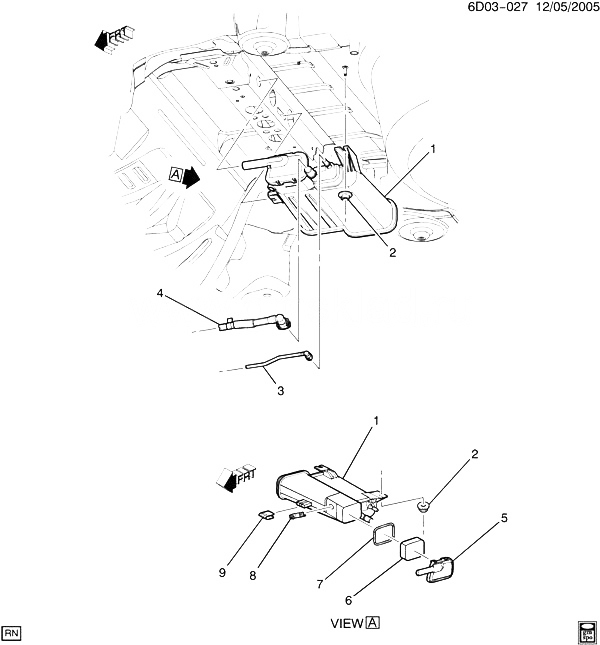

| 001 |
19259325 |
CANISTER, EVAP EMIS (INCLS 9) (LESS FILTER COVER) (ACDelco #19259325) (MUST ORDER T/W HARNESS 19257603) |
DW29 |
2010-2011 |
01 |
| 002 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EVAP EMIS CNSTR BRKT) |
|
2005-2011 |
02 |
| 003 |
|
PIPE, EVAP EMIS CNSTR PURGE (SEE GROUP 03.000 FUEL SUPPLY SYSTEM FOR DETAILED ILLUSTRATED VIEW) (REAR EVAP LINE) |
|
2005-2011 |
|
| 004 |
|
VALVE, F/TNK VENT (SEE GROUP 03.000 FUEL SUPPLY SYSTEM FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2011 |
|
| 005 |
|
COVER, EVAP EMIS CNSTR AIR INL OPG (*KIT1) |
|
2008-2011 |
|
| 006 |
|
FILTER, EVAP EMIS CNSTR AIR INL (*KIT1) |
|
2008-2011 |
|
| 007 |
|
SEAL, EVAP EMIS CNSTR AIR INL OPG CVR (*KIT1) |
|
2008-2011 |
|
| 008 |
22865590 |
VALVE, EVAP EMIS CNSTR VENT SOL (W/COVER MAY NEED TO USE MATING CONN W/LEADS 13579002) (ACDelco #22865590) (MUST USE T/W HARNESS 19257603) |
DW29 |
2011-2011 |
01 |
| 009 |
|
RETAINER, EVAP EMIS CNSTR (PART OF 1) |
|
2008-2011 |
|
| K01 |
19177364 |
FILTER KIT, EVAP EMIS CNSTR (W/ SEAL) (INCLS 5-7) (ACDelco #215-656) |
DW29 |
2007-2011 |
01 |
