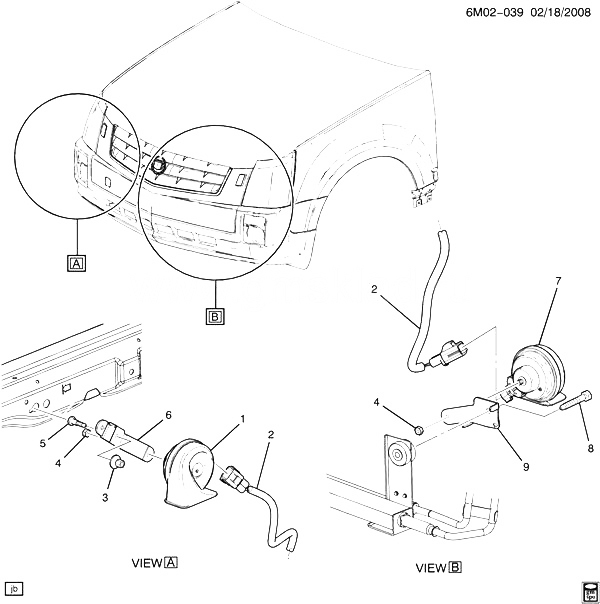

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25824314 |
HORN, 500 HZ (INCLS 3-6) (ACDelco #D1956F) |
D29 (U03) |
2007-2011 |
01 |
| 002 |
|
HARNESS, FWD LP WRG (SEE GROUP 02.000 WIRING HARNESS/FRONT LAMPS FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2011 |
|
| 003 |
|
NUT, HORN (PART OF 1) |
|
2007-2011 |
|
| 004 |
|
NUT, HORN BRKT (PART OF 1, 7) |
|
2007-2011 |
|
| 005 |
|
BOLT, HORN BRKT REINF (PART OF 1) |
|
2007-2011 |
|
| 006 |
|
BRACKET, HORN (PART OF 1) |
|
2007-2011 |
|
| 007 |
25856296 |
HORN, 400 HZ (INCLS 4, 8, 9) (W/ MOUNTING BOLT) (ACDelco #D1962F) |
D29 (U03) |
2007-2011 |
01 |
| 008 |
11516700 |
BOLT, HEX, W/CON WA, M8X1.25X55, 36THD, 24 O.D., AC PT, 9.8, 7114M (PART OF 7) |
|
2007-2011 |
01 |
| 009 |
|
BRACKET, HORN (PART OF 7) |
|
2007-2011 |
|
