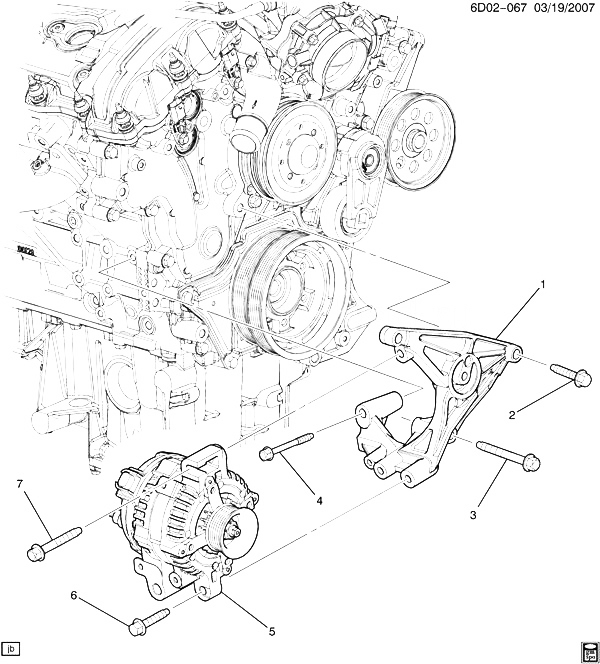

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12597648 |
BRACKET, GEN DRV BELT TENSR (2.277) |
DW (LLT) |
2010-2011 |
01 |
| 001 |
12597648 |
BRACKET, GEN DRV BELT TENSR |
DW (LLT) |
2010-2011 |
01 |
| 002 |
11518628 |
BOLT, HVY HEX ACORN FLG HD, M10X1.5X50, GMW25M (10.9) STL, GMW3358 (GEN BRKT) |
|
2008-2011 |
02 |
| 003 |
11518636 |
BOLT, HFH, M10X1.5X90, 25.9 THD, 22.3 OD, 10.9, GMW3359, 7.5 MAT-PT (GEN BRKT) |
|
2008-2011 |
01 |
| 004 |
11588733 |
BOLT, HFH, M8X1.25X80.8, 21.6 THD, 18 OD, 8.8 STL, GMW3359 (GEN BRKT) |
|
2009-2011 |
01 |
| 005 |
25751146 |
GENERATOR, (ACDelco #25751146) |
DW (LLT, KG4) |
2010-2011 |
01 |
| 006 |
11518628 |
BOLT, HVY HEX ACORN FLG HD, M10X1.5X50, GMW25M (10.9) STL, GMW3358 (GEN) |
|
2008-2011 |
01 |
| 007 |
11518633 |
BOLT, HFH, M10X1.5X75, 26 THD, 22.3 OD, 10.9, GMW3359, MAT- POINT. (GEN) |
|
2008-2011 |
02 |
