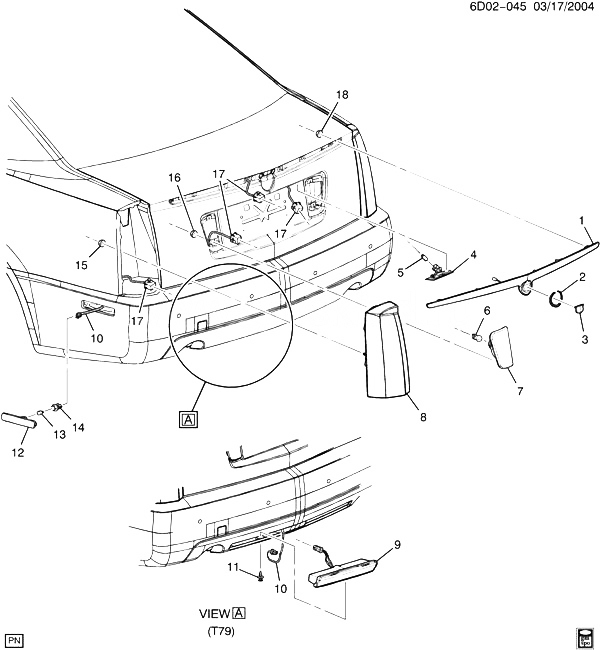

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
22766473 |
LAMP, HIGH MT STOP (INCLS 2, 3) |
DW29 |
2010-2011 |
01 |
| 002 |
25767581 |
EMBLEM, HIGH MT STOP LP (PART OF 1) (CHROME) (WREATH) (MAY NEED TO ORDER T/W CREST 25767582) |
D29 |
2005-2011 |
01 |
| 003 |
25767582 |
EMBLEM, HIGH MT STOP LP (PART OF 1) (CHROME) (CREST) (MAY NEED TO ORDER T/W WREATH 25767581) |
D29 |
2005-2011 |
01 |
| 004 |
25754002 |
LAMP, RR LIC PLT (INCLS 5) |
DW |
2010-2011 |
01 |
| 004 |
25754003 |
LAMP, RR LIC PLT (INCLS 5) |
DW |
2010-2011 |
01 |
| 005 |
09442399 |
BULB, (W5W) (PART OF 4) (ACDelco #W5W) |
|
2005-2011 |
02 |
| 006 |
12450108 |
BULB, TRADE #3157KX (PART OF 7) (2.679) (ACDelco #3157KX) (LONGER LIFE KRYPTON) |
|
2005-2011 |
02 |
| 007 |
10377140 |
LAMP, B/U (INCLS 6) (INCLS B/U LAMP SOCKET) |
DW |
2010-2011 |
01 |
| 007 |
10377141 |
LAMP, B/U (INCLS 6) (INCLS B/U LAMP SOCKET) |
DW |
2010-2011 |
01 |
| 008 |
20782676 |
LAMP, TAIL |
D29 (EXC T79) |
2008-2011 |
01 |
| 008 |
20782675 |
LAMP, TAIL |
D29 (EXC T79) |
2008-2011 |
01 |
| 008 |
20782673 |
LAMP, TAIL |
D29 (T79) (EXPORT) |
2005-2011 |
01 |
| 008 |
20782674 |
LAMP, TAIL |
D29 (T79) (EXPORT) |
2005-2011 |
01 |
| 009 |
09015554 |
LAMP, RR FOG |
DW (T79) |
2011-2011 |
01 |
| 009 |
09015556 |
LAMP, RR FOG |
DW (T79) |
2011-2011 |
01 |
| 010 |
|
HARNESS, B/U ALARM WRG (SEE GROUP 02.000 SENSOR SYSTEM/REAR OBJECT FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2011 |
|
| 011 |
11518017 |
RETAINER, 25 LG, 20.5 OD, 8.0 HOLE, 6.2-8.2 PNL, NYLON, 6/6, BLK (RR FOG LP (PUSH IN)) |
|
2005-2011 |
04 |
| 012 |
25754025 |
LAMP, RR SI MKR (INCLS 13, 14) |
DW29 (EXC T79) |
2011-2011 |
01 |
| 012 |
25754026 |
LAMP, RR SI MKR (INCLS 13, 14) |
DW29 (EXC T79) |
2011-2011 |
01 |
| 012 |
25758131 |
LAMP, RR SI MKR (INCLS 13, 14) |
DW29 (T79) (EXPORT) |
2011-2011 |
01 |
| 012 |
25758132 |
LAMP, RR SI MKR (INCLS 13, 14) |
DW29 (T79) (EXPORT) |
2011-2011 |
01 |
| 013 |
09442399 |
BULB, (W5W) (PART OF 12) (ACDelco #W5W) |
|
2005-2011 |
02 |
| 014 |
16524383 |
SOCKET, RR SI MKR LP (PART OF 12) (2.714) |
DW (EXC T79, UFT, UJM) |
2010-2011 |
02 |
| 015 |
11517736 |
NUT, HEX, M6X1, 5.7 HIGH, 24 OD, 9, 7111M, W/2.5 THK SEALING WA (T/LP) |
|
2005-2011 |
06 |
| 016 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (B/U LP) |
|
2005-2011 |
04 |
| 017 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2011 |
|
| 018 |
11588652 |
NUT, HEX FLG, 8MM, 25.4 O.D., 8 THK, 1050, GMW3359 (HIGH MT S/LP) |
|
2005-2011 |
04 |
