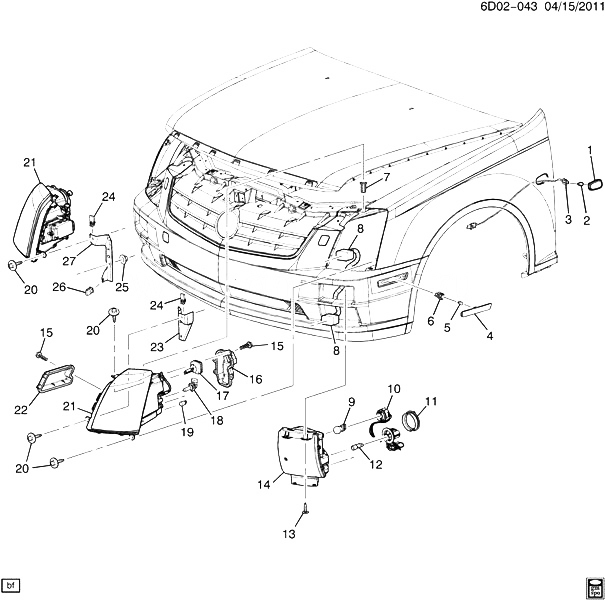

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 003 |
15850378 |
HARNESS, AUX MKR LP WRG (SEE GROUP 02.000 WIRING HARNESS/FRONT LAMPS FOR DETAILED ILLUSTRATED VIEW) |
D29 |
2005-2011 |
02 |
| 004 |
25754014 |
LAMP, FRT SI MKR (INCLS 5, 6) |
D29 |
2005-2011 |
01 |
| 004 |
25754015 |
LAMP, FRT SI MKR (INCLS 5, 6) |
D29 |
2005-2011 |
01 |
| 005 |
09421330 |
BULB, TRADE#194, 12V, 2CP (PART OF 4) (ACDelco #L194) |
|
2005-2011 |
02 |
| 006 |
16524383 |
SOCKET, FRT SI MKR LP (PART OF 4) (2.714) |
D29 |
2005-2011 |
02 |
| 007 |
11518908 |
NUT, HDLP (M6X1X15) (7.840) |
D29 |
2005-2011 |
02 |
| 008 |
|
HARNESS, FWD LP WRG (SEE GROUP 02.000 WIRING HARNESS/FRONT LAMPS FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2011 |
|
| 009 |
11513798 |
BULB, FRT FOG LP (PART OF 14) (TRADE # H3) (ACDelco #H3) |
DW29 |
2005-2011 |
01 |
| 010 |
|
HARNESS, FRT FOG LP WRG (PART OF 14) |
|
2010-2011 |
|
| 011 |
16530873 |
COVER, HDLP BULB ACC (PART OF 14) |
DW29 |
2011-2011 |
02 |
| 012 |
10351661 |
BULB, TRADE # 3757NAK (PART OF 14) (ACDelco #3757NAK) |
|
2005-2011 |
01 |
| 013 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (FRT T/SIG LP) |
|
2005-2011 |
08 |
| 014 |
20972730 |
LAMP, FRT T/SIG (INCLS 9-12) ( 9 FASTENING POINTS) (W/ FOG LAMP) |
DW29 |
2005-2011 |
01 |
| 014 |
20972731 |
LAMP, FRT T/SIG (INCLS 9-12) |
DW29 |
2005-2011 |
01 |
| 015 |
|
BOLT, HDLP CPSL (PART OF 21) |
|
2010-2011 |
|
| 016 |
16532191 |
COVER, HDLP BULB ACC (PART OF 21) |
D29 |
2005-2011 |
01 |
| 016 |
16532192 |
COVER, HDLP BULB ACC (PART OF 21) |
D29 |
2005-2011 |
01 |
| 017 |
92095787 |
BULB, LOW BEAM HDLP (PART OF 21) (TRADE #H11) (ACDelco #92095787) |
DW29 (EXC TB8, T4F, T94) |
2010-2011 |
02 |
| 018 |
01999437 |
BULB, HDLP (HIGH BEAM) (PART OF 21) (TRADE #9005LL) (ACDelco #9005LL) (LONGER LIFE) |
DW29 |
2010-2011 |
02 |
| 019 |
13500812 |
BULB, FRT POSN LP (PART OF 21) (TRADE #W5WLL) (2.700) (ACDelco #13500812) |
DW29 |
2011-2011 |
02 |
| 020 |
11518094 |
BOLT, HES W/FL WA, M6X1X21, 11.75 THD, 24 OD, 9.8, 7114M, MACH, DOG-PT (HDLP) |
|
2005-2011 |
06 |
| 021 |
20836120 |
HEADLAMP, (INCLS 15-19, 22) |
DW29 (EXC TB8, T4F, T94) |
2010-2011 |
01 |
| 021 |
20836121 |
HEADLAMP, (INCLS 15-19, 22) |
DW29 (EXC TB8, T4F, T94) |
2010-2011 |
01 |
| 001 |
15930599 |
LAMP, FRT SI T/SIG (INCLS 2) |
DW |
2010-2011 |
02 |
| 002 |
01999382 |
BULB, (PART OF 1) (ACDelco #W5WLL) (LONGER LIFE) |
|
2006-2011 |
01 |
| 022 |
|
COVER, HDLP BALLAST (PART OF 21) |
|
2010-2011 |
|
| 022 |
|
COVER, HDLP BALLAST (PART OF 21) |
|
2010-2011 |
|
| 023 |
25754011 |
BRACKET, HDLP |
D29 |
2005-2011 |
01 |
| 024 |
11609385 |
NUT, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (HDLP BRKT) |
|
2005-2011 |
02 |
| 025 |
11517397 |
NUT, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (FRT BPR ENGY ABS) |
|
2005-2011 |
08 |
| 026 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (HDLP BRKT) |
|
2005-2011 |
01 |
| 027 |
25754010 |
BRACKET, HDLP |
D29 |
2005-2011 |
01 |
