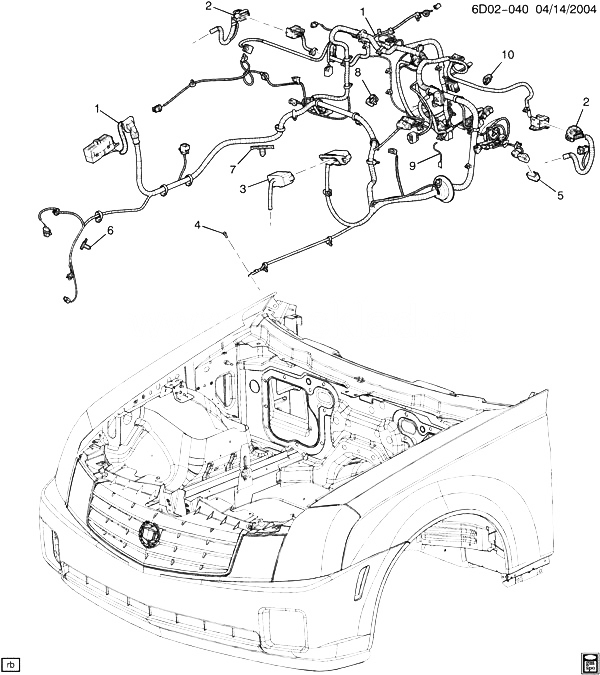

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25899655 |
HARNESS, I/P WRG (INCLS 5-10) |
DW29 (JJD, YQ4) (EXC UV6) |
2011-2011 |
01 |
| 001 |
20966593 |
HARNESS, I/P WRG (INCLS 5-10) |
DW29 (YQ1) |
2009-2011 |
01 |
| 001 |
20966595 |
HARNESS, I/P WRG (INCLS 5-10) |
DW29 (YQ6) |
2010-2011 |
01 |
| 001 |
20966589 |
HARNESS, I/P WRG (INCLS 5-10) |
DW29 (UV6, YQ4) |
2011-2011 |
01 |
| 001 |
20966592 |
HARNESS, I/P WRG (INCLS 5-10) |
DW29 (YQ2) (EXC T4F) |
2010-2011 |
01 |
| 001 |
20831304 |
HARNESS, I/P WRG (INCLS 5-10) |
DW29 (JJD, T4F, YQ2) |
2010-2011 |
01 |
| 002 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2011 |
|
| 003 |
|
HARNESS, ENG WRG (SEE GROUP 02.000 WIRING HARNESS/ENGINE FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2011 |
|
| 004 |
11516630 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (I/P WRG HARN) |
|
2009-2011 |
01 |
| 005 |
|
COVER, ACSRY WRG J/BLK (PART OF 1) |
|
2009-2011 |
|
| 006 |
12186353 |
RETAINER, WHL SPD SEN WRG HARN CONN (PART OF 1) (BLACK) (7.00/6.25 DIA, SLIDING) |
DW29 (LLT) |
2010-2011 |
01 |
| 007 |
|
CLIP, BAT CBL (PART OF 1) |
|
2009-2011 |
|
| 008 |
|
CLIP, BODY I/P WRG HARN (PART OF 1) |
|
2009-2011 |
|
| 009 |
|
CLIP, I/P WRG HARN (PART OF 1) |
|
2009-2011 |
|
| 010 |
|
CLIP, BODY I/P WRG HARN (PART OF 1) |
|
2009-2011 |
|
