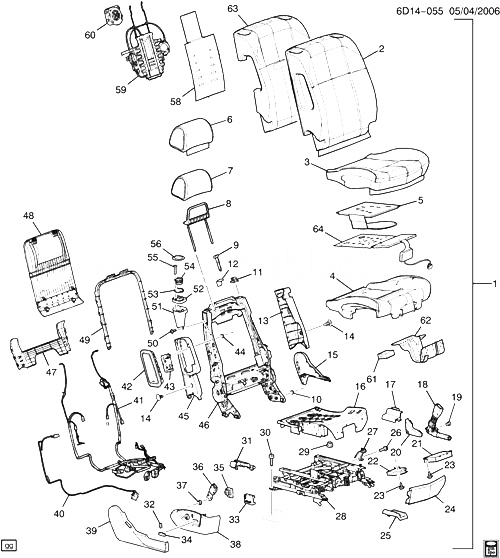

(6D14-055) - 2010 DW29 СИДЕНЬЕ ПАССАЖИРА (VENTED/HEATED KB6) CADILLAC - STS 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15885308 SEAT, PASS (INCLS 2-56, 58-64) (EBONY) DW (AL2, AQ9, AX4, KB6, UY5, 01G) (EXC KA1, MTF) (EXPORT) 2010-2010 01
001 15885309 SEAT, PASS (INCLS 2-56, 58-64) (CASHMERE) DW (AL2, AQ9, AX4, KB6, UY5, 01D) (EXC KA1, MTF) (EXPORT) 2010-2010 01
001 15885310 SEAT, PASS (INCLS 2-56, 58-64) (GRAY) DW (AL2, AQ9, AX4, KB6, UY5, 02K) (EXC KA1, MTF) (EXPORT) 2010-2010 01
001 15885334 SEAT, PASS (INCLS 2-56, 58-64) (EBONY) DW (AL2, AQ9, KB6, UY5, 01G) (EXC AX4, KA1) 2010-2010 01
001 15885335 SEAT, PASS (INCLS 2-56, 58-64) (CASHMERE) DW (AL2, AQ9, EBS, KB6, UY5, 01D) (EXC AX4, KA1) 2010-2010 01
001 15885336 SEAT, PASS (INCLS 2-56, 58-64) (GRAY) DW (AL2, AQ9, KB6, UY5, 02K) (EXC AX4, KA1) 2010-2010 01
001 15885433 SEAT, PASS (INCLS 2-56, 58-64) (GRAY) DW (AL2, AQ9, AX4, EBS, KB6, UX8, 02K) (EXC KA1) (EXPORT) 2010-2010 01
001 15885434 SEAT, PASS (INCLS 2-56, 58-64) (EBONY) DW (AL2, AQ9, AX4, KB6, UX8, 01G) (EXC KA1) (EXPORT) 2010-2010 01
001 15885435 SEAT, PASS (INCLS 2-56, 58-64) (CASHMERE) DW (AL2, AQ9, AX4, EBS, KB6, UX8, 01D) (EXC KA1) (EXPORT) 2010-2010 01
001 15929634 SEAT, PASS (INCLS 2-56, 58-64) (CASHMERE) DW (AL2, AQ9, KB6, UY5, 01D) (EXC AX4, KA1) 2010-2010 01
001 15929635 SEAT, PASS (INCLS 2-56, 58-64) (EBONY) DW (AL2, AQ9, KB6, UY5, 01G) (EXC AX4, KA1, MTF) 2010-2010 01
001 15929642 SEAT, PASS (INCLS 2-56, 58-64) (CASHMERE) DW (AL2, AQ9, AX4, KB6, 01D) (EXC KA1) (EXPORT) 2010-2010 01
001 15929643 SEAT, PASS (INCLS 2-56, 58-64) (EBONY) DW (AL2, AQ9, AX4, KB6, UY5, 01G) (EXC KA1) (EXPORT) 2010-2010 01
001 15929644 SEAT, PASS (INCLS 2-56, 58-64) (GRAY) DW (AL2, AQ9, AX4, KB6, UY5, 02K) (EXC KA1) (EXPORT) 2010-2010 01
001 15929646 SEAT, PASS (INCLS 2-56, 58-64) (GRAY) DW (AL2, AQ9, AX4, KB6, UX8, 02K) (EXC KA1) (EXPORT) 2010-2010 01
001 15929647 SEAT, PASS (INCLS 2-56, 58-64) (EBONY) DW (AL2, AQ9, AX4, KB6, UX8, 01G) (EXC KA1, MTF) (EXPORT) 2010-2010 01
001 15929648 SEAT, PASS (INCLS 2-56, 58-64) (CASHMERE) DW (AL2, AQ9, AX4, KB6, UX8, 01D) (EXC KA1) (EXPORT) 2010-2010 01
001 25776010 SEAT, PASS (INCLS 2-56, 58-64) (GRAY) DW (AL2, AQ9, KB6, UX8, 02K) (EXC AX4, KA1) 2010-2010 01
001 25776011 SEAT, PASS (INCLS 2-56, 58-64) (CASHMERE) DW (AL2, AQ9, KB6, UX8, 01D) (EXC AX4, KA1) 2010-2010 01
001 25776012 SEAT, PASS (INCLS 2-56, 58-64) (EBONY) DW (AL2, AQ9, KB6, UX8, 01G) (EXC AX4, KA1) 2010-2010 01
002 19122941 COVER, P/SEAT BK CUSH (EBONY) DW (AL2, AQ9, KB6, UY5, 01G) (EXC KA1) 2010-2010 01
002 19122943 COVER, P/SEAT BK CUSH (CASHMERE) DW (AL2, AQ9, UY5, 01D) (EXC KA1) 2010-2010 01
002 19122945 COVER, P/SEAT BK CUSH (GRAY) DW (AL2, AQ9, EBS, KB6, UY5, 02K) (EXC KA1) 2010-2010 01
002 19124073 COVER, P/SEAT BK CUSH (GRAY) DW (AL2, AQ9, EBS, KB6, UX8, 02K) (EXC KA1) 2010-2010 01
002 19124074 COVER, P/SEAT BK CUSH (EBONY) DW (AL2, AQ9, KB6, UX8, 01G) (EXC KA1) 2010-2010 01
002 19124075 COVER, P/SEAT BK CUSH (CASHMERE) DW (AL2, AQ9, EBS, KB6, UX8, 01D) (EXC KA1) 2010-2010 01
002 19124081 COVER, P/SEAT BK CUSH (GRAY) DW (AL2, AQ9, KB6, UX8, 02K) (EXC KA1) 2010-2010 01
002 19124082 COVER, P/SEAT BK CUSH (EBONY) (W/O BOSE) DW (AL2, AQ9, KB6, 01G) (EXC KA1) 2010-2010 01
002 19124083 COVER, P/SEAT BK CUSH (CASHMERE) DW (AL2, AQ9, KB6, UX8, 01D) (EXC KA1) 2010-2010 01
002 88995086 COVER, P/SEAT BK CUSH (CASHMERE) DW (AL2, AQ9, KB6, UY5, 01D) (EXC KA1) 2010-2010 01
002 88995087 COVER, P/SEAT BK CUSH (EBONY) (W/BOSE) DW (AL2, AQ9, KB6, UY5, 01G) (EXC KA1) 2010-2010 01
002 88995269 COVER, P/SEAT BK CUSH (GRAY) DW (AL2, AQ9, KB6, UY5, 02K) (EXC KA1) 2010-2010 01
003 19122965 COVER, P/SEAT CUSH (EBONY) DW (AL2, AQ9, KB6, 01G) (EXC KA1) 2010-2010 01
003 19122967 COVER, P/SEAT CUSH (CASHMERE) DW (AL2, AQ9, KB6, 01D) (EXC KA1) 2010-2010 01
003 19122969 COVER, P/SEAT CUSH (GRAY) DW (AL2, AQ9, KB6, 02K) (EXC KA1) 2010-2010 01
003 88995092 COVER, P/SEAT CUSH (CASHMERE) DW (KB6, 01D) (EXC KA1) 2010-2010 01
003 88995093 COVER, P/SEAT CUSH (EBONY) DW (KB6, 01G) (EXC KA1) 2010-2010 01
003 88995267 COVER, P/SEAT CUSH (GRAY) (14.924) DW (KB6, 02K) (EXC KA1) 2010-2010 01
004 PAD, P/SEAT CUSH (ЧАСТЬ OF 64) 2010-2010
005 88993045 ПОДОГРЕВАТЕЛЬ, P/SEAT CUSH (ЧАСТЬ OF 64) DW (KB6) (EXC KA1) 2006-2010 01
006 19122912 COVER, P/SEAT H/RST (EBONY) DW (EBS, 01G) 2010-2010 01
006 19122913 COVER, P/SEAT H/RST (CASHMERE) DW (EBS, 01D) 2010-2010 01
006 19122914 COVER, P/SEAT H/RST (GRAY) DW (EBS, 02K) 2010-2010 01
006 88995098 COVER, P/SEAT H/RST (CASHMERE) DW (01D) 2010-2010 01
006 88995099 COVER, P/SEAT H/RST (EBONY) DW (01G) 2010-2010 01
006 88995270 COVER, P/SEAT H/RST (GRAY) DW (02K) 2010-2010 01
007 88952658 PAD, P/SEAT H/RST D29 2006-2010 01
008 88897670 SUPPORT, P/SEAT H/RST D29 2008-2010 01
009 88994546 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) DW (01G) 2010-2010 01
009 88994608 GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) (11.625) DW (02K) 2010-2010 01
009 88994609 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) (11.625) DW (01D) 2010-2010 01
009 88994611 GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) DW (02K) 2010-2010 01
009 88994612 GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) (11.625) DW (01D) (EXPORT) 2010-2010 01
009 88994613 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) (11.625) DW (01G) 2010-2010 02
012 88994323 CAP, P/SEAT H/RST GDE DW 2006-2010 01
012 88994324 CAP, P/SEAT H/RST GDE DW 2006-2010 01
013 88992768 PANEL, P/SEAT BK CUSH FIN (FILLER) (INBOARD) DW 2006-2010 01
014 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT BK CUSH FIN PNL (PUSH IN)) 2006-2010 07
016 88952676 РАМА, P/SEAT CUSH DW 2006-2010 01
018 10367763 BELT, P/SEAT (BKL SI) (CASHMERE) DW (AX4, 01D) (EXPORT) 2010-2010 01
018 10367764 BELT, P/SEAT (BKL SI) (GRAY) DW (AX4, 02K) (EXPORT) 2010-2010 01
018 10367765 BELT, P/SEAT (BKL SI) (EBONY) DW (AX4, 01G, 02H) (EXPORT) 2010-2010 01
018 19181817 BELT KIT, P/SEAT (BKL SI) (TITANIUM) D (01C) 2010-2010 01
018 89024406 BELT KIT, P/SEAT (BKL SI) (CASHMERE) DW (01D) (EXC AX4) 2010-2010 01
018 89024408 BELT KIT, P/SEAT (BKL SI) (EBONY) DW (01G, 02H) (EXC AX4) 2010-2010 01
019 11517781 NUT-HEX SPL, M10X1.5X20.2, 9, 4345M, 6175M (P/SEAT BELT TR CVR) 2006-2010 01
020 88994292 COVER, P/SEAT BELT OPG TR (RETR SI) (CASHMERE) DW (01D) 2010-2010 01
020 88994296 COVER, P/SEAT BELT OPG TR (RETR SI) (GRAY) DW (02K) 2010-2010 01
020 88994298 COVER, P/SEAT BELT OPG TR (RETR SI) (EBONY) DW (01G) 2010-2010 01
022 88993047 ВЕНТИЛЯТОР, P/SEAT CUSH VENTILATION HEAT COOL DW (KB6) 2006-2010 01
023 11509428 БОЛТ/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (P/SEAT) (8.977) 2006-2010 06
024 19122908 COVER, P/SEAT CUSH FRT (CASHMERE) DW (01D) 2010-2010 01
024 19122909 COVER, P/SEAT CUSH FRT (EBONY) DW (01G) 2010-2010 01
024 19122910 COVER, P/SEAT CUSH FRT (GRAY) DW (02K) 2010-2010 01
026 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (P/SEAT RECL LWR FIN CVR) 2006-2010 01
027 88994342 BRACKET, P/SEAT RECL LWR FIN CVR DW 2006-2010 01
028 88992728 ADJUSTER, P/SEAT DW 2006-2010 01
030 11609257 БОЛТ, PAN HD, TORX, M12X1.75X34, 9.8 STEEL, GMW3179 (P/SEAT ADJR (W/BELT)) (8.907) 2006-2010 02
033 89042262 SWITCH, P/SEAT ADJR RECL (11.588) D29 2007-2010 01
040 15218855 HARNESS, INFL RST WRG D29 (IL2, IL3) 2006-2010 02
041 88996096 HARNESS, P/SEAT WRG (BASE, SUP) DW (EXC AL2) 2007-2010 01
041 88996097 HARNESS, P/SEAT WRG (LUMBAR, HEAT, SUP) DW 2006-2010 01
041 88996099 HARNESS, P/SEAT WRG DW (AL2, AQ9, AX4, IL2, KB6, UY5) (EXC KA1) 2010-2010 01
042 15939007 МОДУЛЬ, P/SEAT SI INFL RST (CASHMERE) DW (01D) 2010-2010 01
042 15939009 МОДУЛЬ, P/SEAT SI INFL RST (GRAY) D29 (02K) 2010-2010 01
043 88993161 ШЛАНГИ, INFL RST F/SEAT SI MDL DW 2006-2010 01
043 88993162 ШЛАНГИ, INFL RST F/SEAT SI MDL DW 2006-2010 01
044 11516075 ГАЙКА, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (P/SEAT SI INFL RST) 2006-2010 04
046 88994921 РАМА, P/SEAT BK CUSH (W/O MEMORY) (W/RECL MOTOR) DW 2010-2010 01
049 88993281 RETAINER, D/SEAT BK CUSH FIN PNL (TRIM RING) (14.924) DW 2006-2010 01
050 11609406 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (P/SEAT BK CUSH FRM) 2006-2010 02
053 SUPPORT, P/SEAT H/RST SPKR HSG 2006-2010
054 SPEAKER, P/SEAT H/RST 2006-2010
055 БОЛТ, P/SEAT BK CUSH FRM 2010-2010
056 GRILLE, P/SEAT H/RST SPKR 2006-2010
058 19124085 ПОДОГРЕВАТЕЛЬ, P/SEAT BK CUSH DW (KB6) (EXC KA1) 2006-2010 01
059 88993050 LUMBAR SUB, P/SEAT D29 2006-2010 01
060 88993048 ВЕНТИЛЯТОР, P/SEAT BACK VENTILATION HEAT COOL DW (KB6) 2006-2010 01
062 BRACKET, P/SEAT CUSH FRM FRT 2006-2010
064 19123721 МОДУЛЬ KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 4, 5) DW (KB6) (EXC KA1) 2006-2010 01
