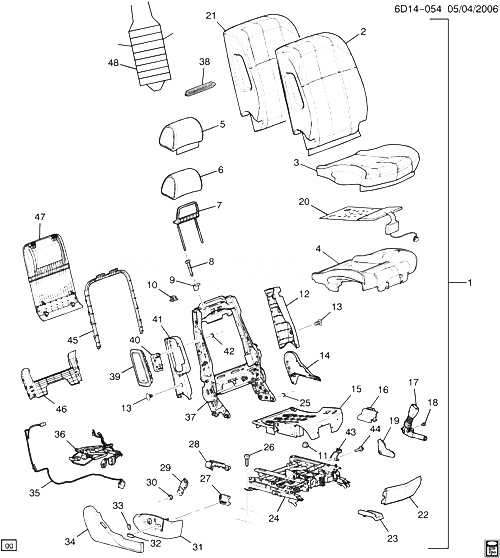

(6D14-054) - 2006-2010 D29 СИДЕНЬЕ ПАССАЖИРА (ИСКЛЮЧАЯ ВЕНТИЛЯЦИЮ И ОБОГРЕВ KB6) CADILLAC - STS 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15885316 SEAT, PASS (INCLS 2-48) (EBONY) DW (AL2, AQ9, KA1, UY5, 01G) (EXC AX4, KB6) 2010-2010 01
001 15885317 SEAT, PASS (INCLS 2-48) (CASHMERE) DW (AL2, AQ9, KA1, UY5, 01D) (EXC AX4, KB6) 2010-2010 01
001 15885318 SEAT, PASS (INCLS 2-48) (GRAY) DW (AL2, AQ9, KA1, UY5, 02K) (EXC AX4, KB6) 2010-2010 01
001 15885328 SEAT, PASS (INCLS 2-48) (GRAY) DW (AQ9, UX8, 02K) (EXC AL2, AX4, KA1, KB6) 2010-2010 01
001 15885329 SEAT, PASS (INCLS 2-48) (EBONY) DW (AQ9, UX8, 01G) (EXC AL2, AX4, KA1, KB6) 2010-2010 01
001 15885330 SEAT, PASS (INCLS 2-48) (CASHMERE) DW (AQ9, UX8, 01D) (EXC AL2, AX4, KA1, KB6) 2010-2010 01
001 15885338 SEAT, PASS (INCLS 2-48) (CASHMERE) DW (AL2, AQ9, KA1, UX8, 01D) (EXC AX4, KB6) 2010-2010 01
001 15885339 SEAT, PASS (INCLS 2-48) (EBONY) DW (AL2, AQ9, KA1, UX8, 01G) (EXC AX4, KB6) 2010-2010 01
001 15885340 SEAT, PASS (INCLS 2-48) (GRAY) DW (AL2, AQ9, KA1, UX8, 02K) (EXC AX4, KB6) 2010-2010 01
001 15885343 SEAT, PASS (INCLS 2-48) (GRAY) DW (AL2, AQ9, AX4, KA1, UY5, 02K) (EXC KB6) (EXPORT) 2010-2010 01
001 15885344 SEAT, PASS (INCLS 2-48) (EBONY) DW (AL2, AQ9, AX4, KA1, UY5, 01G) (EXC KB6) (EXPORT) 2010-2010 01
001 15885345 SEAT, PASS (INCLS 2-48) (CASHMERE) DW (AL2, AQ9, AX4, KA1, UY5, 01D) (EXC KB6) (EXPORT) 2010-2010 01
001 15885424 SEAT, PASS (INCLS 2-48) (GRAY) DW (AL2, AQ9, AX4, KA1, UX8, 02K) (EXC KB6) (EXPORT) 2010-2010 01
001 15885425 SEAT, PASS (INCLS 2-48) (EBONY) DW (AL2, AQ9, AX4, KA1, UX8, 01G) (EXC KB6) (EXPORT) 2010-2010 01
001 15885426 SEAT, PASS (INCLS 2-48) (CASHMERE) DW (AL2, AQ9, AX4, KA1, UX8, 01D) (EXC KB6) (EXPORT) 2010-2010 01
002 19122917 COVER, P/SEAT BK CUSH (EBONY) DW (AQ9, 01G) (EXC AL2, KA1, KB6) 2010-2010 01
002 19122919 COVER, P/SEAT BK CUSH (CASHMERE) DW (AQ9, 01D) (EXC AL2, KA1, KB6) 2010-2010 01
002 19122921 COVER, P/SEAT BK CUSH (GRAY) DW (AQ9, 02K) (EXC AL2, KA1, KB6) 2010-2010 01
002 19122925 COVER, P/SEAT BK CUSH (EBONY) DW (AL2, AQ9, KA1, UX8, 01G) (EXC KB6) 2010-2010 01
002 19122927 COVER, P/SEAT BK CUSH (CASHMERE) DW (AL2, AQ9, KA1, UX8, 01D) (EXC KB6) 2010-2010 01
002 19122929 COVER, P/SEAT BK CUSH (GRAY) DW (AL2, AQ9, KA1, UX8, 02K) (EXC KB6) 2010-2010 01
002 19122933 COVER, P/SEAT BK CUSH (EBONY) DW (AL2, AQ9, KA1, UY5, 01G) (EXC KB6) 2010-2010 01
002 19122935 COVER, P/SEAT BK CUSH (CASHMERE) DW (AL2, AQ9, KA1, UY5, 01D) (EXC KB6) 2010-2010 01
002 19122937 COVER, P/SEAT BK CUSH (GRAY) DW (AL2, AQ9, KA1, UY5, 02K) (EXC KB6) 2010-2010 01
002 19122943 COVER, P/SEAT BK CUSH (CASHMERE) DW (AL2, AQ9, UY5, 01D) (EXC KA1) 2010-2010 01
003 19122949 COVER, P/SEAT CUSH (EBONY) DW (AQ9, 01G) (EXC AL2, KA1, KB6) 2010-2010 01
003 19122951 COVER, P/SEAT CUSH (CASHMERE) DW (AQ9, 01D) (EXC AL2, KA1, KB6) 2010-2010 01
003 19122953 COVER, P/SEAT CUSH (GRAY) DW (AQ9, 02K) (EXC AL2, KA1, KB6) 2010-2010 01
003 19122957 COVER, P/SEAT CUSH (EBONY) DW (AL2, AQ9, KA1, 01G) (EXC KB6) 2010-2010 01
003 19122959 COVER, P/SEAT CUSH (CASHMERE) DW (AL2, AQ9, KA1, 01D) (EXC KB6) 2010-2010 01
003 19122961 COVER, P/SEAT CUSH (GRAY) DW (AL2, AQ9, KA1, 02K) (EXC KB6) 2010-2010 01
004 PAD, P/SEAT CUSH (ЧАСТЬ OF 20) 2006-2010
005 19122912 COVER, P/SEAT H/RST (EBONY) DW (EBS, 01G) 2010-2010 01
005 19122913 COVER, P/SEAT H/RST (CASHMERE) DW (EBS, 01D) 2010-2010 01
005 19122914 COVER, P/SEAT H/RST (GRAY) DW (EBS, 02K) 2010-2010 01
005 88995098 COVER, P/SEAT H/RST (CASHMERE) DW (01D) 2010-2010 01
005 88995099 COVER, P/SEAT H/RST (EBONY) DW (01G) 2010-2010 01
005 88995270 COVER, P/SEAT H/RST (GRAY) DW (02K) 2010-2010 01
006 88952658 PAD, P/SEAT H/RST D29 2006-2010 01
007 88897670 SUPPORT, P/SEAT H/RST D29 2008-2010 01
008 88994546 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) DW (01G) 2010-2010 01
008 88994608 GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) (11.625) DW (02K) 2010-2010 01
008 88994609 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) (11.625) DW (01D) 2010-2010 01
008 88994611 GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) DW (02K) 2010-2010 01
008 88994612 GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) (11.625) DW (01D) (EXPORT) 2010-2010 01
008 88994613 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) (11.625) DW (01G) 2010-2010 02
009 88994323 CAP, P/SEAT H/RST GDE DW 2006-2010 01
009 88994324 CAP, P/SEAT H/RST GDE DW 2006-2010 01
012 88992768 PANEL, P/SEAT BK CUSH FIN (FILLER) (INBOARD) DW 2006-2010 01
013 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT BK CUSH FIN PNL (PUSH IN)) 2006-2010 07
014 88993986 COVER, P/SEAT RECL FIN (GRAY) (OUTBOARD) DW (02K) 2010-2010 01
014 88993987 COVER, P/SEAT RECL FIN (EBONY) (OUTBOARD) DW (01G) 2010-2010 01
014 88993988 COVER, P/SEAT RECL FIN (CASHMERE) (OUTBOARD) DW (01D) 2010-2010 01
014 88993992 COVER, P/SEAT RECL FIN (GRAY) (INBOARD) DW (02K) 2010-2010 01
014 88993993 COVER, P/SEAT RECL FIN (EBONY) (INBOARD) DW (01G) 2010-2010 01
014 88993994 COVER, P/SEAT RECL FIN (CASHMERE) (INBOARD) DW (01D) 2010-2010 01
015 88952676 РАМА, P/SEAT CUSH DW 2006-2010 01
017 10367763 BELT, P/SEAT (BKL SI) (CASHMERE) DW (AX4, 01D) (EXPORT) 2010-2010 01
017 10367764 BELT, P/SEAT (BKL SI) (GRAY) DW (AX4, 02K) (EXPORT) 2010-2010 01
017 10367765 BELT, P/SEAT (BKL SI) (EBONY) DW (AX4, 01G, 02H) (EXPORT) 2010-2010 01
018 11517781 NUT-HEX SPL, M10X1.5X20.2, 9, 4345M, 6175M (P/SEAT BELT TR CVR) 2006-2010 02
019 88994292 COVER, P/SEAT BELT OPG TR (RETR SI) (CASHMERE) DW (01D) 2010-2010 01
019 88994296 COVER, P/SEAT BELT OPG TR (RETR SI) (GRAY) DW (02K) 2010-2010 01
019 88994298 COVER, P/SEAT BELT OPG TR (RETR SI) (EBONY) DW (01G) 2010-2010 01
020 19124201 МОДУЛЬ KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 4) (14.890) DW (EXC KB6) 2006-2010 01
021 88952679 PAD, P/SEAT BK CUSH (W/SIAB) (W/O BOSE) DW (EXC KB6) 2006-2010 01
021 88994075 PAD, P/SEAT BK CUSH (W/BOSE, SIAB) DW (KA1) (EXC KB6) 2006-2010 01
022 19122908 COVER, P/SEAT CUSH FRT (CASHMERE) DW (01D) 2010-2010 01
022 19122909 COVER, P/SEAT CUSH FRT (EBONY) DW (01G) 2010-2010 01
022 19122910 COVER, P/SEAT CUSH FRT (GRAY) DW (02K) 2010-2010 01
024 88992728 ADJUSTER, P/SEAT DW 2006-2010 01
025 11517781 NUT-HEX SPL, M10X1.5X20.2, 9, 4345M, 6175M (P/SEAT BELT TR CVR) 2006-2010 01
026 11609257 БОЛТ, PAN HD, TORX, M12X1.75X34, 9.8 STEEL, GMW3179 (P/SEAT ADJR (W/BELT)) (8.907) 2006-2010 02
027 89042262 SWITCH, P/SEAT ADJR RECL (11.588) D29 2007-2010 01
029 25742613 PLATE, P/SEAT BELT ANC (RETR SI) D29 2006-2010 01
031 88993974 BEZEL, P/SEAT ADJR SW (GRAY) DW (AL2, 02K) 2010-2010 01
031 88993975 BEZEL, P/SEAT ADJR SW (EBONY) DW (AL2, 01G) 2010-2010 01
031 88993976 BEZEL, P/SEAT ADJR SW (CASHMERE) DW (AL2, 01D) 2010-2010 01
031 88993980 BEZEL, P/SEAT ADJR SW (GRAY) DW (02K) (EXC AL2) 2010-2010 01
031 88994856 BEZEL, P/SEAT ADJR SW (EBONY) DW (01G) (EXC AL2) 2010-2010 01
031 88994857 BEZEL, P/SEAT ADJR SW (CASHMERE) DW (01D) (EXC AL2) 2010-2010 01
035 15218855 HARNESS, INFL RST WRG D29 (IL2, IL3) 2006-2010 02
036 88996096 HARNESS, P/SEAT WRG (BASE, SUP) DW (EXC AL2) 2007-2010 01
036 88996097 HARNESS, P/SEAT WRG (LUMBAR, HEAT, SUP) DW 2006-2010 01
036 88996098 HARNESS, P/SEAT WRG DW (AL2, AQ9, IL2, KA1, UY5) (EXC AX4, KB6) 2010-2010 01
037 88994921 РАМА, P/SEAT BK CUSH (W/O MEMORY) (W/RECL MOTOR) DW 2010-2010 01
038 88995199 ПРУЖИНА, P/SEAT BK CUSH PAD SUPT WIRE DW 2006-2010 01
039 15939007 МОДУЛЬ, P/SEAT SI INFL RST (CASHMERE) DW (01D) 2010-2010 01
039 15939008 МОДУЛЬ, P/SEAT SI INFL RST (EBONY) DW (EBS, 01G) (EXC AX4, KB6) 2010-2010 01
039 15939009 МОДУЛЬ, P/SEAT SI INFL RST (GRAY) D29 (02K) 2010-2010 01
040 88993161 ШЛАНГИ, INFL RST F/SEAT SI MDL DW 2006-2010 01
040 88993162 ШЛАНГИ, INFL RST F/SEAT SI MDL DW 2006-2010 01
042 11516075 ГАЙКА, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (P/SEAT SI INFL RST) 2006-2010 04
043 88994342 BRACKET, P/SEAT RECL LWR FIN CVR DW 2006-2010 01
044 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (P/SEAT RECL LWR FIN CVR) 2006-2010 01
045 88993281 RETAINER, D/SEAT BK CUSH FIN PNL (TRIM RING) (14.924) DW 2006-2010 01
047 88995265 PANEL, P/SEAT BK CUSH FIN (GRAY) DW (133) 2006-2010 01
048 88992736 SUPPORT, P/SEAT BK CUSH PAD DW 2006-2010 01
