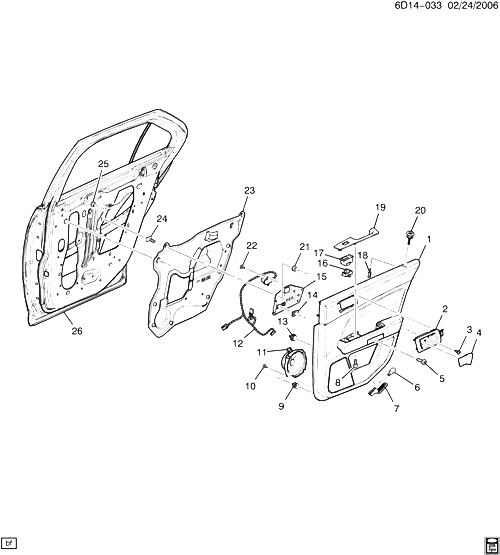

(6D14-033) - 2010 DW29 ОТДЕЛКА/ЗАДНЯЯ ДВЕРЬ CADILLAC - STS 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15853617 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (EBONY) DW (B18, 4AL) 2010-2010 01
001 15853620 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (COCOA) DW (B18, 4AC) 2010-2010 01
001 15853622 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (EBONY) DW (B18, 4AL) 2010-2010 01
001 15853625 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (COCOA) DW (B18, 4AC) 2010-2010 01
001 15905924 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (GRAY) (W/HANDLE) DW (4BF) (EXC B20) 2010-2010 01
001 15905925 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (EBONY) (W/HANDLE) DW (4AL) (EXC B20) 2010-2010 01
001 15905926 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (CASHMERE) (W/HANDLE) DW (4BG) (EXC B20) 2010-2010 01
001 15905934 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (GRAY) (W/HANDLE) DW (4BF) (EXC B20) 2010-2010 01
001 15905935 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (EBONY) (W/HANDLE) DW (4AL) (EXC B20) 2010-2010 01
001 15905936 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (CASHMERE) (W/HANDLE) DW (4BG) (EXC B20) 2010-2010 01
001 15949572 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (GRAY) (W/HANDLE) DW (B20, 4BF) 2010-2010 01
001 15949576 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (GRAY) (W/HANDLE) DW (B20, 4BF) 2010-2010 01
001 15949580 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (GRAY) (W/HANDLE) DW (B20, 4BF) 2010-2010 01
001 15949584 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (GRAY) (W/HANDLE) DW (B20, 4BF) 2010-2010 01
001 15949585 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (EBONY) (W/HANDLE) DW (B20, 4AL) 2010-2010 01
001 15949586 TRIM, RR S/D (INCLS 2, 5-13, 16-20) (CASHMERE) (W/HANDLE) DW (B20, 4BG) 2010-2010 01
002 10370358 HANDLE, RR S/D I/S (ЧАСТЬ OF 1) (CASHMERE) (REQUIRES QTY 2 11501793 NUT) D29 (4BG) 2010-2010 01
002 10370359 HANDLE, RR S/D I/S (ЧАСТЬ OF 1) (EBONY) (REQUIRES QTY 2 11501793 NUT) D29 (4AL, 4BF, 4BH) 2010-2010 01
002 10370361 HANDLE, RR S/D I/S (ЧАСТЬ OF 1) (CASHMERE) (REQUIRES QTY 2 11501793 NUT) D29 (4BG) 2010-2010 01
002 10370362 HANDLE, RR S/D I/S (ЧАСТЬ OF 1) (EBONY) (REQUIRES QTY 2 11501793 NUT) D29 (4AL, 4BF, 4BH) 2010-2010 01
002 15774307 HANDLE, RR S/D I/S (ЧАСТЬ OF 1) (COCOA) DW (2BZ, 4AC) 2010-2010 01
002 15774308 HANDLE, RR S/D I/S (ЧАСТЬ OF 1) (COCOA) DW (2BZ, 4AC) 2010-2010 01
003 11508231 SCREW, RD CROWNED WA HD, SELF TAP, M4.2X1.41X16, POR (RR S/D TR) 2005-2010 02
004 10373149 COVER, RR S/D I/S HDL BZL FIN (EBONY) DW29 (4AL, 4BF, 4BH) 2010-2010 01
004 10373150 COVER, RR S/D I/S HDL BZL FIN (CASHMERE) DW (4BG) 2010-2010 01
004 15774288 COVER, RR S/D I/S HDL BZL FIN (COCOA) DW (4AC) 2010-2010 01
004 15774289 COVER, RR S/D I/S HDL BZL FIN (COCOA) DW (39I) 2007-2010 01
005 БОЛТ, RR S/D PULL HDL HNGR PLT (ЧАСТЬ OF 1) 2010-2010
006 19115808 BULB, FRT S/D C/LP (ЧАСТЬ OF 1) (8.991) (ACDelco #19115808) D 2005-2010 02
008 БОЛТ, RR S/D A/RST SW MT PLT (ЧАСТЬ OF 1) 2010-2010
010 11609509 SCREW, LG RD WA HD, C/R, HI-LO, 4.2X1.41X13, 11.35-OD, B PT, 6010, GMW4205 (ЧАСТЬ OF 1) D29 2005-2010 04
012 21992960 HARNESS, RR S/D WRG (ЧАСТЬ OF 1) D29 2005-2010 01
014 20310739 ГАЙКА, RR S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) D29 2005-2010 04
015 25735487 PLATE, RR S/D PULL HDL HNGR D29 2005-2010 01
015 25735488 PLATE, RR S/D PULL HDL HNGR D29 2005-2010 01
017 ШЛАНГИ, RR S/D ACSRY SW (ЧАСТЬ OF 1, 19) 2010-2010
018 25799901 INDICATOR, DR LK STATUS (ЧАСТЬ OF 1) (INCLS 20) (EBONY) DW (DL7, 193) (EXC B18, B20) 2010-2010 01
020 25903279 BEZEL, DR LK STATUS IND (ЧАСТЬ OF 1, 18) D29 2005-2010 01
021 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (RR S/D TR) 2005-2010 08
022 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (БОЛТ, RR S/D WRG HARN CONNECTOR) D29 2005-2010 02
023 25723826 DEFLECTOR, RR S/D WAT D29 2005-2010 01
023 25723827 DEFLECTOR, RR S/D WAT D29 2005-2010 01
024 11517641 STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (RR S/D TR) 2005-2010 08
025 ГАЙКА, RR S/D TR 2005-2010
026 89022643 DOOR, RR SI (10.351) D29 2005-2010 01
026 89022644 DOOR, RR SI (10.351) D29 2005-2010 01
