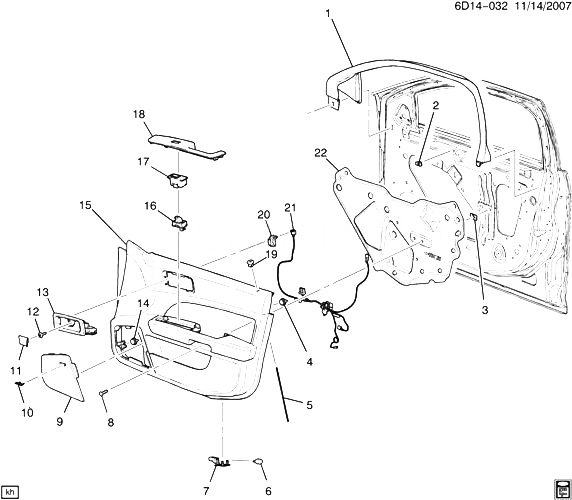

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15265339 |
WEATHERSTRIP, FRT S/D WDO
| DW |
2006-2010 |
01 |
|
| 002 |
|
ГАЙКА, FRT S/D TR |
|
2005-2010 |
|
| 003 |
20310739 |
ГАЙКА, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690)
| D29 |
2005-2010 |
04 |
|
| 005 |
25799901 |
INDICATOR, DR LK STATUS (ЧАСТЬ OF 15) (INCLS 19) (EBONY)
| DW (DL7, 193) (EXC B18, B20) |
2010-2010 |
01 |
|
| 006 |
19115808 |
BULB, FRT S/D C/LP (ЧАСТЬ OF 7, 15) (8.991) (ACDelco #19115808) |
D |
2005-2010 |
02 |
| 008 |
11509231 |
SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (ЧАСТЬ OF 15)
|
2005-2010 |
02 |
|
| 010 |
|
EMBLEM, RDO FRT S/D SPKR GRL (ЧАСТЬ OF 9, 15) |
|
2005-2010 |
|
| 011 |
10373148 |
COVER, FRT S/D I/S HDL BZL FIN (EBONY) |
DW29 (4AL, 4BF, 4BH) |
2010-2010 |
01 |
| 011 |
10373150 |
COVER, FRT S/D I/S HDL BZL FIN (CASHMERE) |
DW (4BG) |
2010-2010 |
01 |
| 012 |
11508231 |
SCREW, RD CROWNED WA HD, SELF TAP, M4.2X1.41X16, POR (FRT S/D TR)
|
2005-2010 |
02 |
|
| 013 |
10370356 |
HANDLE, FRT S/D I/S (ЧАСТЬ OF 15) (EBONY) (REQUIRES QTY 2 11501793 NUT) |
D29 (4AL, 4BF, 4BH) |
2010-2010 |
01 |
| 015 |
15853637 |
TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (EBONY) |
DW (B18, 4AL) |
2010-2010 |
01 |
| 015 |
15853640 |
TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (COCOA) |
DW (B18, 4AC) |
2010-2010 |
01 |
| 015 |
15905914 |
TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (GRAY) |
DW (4BF) (EXC B20) |
2010-2010 |
01 |
| 015 |
15905915 |
TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (EBONY) |
DW (4AL) (EXC B20) |
2010-2010 |
01 |
| 015 |
15905916 |
TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (CASHMERE) |
DW (4BG) (EXC B20) |
2010-2010 |
01 |
| 015 |
15933383 |
TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (GRAY) |
DW (B20, 4BF) |
2010-2010 |
01 |
| 015 |
15933385 |
TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (CASHMERE) |
DW (B20, 4BG) |
2010-2010 |
01 |
| 015 |
15933395 |
TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (EBONY) |
DW (B20, 4AL) |
2010-2010 |
01 |
| 015 |
15933396 |
TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (GRAY) |
DW (B20, 4BF) |
2010-2010 |
01 |
| 015 |
15933397 |
TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (CASHMERE) |
DW (B20, 4BG) |
2010-2010 |
01 |
| 016 |
25746449 |
SWITCH, SI WDO (FRT) (EBONY) |
DW |
2005-2010 |
01 |
| 017 |
|
PLATE, SI WDO SW MT (ЧАСТЬ OF 15) |
|
2010-2010 |
|
| 018 |
15933370 |
BEZEL, FRT SI WDO M/FUNC SW (ЧАСТЬ OF 15) (LT EUCALYPTS) |
DW (B20, 192) |
2010-2010 |
01 |
| 019 |
25903279 |
BEZEL, DR LK STATUS IND (ЧАСТЬ OF 5, 15)
| D29 |
2005-2010 |
01 |
|
| 020 |
25746451 |
SWITCH, DR LK (EBONY) |
DW |
2005-2010 |
01 |
| 021 |
21992959 |
HARNESS, FRT S/D WRG (ЧАСТЬ OF 15) |
DW29 |
2005-2010 |
01 |
| 022 |
15291740 |
DEFLECTOR, FRT S/D WAT |
D29 |
2005-2010 |
01 |
