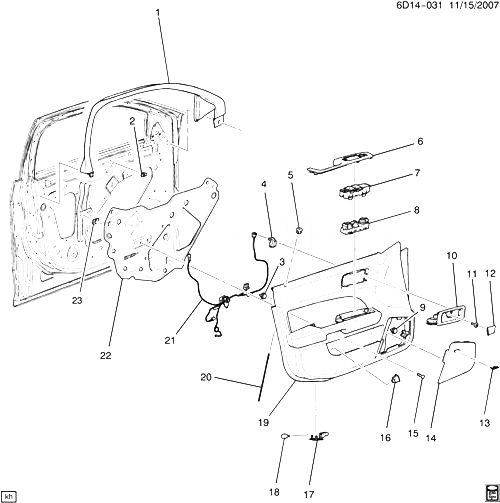

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15265340 |
WEATHERSTRIP, FRT S/D WDO |
DW |
2006-2010 |
01 |
| 002 |
|
ГАЙКА, FRT S/D TR |
|
2005-2010 |
|
| 003 |
11562044 |
RETAINER, FRT S/D T/PNL (ЧАСТЬ OF 19) (FOR 1.7 MM TO 1.9 MM THICK PANEL) (INCLS 11561600) (8.950)
| DW, DX |
2006-2010 |
06 |
|
| 004 |
25746453 |
SWITCH, DR LK (ЧАСТЬ OF 19) (EBONY)
| DW |
2005-2010 |
01 |
|
| 005 |
25903279 |
BEZEL, DR LK STATUS IND (ЧАСТЬ OF 19, 20)
| D29 |
2005-2010 |
01 |
|
| 006 |
|
BEZEL, FRT SI WDO M/FUNC SW (ЧАСТЬ OF 19) |
|
2010-2010 |
|
| 006 |
15933366 |
BEZEL, FRT SI WDO M/FUNC SW (ЧАСТЬ OF 19) (LT EUCALYPTS) |
DW (B20, DR2, 192) |
2010-2010 |
01 |
| 006 |
15933368 |
BEZEL, FRT SI WDO M/FUNC SW (ЧАСТЬ OF 19) (LT EUCALYPTS) |
DW (B20, DL7, 192) |
2010-2010 |
01 |
| 007 |
|
ШЛАНГИ, FRT S/D ACSRY SW (ЧАСТЬ OF 19) |
|
2010-2010 |
|
| 008 |
25746447 |
SWITCH, SI WDO (MAS) (ЧАСТЬ OF 19) (EBONY) (LOCK/UNLOCK, TRUNK REL, MIRROR) |
DW (DL7) |
2005-2010 |
01 |
| 008 |
25746448 |
SWITCH, SI WDO (MAS) (ЧАСТЬ OF 19) (EBONY) (W/SW (S) 1-MIRROR, 1-WDO LOCK, 4-WDO) |
DW (DR2, 4AL, 4AC, 4AL, 4BF, 4BG) |
2010-2010 |
01 |
| 010 |
10370352 |
HANDLE, FRT S/D I/S (ЧАСТЬ OF 19) (CASHMERE) (REQUIRES QTY 2 11501793 NUT) |
DW (DL7, DR2, 1AE, 4BG) |
2010-2010 |
01 |
| 011 |
11508231 |
SCREW, RD CROWNED WA HD, SELF TAP, M4.2X1.41X16, POR (FRT S/D TR)
|
2005-2010 |
02 |
|
| 012 |
15774289 |
COVER, FRT S/D I/S HDL BZL FIN (COCOA) |
DW29 (39I) |
2007-2010 |
01 |
| 015 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (FRT S/D TR)
|
2005-2010 |
01 |
|
| 017 |
10359030 |
ЛАМПА, CTSY (ЧАСТЬ OF 19) (INCLS 18) |
D |
2005-2010 |
04 |
| 018 |
19115808 |
BULB, FRT S/D C/LP (ЧАСТЬ OF 17, 19) (8.991) (ACDelco #19115808) |
D |
2005-2010 |
02 |
| 019 |
15853627 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) |
DW (B18, DR2, 4AL) |
2010-2010 |
01 |
| 019 |
15853630 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (COCOA) |
DW (B18, DR2, 4AC) |
2010-2010 |
01 |
| 019 |
15853632 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) |
DW (B18, DL7, 4AL) |
2010-2010 |
01 |
| 019 |
15853635 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (COCOA) |
DW (B18, DL7, 4AC) |
2010-2010 |
01 |
| 019 |
15905899 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (GRAY) |
DW (DR2, 4BF) (EXC B20) |
2010-2010 |
01 |
| 019 |
15905900 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) |
DW (DR2, 192) (EXC B20) |
2010-2010 |
01 |
| 019 |
15905901 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (CASHMERE) |
DW (DR2, 4BG) (EXC B20) |
2010-2010 |
01 |
| 019 |
15933375 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (GRAY) |
DW (B20, DR2, 4BF) |
2010-2010 |
01 |
| 019 |
15933376 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) |
DW (B20, DR2, 4AL) |
2010-2010 |
01 |
| 019 |
15933379 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (GRAY) |
DW (B20, DL7, 4BF) |
2010-2010 |
01 |
| 019 |
15933380 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) |
DW (B20, DL7, 4AL) |
2010-2010 |
01 |
| 019 |
15933381 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (CASHMERE) |
DW (B20, DL7, 4BG) |
2010-2010 |
01 |
| 019 |
15933391 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (EBONY) |
DW (B20, DL7, 4AL) |
2010-2010 |
01 |
| 019 |
15933392 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (GRAY) |
DW (B20, DL7, 4BF) |
2010-2010 |
01 |
| 019 |
15933393 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (CASHMERE) |
DW (B20, DL7, 4BG) |
2010-2010 |
01 |
| 019 |
20755633 |
TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21) (CASHMERE) |
DW (DR2, 1AE, 2A5, 4BG) |
2010-2010 |
01 |
| 020 |
25799901 |
INDICATOR, DR LK STATUS (ЧАСТЬ OF 19) (INCLS 5) (EBONY)
| DW (DL7, 193) (EXC B18, B20) |
2010-2010 |
01 |
|
| 021 |
21992958 |
HARNESS, FRT S/D WRG (ЧАСТЬ OF 19) |
DW29 |
2005-2010 |
01 |
| 022 |
15291741 |
DEFLECTOR, FRT S/D WAT |
D29 |
2005-2010 |
01 |
| 023 |
20310739 |
ГАЙКА, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690)
| D29 |
2005-2010 |
04 |
|
