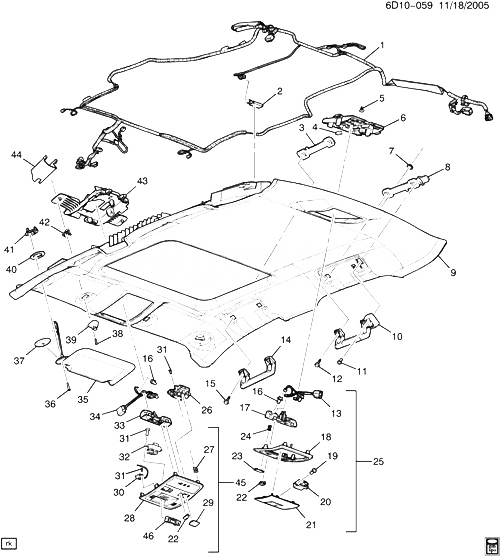

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, W/S HDR WRG |
|
2006-2010 |
|
| 007 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (ASST HDL) |
|
2006-2010 |
08 |
| 009 |
19208901 |
PANEL, HDLNG TR (GRAY) |
DW29 (CE1, CF5, DD8, T2J, UA2, UFL, YQ6, YQ7, 4AL, 4BF, 4BH) (EXC UE1, UG1, W21) |
2010-2010 |
01 |
| 010 |
15924317 |
HANDLE, R/RL RR ASST (GRAY) |
D29 (4AL, 4BF, 4BH) |
2010-2010 |
01 |
| 010 |
15924318 |
HANDLE, R/RL RR ASST (CASHMERE) |
D29 (4AC, 4AL, 4BG) |
2010-2010 |
01 |
| 010 |
15924320 |
HANDLE, R/RL RR ASST (GRAY) |
D29 (4AL, 4BF, 4BH) |
2010-2010 |
01 |
| 010 |
15924321 |
HANDLE, R/RL RR ASST (CASHMERE) |
D29 (4AC, 4AL, 4BG) |
2010-2010 |
01 |
| 011 |
11609460 |
SCREW, RND WA, M4.2X1.41X10, 4.2 THD, 11 OD, GM6010M, GMW4205, C/R, TAP (COAT HOOK) |
|
2006-2010 |
01 |
| 012 |
11610115 |
БОЛТ-HEX W/CON WASHER, M6X1X33, 23.37 THD, 17 OD, 8.8, GMW3200, M-PT (ASST HDL) |
|
2006-2010 |
04 |
| 013 |
|
SWITCH, ACSRY |
|
2006-2010 |
|
| 014 |
15924314 |
HANDLE, R/RL FRT ASST (INCLS 15) (GRAY) |
D29 (4AL, 4BF, 4BH) |
2010-2010 |
02 |
| 014 |
15924315 |
HANDLE, R/RL FRT ASST (INCLS 15) (CASHMERE) |
D29 (4AC, 4AL, 4BG) |
2010-2010 |
02 |
| 015 |
11610115 |
БОЛТ-HEX W/CON WASHER, M6X1X33, 23.37 THD, 17 OD, 8.8, GMW3200, M-PT (ЧАСТЬ OF 14) |
|
2006-2010 |
04 |
| 016 |
09442441 |
BULB, RDG LP (ЧАСТЬ OF 25) (8.991) (ACDelco #9442441) |
DW29 |
2009-2010 |
01 |
| 017 |
|
ШЛАНГИ, RDG LP (ЧАСТЬ OF 25) |
|
2006-2010 |
|
| 019 |
|
SCREW, RND WA, M4.2X1.41X10, 4.2 THD, 11 OD, GM6010M, GMW4205, C/R, TAP (ЧАСТЬ OF 25) |
|
2006-2010 |
AR |
| 020 |
15766504 |
TELLTALE, INFO CTR (ЧАСТЬ OF 25) (ACDelco #15766504) |
DW29 |
2010-2010 |
01 |
| 021 |
89023624 |
PLATE, RR RF CLOSEOUT (ЧАСТЬ OF 25) (GRAY) (RPA SNAP IN PLATE) |
D29 (4AL, 4BF) |
2010-2010 |
01 |
| 021 |
89023625 |
PLATE, RR RF CLOSEOUT (ЧАСТЬ OF 25) (CASHMERE) (RPA SNAP IN PLATE) |
D29 (4AC, 4BG) |
2010-2010 |
01 |
| 022 |
|
PUSHBUTTON, RDG LP SW (ЧАСТЬ OF 45) |
|
2006-2010 |
|
| 024 |
|
RETAINER, RF CNSL (ЧАСТЬ OF 25) |
|
2006-2010 |
|
| 026 |
25782950 |
TRANSMITTER, GARAGE DR OPENER |
DW29 (4AL, 4BF) |
2010-2010 |
01 |
| 026 |
25782951 |
TRANSMITTER, GARAGE DR OPENER |
DW29 (4AC, 4AL) |
2010-2010 |
01 |
| 027 |
|
RETAINER, RF CNSL (ЧАСТЬ OF 45) |
|
2006-2010 |
|
| 030 |
15240415 |
MICROPHONE, RDO VOL COMP INTR NOISE |
DW29 (CF5) |
2009-2010 |
01 |
| 030 |
15246939 |
MICROPHONE, RDO VOL COMP INTR NOISE (RDO VOL COMP) |
DW29 (CFN) |
2010-2010 |
01 |
| 031 |
|
БОЛТ, RF CNSL (ЧАСТЬ OF 45) |
|
2006-2010 |
|
| 032 |
25745189 |
SWITCH, SUN RF (GRAY) |
DW29 (4AL, 4BF) |
2010-2010 |
01 |
| 032 |
25757276 |
SWITCH, SUN RF (CASHMERE) |
DW29 (4AC, 4AL, 4BG) |
2010-2010 |
01 |
| 033 |
|
ШЛАНГИ, RDG LP (ЧАСТЬ OF 45) |
|
2006-2010 |
|
| 034 |
|
SWITCH, RDG LP (ЧАСТЬ OF 45) |
|
2006-2010 |
|
| 035 |
25843580 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (SPORT LT CASHMERE) |
DW29 (4AC, 4AL) |
2010-2010 |
01 |
| 035 |
25843581 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (SPORT LT CASHMERE) |
DW29 (4AC, 4AL) |
2010-2010 |
01 |
| 035 |
25843584 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (GRAY) |
D29 (4AL, 4BF, 4BH) |
2010-2010 |
01 |
| 035 |
25843585 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (GRAY) |
D29 (4AL, 4BF, 4BH) |
2010-2010 |
01 |
| 035 |
25843586 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (CASHMERE) |
D29 (4AC, 4BG) |
2010-2010 |
01 |
| 035 |
25843587 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (CASHMERE) |
D29 (4AC, 4BG) |
2010-2010 |
01 |
| 036 |
11516638 |
SCREW - TAP RND SM WASH HD TY, M4.2X1.4X25, 19.2THD, 8.5 OD (HIGH MT STOP CARGO LP OPG CVR) (8.906) |
|
2006-2010 |
06 |
| 037 |
25856126 |
COVER, S/S RET БОЛТ (GRAY) (FOR VEHS BUILT 4/2/07 AFTER) |
D29 (4AL, 4BF, 4BH) |
2010-2010 |
02 |
| 037 |
25856127 |
COVER, S/S RET БОЛТ (CASHMERE) (FOR VEHS BUILT 4/2/07 AFTER) |
D29 (4AC, 4AL, 4BG) |
2010-2010 |
02 |
| 038 |
11515894 |
SCREW, RD WA HD, C/R, M4.2X1.41X20, 6010M, PEOR, 15.5 THD, AB PT, 8.4 OD (S/S RET)
|
2006-2010 |
02 |
|
| 039 |
25845682 |
SUPPORT, S/S (GRAY) |
D29 (4AL, 4BF, 4BH) |
2010-2010 |
02 |
| 039 |
25845683 |
SUPPORT, S/S (CASHMERE) |
D29 (4AC, 4BG) |
2010-2010 |
01 |
| 040 |
89023299 |
SPACER, S/S SUPT |
D29 |
2006-2010 |
02 |
| 041 |
11561730 |
REINFORCEMENT, S/S SUPT (CLIP) (1 PER SIDE) |
D29 |
2006-2010 |
02 |
| 042 |
22612024 |
RETAINER, S/S RET (55MM LONG) (PUSH-IN) (15.394)
| D29 |
2009-2010 |
02 |
|
| 043 |
19122349 |
PLATE, RF FRT COMPT ANC (GRAY) (FRT OH CNSL FRT PLT) (W/AOS) (USED ON NON-SNRF VEHS) |
D29 (4AL, 4BF) |
2010-2010 |
01 |
| 043 |
19122401 |
PLATE, RF FRT COMPT ANC (CASHMERE) (FRT OH CNSL FRT PLT) (W/AOS) (USED ON NON-SNRF VEHS) |
D29 (4AC, 4BG) |
2010-2010 |
01 |
| 043 |
19208352 |
PLATE, RF FRT COMPT ANC (GRAY) (FRT RECESSED SNRF PLT W/AOS, RECESSED SNRF SW) |
D29 (CF5, 4AL, 4BF) |
2010-2010 |
01 |
| 043 |
19208353 |
PLATE, RF FRT COMPT ANC (CASHMERE) (FRT RECSD SNRF PLT W/AOS, W/RECSD SNRF SW) |
D29 (CF5, 4AC, 4AL, 4BG) |
2010-2010 |
01 |
| 043 |
89023605 |
PLATE, RF FRT COMPT ANC (GRAY) (FRT RR BLANK PLATE) |
DW29 (13I, 19I, 67I) |
2008-2010 |
01 |
| 043 |
89023606 |
PLATE, RF FRT COMPT ANC (CASHMERE) (FRT RR BLANK PLATE) |
DW29 (32I, 39I) |
2008-2010 |
01 |
| 043 |
89023608 |
PLATE, RF FRT COMPT ANC (GRAY) (FRT OVERHEAD КОНСОЛЬ/RR INTRUSION PLATE) |
DW29 (13I, 19I, 67I) (EXC UE1, UG1) |
2007-2010 |
01 |
| 043 |
89023609 |
PLATE, RF FRT COMPT ANC (CASHMERE) (FRT OVERHEAD КОНСОЛЬ/RR INTRUSION PLATE) |
DW29 (CE1, T2J, 32I, 39I) (EXC UE1, UG1) |
2006-2010 |
01 |
| 044 |
15887556 |
COVER, I/S RR VIEW MIR WRG HARN UPR (EBONY) |
DW29 |
2010-2010 |
01 |
| 045 |
19150112 |
BEZEL, RF FRT COMPT (INCLS 22, 27-29, 31, 33, 34) (GRAY) (FRT OH CNSL W/O UGDO/INT) |
DW (4AL, 4BF, 4BH) (EXC UG1) |
2010-2010 |
01 |
| 045 |
19150113 |
BEZEL, RF FRT COMPT (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) (FRT OH CNSL W/O UGDO/INT) |
DW (4BG) (EXC UG1) |
2010-2010 |
01 |
| 046 |
22625546 |
INDICATOR, INFL RST I/P MDL (W/WORDS ON AND OFF FOR AIRBAG) |
DW (EXC T2J) |
2010-2010 |
01 |
| 046 |
22627868 |
INDICATOR, INFL RST I/P MDL (W/AIRBAG SYMBOLS FOR ON AND OFF) |
DW (T2J) |
2010-2010 |
01 |
