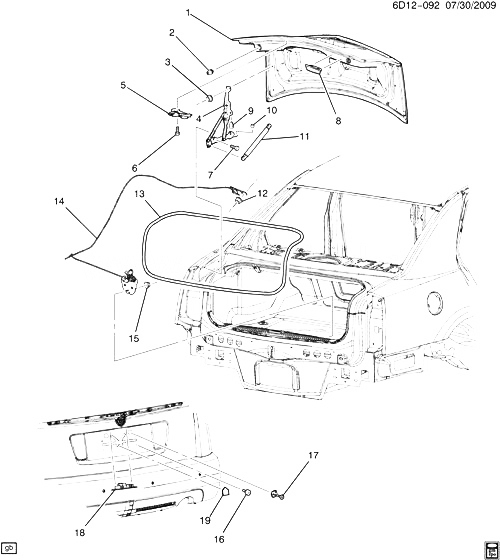

(6D12-092) - 2007-2010 D29 ЗАДНЯЯ АРМАТУРА CADILLAC - STS 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25818176 LID, R/CMPT (W/SPOILER) D29 (T43) 2007-2010 01
001 25818179 LID, R/CMPT (W/O SPOILER) DW29 (EXC T43) 2007-2010 01
002 25705651 BUMPER, R/CMPT LID OTR D29 2007-2010 02
003 11514602 ГАЙКА, HEX, M8X1.25, 6.8THK, 13 O.D., 10, ZF (R/CMPT LID HGE (LID SI)) 2007-2010 04
004 25804984 HINGE, R/CMPT LID D29 2007-2010 01
004 25804985 HINGE, R/CMPT LID D29 2007-2010 01
005 25885393 LATCH, R/CMPT LID (INCLS PULL DOWN ACTUATOR) D29 2007-2010 01
005 25885393 LATCH, R/CMPT LID (INCLS PULL DOWN ACTUATOR) (12.242) D29 2007-2010 01
006 11517518 БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (R/CMPT LID LAT) (ACDelco #11517518) 2009-2010 02
007 11515755 БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (R/CMPT LID HGE (BODY SI)) (T/W 12345493 REPLCS 25534835) 2007-2010 04
008 15218183 HANDLE, L/GATE I/S ASST D29 2007-2010 01
009 25766892 BUMPER, R/CMPT LID HGE D29 2007-2010 02
010 25766891 CAP, R/CMPT LID HGE ADJ БОЛТ D29 2007-2010 02
011 15861153 STRUT, R/CMPT LID (W/SPOILER) D29 (T43) 2007-2010 02
011 15861154 STRUT, R/CMPT LID D29 (EXC T43) 2007-2010 02
012 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (R/CMPT LID LAT REL CBL HDL) 2007-2010 02
013 25775733 WEATHERSTRIP, R/CMPT LID D29 2007-2010 01
014 25885310 STRIKER, R/CMPT LID LAT D29 2009-2010 01
015 11517761 NUT ASM - HX, WA WITH FOAM SEALER, M6X1, 10MM SOCKET, 42.5 DIA. (R/CMPT LID LAT STKR) 2007-2010 03
016 10430752 BUMPER, RR LIC PLT (INSTALLED IN POCKET) (12.945) D29 2007-2010 02
017 25943891 GROMMET, RR LIC PLT BRKT DW29 2010-2010 01
017 25943892 GROMMET, RR LIC PLT BRKT DW 2010-2010 01
018 10383948 SWITCH, R/CMPT LID REL (EBONY) (LABELED 10383948) (ACDelco #D1426F) DW 2007-2010 01
019 25833289 INSULATOR, RR LIC PLT DW (V8D, V8E) 2010-2010 01
