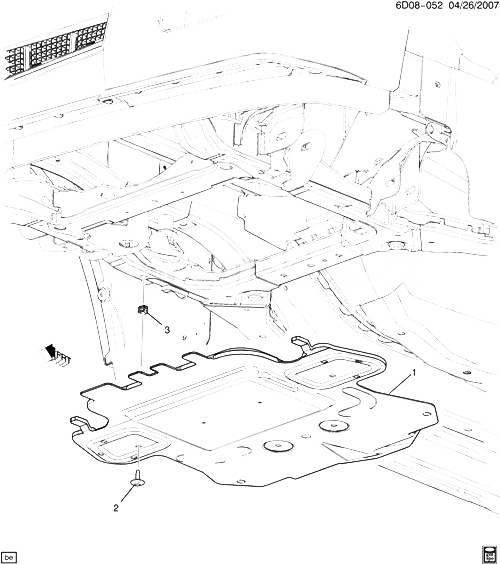

(6D08-052) - 2010 DW29 SIGHT SHIELD/НИЖНЯЯ ЧАСТЬ (LLT/3.6V) CADILLAC - STS 2010
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 15835283 | SHIELD, E/CMPT LWR NOISE | DW (LLT, MX0, MX7) | 2008-2010 | 01 |
| 002 | 11609681 | БОЛТ, HEX W/FL WA, M6X1X25, 14 THD, 24 OD, GM6202M STEEL, GMW3200 (F/CMPT LWR NOISE SHLD)|
| 2008-2010 |
04 |
|
| 003 | 11570215 | ГАЙКА, F/CMPT LWR NOISE SHLD BRKT (M6X1) (FITS HOLE SIZE 9.5X14, 2-3.8MM PNL THK) (8.160)| DW (LLT) |
2009-2010 |
04 |
|
