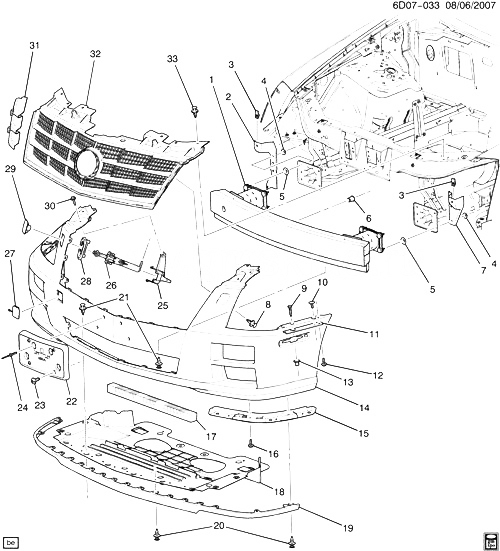

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25994577 |
BAR, FRT BPR IMP (INCLS 5, 6)
| DW |
2010-2010 |
01 |
|
| 002 |
25754010 |
BRACKET, HDLP (INCLS 3) |
D29 |
2008-2010 |
01 |
| 003 |
11609385 |
ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (ЧАСТЬ OF 2, 7)
|
2008-2010 |
02 |
|
| 004 |
11517397 |
ГАЙКА, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (FRT BPR ENGY ABS) |
|
2008-2010 |
08 |
| 005 |
10009923 |
ГАЙКА, БОЛТ RETAINING ПРУЖИНА, M8X1.25, 25 O.D., ZOR (ЧАСТЬ OF 1) |
|
2008-2010 |
06 |
| 006 |
11561916 |
NUT-INSERT, M8X1.25, 13.5 HOLE, 0.7-3.8 GRIP, 24 LONG, 17.4 OD, 1008, GMW (ЧАСТЬ OF 1) |
|
2008-2010 |
02 |
| 007 |
25754011 |
BRACKET, HDLP (INCLS 3) |
D29 |
2008-2010 |
01 |
| 008 |
10134407 |
RETAINER, FRT BPR FASCIA LWR SUPT (EBONY) (17.8 X 6.3 X 20.4MM) (NYLON) (ROUND PUSH-IN INCLS PUSH BUTTON LOCK) (1.272)
| DW |
2010-2010 |
06 |
|
| 009 |
11517103 |
STUD, SPL W/KNURLED SHLDR, M6X1X27, 10 THD, 13 O.D., P-PT., 9.8, 7114M (ЧАСТЬ OF 14)
|
2008-2010 |
02 |
|
| 010 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (ЧАСТЬ OF 14)
|
2008-2010 |
02 |
|
| 011 |
|
REINFORCEMENT, FRT BPR FASCIA (ЧАСТЬ OF 14) |
|
2010-2010 |
|
| 012 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (ЧАСТЬ OF 14)
|
2008-2010 |
02 |
|
| 013 |
11517102 |
ГАЙКА, HEX FLG, M6X1X15, 19.8 OD, 9, 7111M (ЧАСТЬ OF 14)
|
2008-2010 |
02 |
|
| 014 |
19178893 |
FASCIA, FRT BPR (INCLS 9-13, 25, 27, 28) (КРАСКА TO MATCH)
| DW (CE4) |
2008-2010 |
01 |
|
| 014 |
19178894 |
FASCIA, FRT BPR (INCLS 9-13, 25, 27, 28) (КРАСКА TO MATCH) |
DW (EXC CE4) |
2008-2010 |
01 |
| 015 |
25786156 |
SUPPORT, FRT BPR FASCIA LWR |
DW |
2008-2010 |
01 |
| 015 |
25786157 |
SUPPORT, FRT BPR FASCIA LWR
| DW |
2008-2010 |
01 |
|
| 016 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (FRT T/SIG LP)
|
2008-2010 |
06 |
|
| 017 |
15248340 |
SEAL, RAD AIR LWR (ЧАСТЬ OF 18) |
D29 |
2008-2010 |
01 |
| 018 |
25802476 |
DEFLECTOR, FRT AIR (INCLS 17) |
DW29 |
2008-2010 |
01 |
| 019 |
25786167 |
DEFLECTOR, FRT BPR FASCIA LWR |
DW29 |
2008-2010 |
01 |
| 020 |
11589291 |
RETAINER, PUSH-IN, FITS 6.5 HOLE IN 7-9.5 THK PNL, NYLON 6/6 (F/CMPT SPH SHLD (PUSH IN))
|
2008-2010 |
12 |
|
| 021 |
21030249 |
RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (FRT BPR FASCIA LWR DFL (PUSH IN)) (8.950) (PUSH IN)
|
2008-2010 |
18 |
|
| 022 |
25787135 |
BRACKET, FRT LIC PLT |
DW29 (VK3) |
2008-2010 |
01 |
| 022 |
25874512 |
BRACKET, FRT LIC PLT (BRKT W/NUTS) |
DW (VL6) |
2008-2010 |
01 |
| 022 |
25874513 |
BRACKET, FRT LIC PLT (BRKT W/NUTS) |
DW (VL6) |
2008-2010 |
01 |
| 022 |
25874514 |
BRACKET, FRT LIC PLT |
DW29 (VL4) |
2008-2010 |
01 |
| 023 |
09423101 |
SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (FRT LIC PLT) |
|
2008-2010 |
04 |
| 024 |
15562158 |
RIVET, FRT LIC PLT BRKT (10.485) |
DW29 |
2010-2010 |
04 |
| 025 |
|
BRACKET, HDLP WA NOZ (ЧАСТЬ OF 14) |
|
2010-2010 |
|
| 027 |
19167973 |
COVER, FRT BPR FASCIA FRT TOW HOOK ACC HOLE (ЧАСТЬ OF 14) (PRIMED) |
DW29 |
2008-2010 |
01 |
| 028 |
|
BRACKET, HDLP WA NOZ (ЧАСТЬ OF 14) |
|
2010-2010 |
|
| 029 |
19167974 |
COVER, HDLP WA NOZ HOLE
| DW29 |
2008-2010 |
01 |
|
| 029 |
19167975 |
COVER, HDLP WA NOZ HOLE |
DW29 |
2008-2010 |
01 |
| 030 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (HDLP WA NOZ)
|
2008-2010 |
02 |
|
| 031 |
25810128 |
DEFLECTOR, RAD GRL WAT |
DW29 |
2008-2010 |
01 |
| 031 |
25810129 |
DEFLECTOR, RAD GRL WAT |
DW29 |
2008-2010 |
01 |
| 032 |
25876965 |
GRILLE, RAD LWR (СМ. ГРУППУ 01.000 РЕШЕТКА РАДИАТОРА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (CHARCOAL) |
DW29 (EXC W21) |
2008-2010 |
01 |
| 032 |
25908922 |
GRILLE, RAD LWR (СМ. ГРУППУ 01.000 РЕШЕТКА РАДИАТОРА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
DW29 (CE4, W21) |
2009-2010 |
01 |
| 033 |
21030249 |
RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (FRT BPR FASCIA (PUSH IN)) (8.950) (PUSH IN)
|
2008-2010 |
06 |
|
