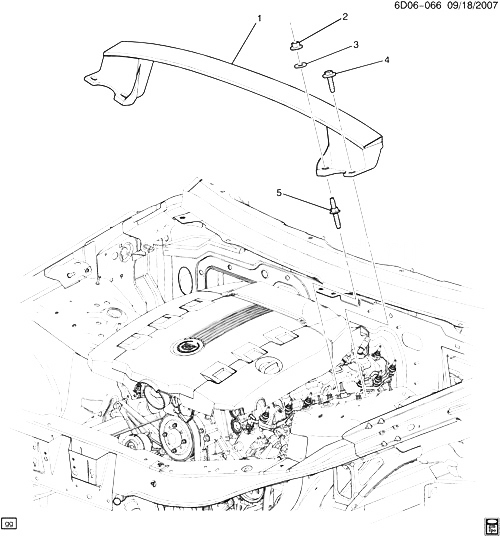

(6D06-066) - 2008-2010 DW29 РАСПОРКА ПРЕДНЕЙ ПОДВЕСКИ (NV7) CADILLAC - STS 2010
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 25889925 | BRACE, F/END SH MET CR | DW (NV7) | 2010-2010 | 01 |
| 002 | 11516078 | ГАЙКА, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (F/END SH MET CR BR)|
| 2008-2010 |
01 |
|
| 003 | 14047726 | WASHER, F/END SH MET CR BR (M13X35X3) (7.347)| DW (NV7) |
2010-2010 |
02 |
|
| 004 | 11589407 | БОЛТ, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (FRT S/ABS UPR BRKT)|
| 2008-2010 |
02 |
|
| 005 | 11561669 | STUD - DOUBLE ENDED, M3.0X1.12X12.0, GM512M STL GRADE B, GMW4205 (FRT S/ABS) | 2008-2010 | 02 |
