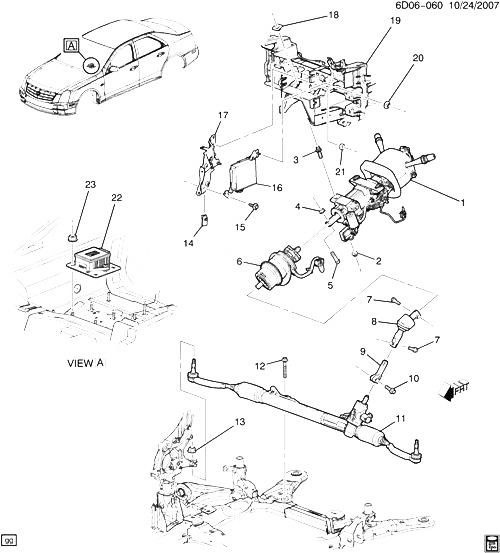

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
COLUMN, STRG (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (EBONY) (CODE 8544) |
|
2008-2010 |
|
| 002 |
10272735 |
WASHER, M8, 20.4 O.D., 2.5THK, STL, CAD/ZP (STRG COL UPR SUPT) (8.929) |
|
2008-2010 |
04 |
| 002 |
11514602 |
ГАЙКА, HEX, M8X1.25, 6.8THK, 13 O.D., 10, ZF (STRG COL UPR SUPT) |
|
2008-2010 |
04 |
| 003 |
|
STUD, STRG COL (ЧАСТЬ OF 19) |
|
2008-2010 |
|
| 004 |
11514597 |
ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (INTER STRG SHF) (2.383) |
|
2008-2010 |
AR |
| 005 |
11609752 |
БОЛТ, INTER STRG SHF UPR (M10X1.5X39, 22THD) (16OD, 16 THRU HOLE) |
DW29 |
2008-2010 |
01 |
| 006 |
15212408 |
SHAFT, UPR INTER STRG (6.524)
| DW29 (N31, T79) |
2010-2010 |
01 |
|
| 006 |
15948486 |
SHAFT, UPR INTER STRG |
DW (JL7, N31) (EXC T79, UA2) |
2008-2010 |
01 |
| 007 |
11610011 |
БОЛТ, INTER STRG SHF (M8X1.25X31, 17THD)
| D |
2008-2010 |
02 |
|
| 008 |
15833743 |
SHAFT, INTER STRG W/SEAL C/V JT |
DW (JL7) |
2008-2010 |
01 |
| 009 |
15948477 |
SHAFT, LWR INTER STRG |
DW (JL7) |
2008-2010 |
01 |
| 010 |
11518143 |
БОЛТ, INTER STRG SHF LWR (M10X1.5X38, 14.5) (8.900)
| D |
2008-2010 |
01 |
|
| 010 |
11609752 |
БОЛТ, INTER STRG SHF LWR (M10X1.5X39, 22THD) (16OD, 16 THRU HOLE) |
DM, DN, DW |
2009-2010 |
01 |
| 011 |
|
GEAR, STRG (СМ. ГРУППУ 06.000 РУЛЕВОЙ МЕХАНИЗМ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2008-2010 |
|
| 012 |
11589135 |
БОЛТ, S/GR (M12X1.75X85, 60THD) (8.900) |
DW |
2010-2010 |
02 |
| 013 |
11516078 |
ГАЙКА, STRG LNKG OTR TIE ROD (TO STRG ARM) (M12X1.75X18) (8.917)
| D |
2010-2010 |
02 |
|
| 014 |
11609385 |
ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (P/S CONT MDL)
|
2008-2010 |
01 |
|
| 015 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S CONT MDL) |
|
2008-2010 |
01 |
| 016 |
25863979 |
МОДУЛЬ, P/S CONT |
DW |
2008-2010 |
01 |
| 017 |
25737925 |
BRACKET, STRG COL SUPT (COMPLETE ASM) |
DW29 |
2010-2010 |
01 |
| 018 |
25606907 |
ГАЙКА, STRG COL (ЧАСТЬ OF 19) (M8X1.25, 7.1THK) (SQUARE) (SUPT BRKT NUT) (6.760) |
DW |
2010-2010 |
04 |
| 019 |
|
КРОНШТЕЙН, INST (СМ. ГРУППУ 10.000 ПРИБОРНАЯ ПАНЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (INCLS 3, 18) |
|
2008-2010 |
|
| 020 |
11514517 |
ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (P/S CONT MDL)
|
2008-2010 |
01 |
|
| 021 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (STRG COL SUPT BRKT)
|
2008-2010 |
02 |
|
| 022 |
15828083 |
SENSOR, VEH YAW (W/ VEH LATL LGTDNL ACCLRM) |
DW29 (JL7) |
2008-2010 |
01 |
| 023 |
11561645 |
ГАЙКА, HFH, M6X1X6.45, 13.5 OD, 10 STL, GMW3200 (VEH YAW SEN LATL ACCLRM) |
|
2008-2010 |
04 |
