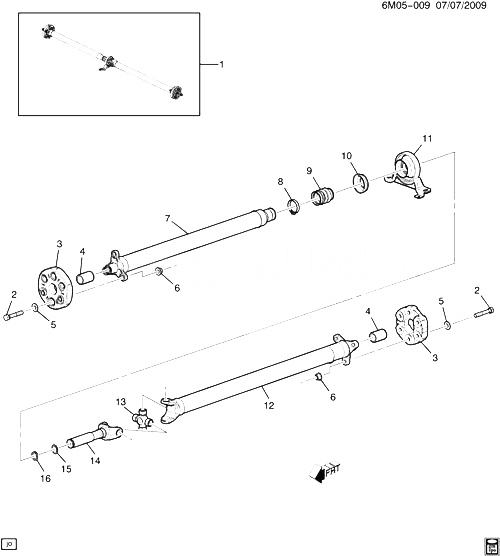

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15225526 |
SHAFT, PROP (INCLS 2-16)
| DW (MX0) |
2008-2010 |
01 |
|
| 002 |
11588658 |
БОЛТ, TRANS PROP SHF FLG (INCLS 5) (M12X1.75X70) (HEX) (8.900)
| D29 (MX0) |
2008-2010 |
06 |
|
| 003 |
|
COUPLING, PROP SHF |
|
2010-2010 |
|
| 004 |
|
LOCATOR, PROP SHF |
|
2010-2010 |
|
| 005 |
11588689 |
WASHER, FRT PROP SHF (ЧАСТЬ OF 2) (ID 12.25, OD 23.0, THK 3.38MM)
| D29 |
2008-2010 |
03 |
|
| 006 |
11516073 |
ГАЙКА, PROP SHF FLG (M12X1.75X11.5, 10) (HEX LK PREV TORQ) (7111M ZE) (8.917)
| DW |
2010-2010 |
06 |
|
| 007 |
|
SHAFT, FRT PROP |
|
2010-2010 |
|
| 008 |
|
CЛАМПА, FRT PROP SHF BRG UPR (ЧАСТЬ OF 11) |
|
2010-2010 |
|
| 009 |
|
BOOT, PROP SHF RR SLIP YOKE (ЧАСТЬ OF 11) |
|
2010-2010 |
|
| 010 |
|
SLINGER, FRT PROP SHF BRG (ЧАСТЬ OF 11) |
|
2010-2010 |
|
| 011 |
88951975 |
BEARING KIT, PROP SHF CTR SUPT (INCLS 8-10, 15, 16)
| DW (JJL, MX0) (EXC JNG) |
2010-2010 |
01 |
|
| 012 |
|
SHAFT, RR PROP |
|
2010-2010 |
|
| 013 |
|
JOINT, PROP SHF UNIVERSAL |
|
2010-2010 |
|
| 014 |
|
YOKE, PROP SHF SLIP |
|
2010-2010 |
|
| 015 |
|
RING, PROP SHF CTR SUPT BRG THR (ЧАСТЬ OF 11) |
|
2010-2010 |
|
| 016 |
|
RETAINER, RR PROP SHF (ЧАСТЬ OF 11) |
|
2010-2010 |
|
