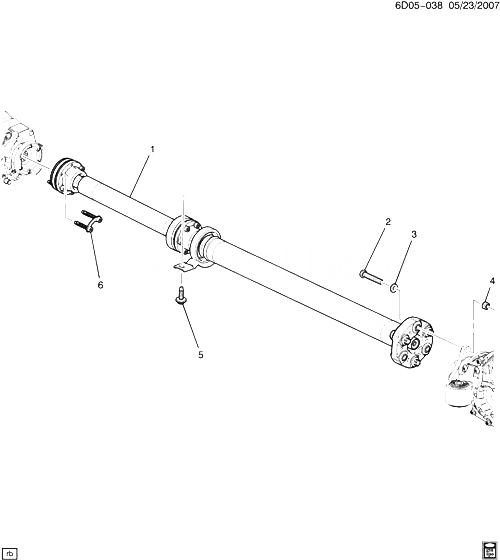

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15937535 |
SHAFT, PROP (INCLS 6) |
DW29 (LH2, MX7) |
2007-2010 |
01 |
| 002 |
11588658 |
БОЛТ, RR PROP SHF (M12X1.75X70) (HEX) (8.900)
| D29 |
2007-2010 |
03 |
|
| 003 |
11588689 |
WASHER, RR PROP SHF (ID 12.25, OD 23.0, THK 3.38MM)
| D29 |
2007-2010 |
03 |
|
| 004 |
11516073 |
ГАЙКА, RR PROP SHF (M12X1.75X11.5, 10) (HEX LK PREV TORQ) (7111M ZE) (8.917)
| D29 |
2007-2010 |
03 |
|
| 005 |
11589166 |
БОЛТ, HEX W/CON WA, M10X1.5X39.8, 25.45 THD, 28 OD, 10.9, GMW3359, M-PT (RR PROP SHF BRG SUPT) |
|
2007-2010 |
02 |
| 006 |
19151557 |
RETAINER, FRT PROP SHF (ЧАСТЬ OF 1) (CONTAINS 2 M8X1.25X50 БОЛТS AND 1 CURVED FLAT WASHER) |
DW29 (LH2, MX7) |
2007-2010 |
03 |
