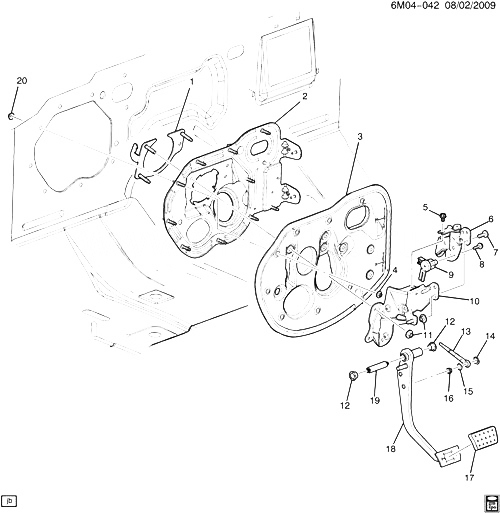

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25675835 |
BRACKET, BRK PED BRKT |
DM, DN, DW |
2010-2010 |
01 |
| 002 |
15899928 |
REINFORCEMENT, DA PNL BRK PED BRKT |
DW (JL7) |
2010-2010 |
01 |
| 002 |
25737951 |
REINFORCEMENT, DA PNL BRK PED BRKT |
DW (EXC JL7) |
2010-2010 |
01 |
| 003 |
25789356 |
BARRIER, BRK PED BRKT SND |
DW (EXC JL7) |
2010-2010 |
01 |
| 003 |
25895478 |
BARRIER, BRK PED BRKT SND |
DW29 (JL7) |
2010-2010 |
01 |
| 004 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BRK PED BRKT SND BARR)
|
2005-2010 |
05 |
|
| 005 |
|
БОЛТ, BRK PED BRKT BR (ЧАСТЬ OF 18) |
|
2007-2010 |
|
| 006 |
|
BRACKET, BRK PED (ЧАСТЬ OF 18) |
|
2007-2010 |
|
| 007 |
|
БОЛТ, BAT HOLDN RET (ЧАСТЬ OF 18) |
|
2007-2010 |
|
| 008 |
11609999 |
SCREW, HEX HD FL WA, M4X0.7X20, 13 THD, 12 OD, 9.8, GMW3044, W/NYLON (ЧАСТЬ OF 18) |
|
2005-2010 |
01 |
| 009 |
89047699 |
SENSOR KIT, BRK PED POSN
| DW29 |
2010-2010 |
01 |
|
| 010 |
|
BRACKET, BRK PED (ЧАСТЬ OF 18) |
|
2007-2010 |
|
| 011 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (BRK PED BRKT)
|
2005-2010 |
05 |
|
| 012 |
15594358 |
BUSHING, BRK PED PIV (ЧАСТЬ OF 18) (0.831) |
D |
2005-2010 |
02 |
| 013 |
|
ROD, BRK PED PUSH (ЧАСТЬ OF 18) |
|
2007-2010 |
|
| 014 |
03817880 |
RETAINER, BRK PED PUSH ROD (ЧАСТЬ OF 18) (0.80 IN) (PUSH IN) |
D |
2005-2010 |
01 |
| 015 |
00410230 |
WASHER, ПРУЖИНА 29/64 I.D., 11/16 O.D., 5/64 THK, PL (ЧАСТЬ OF 18) |
|
2005-2010 |
01 |
| 016 |
10434956 |
BUSHING, BRK PED PUSH ROD (ЧАСТЬ OF 18) |
D |
2005-2010 |
01 |
| 017 |
25771615 |
COVER, BRK PED (ЧАСТЬ OF 18) |
DM, DN, DW |
2010-2010 |
01 |
| 018 |
25980365 |
PEDAL, BRK (INCLS 5-8, 10, 12-17, 19) |
DW |
2010-2010 |
01 |
| 019 |
|
PIN, BRK PED PIV (ЧАСТЬ OF 18) |
|
2007-2010 |
|
| 020 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (DA PNL REINF)
|
2005-2010 |
09 |
|
