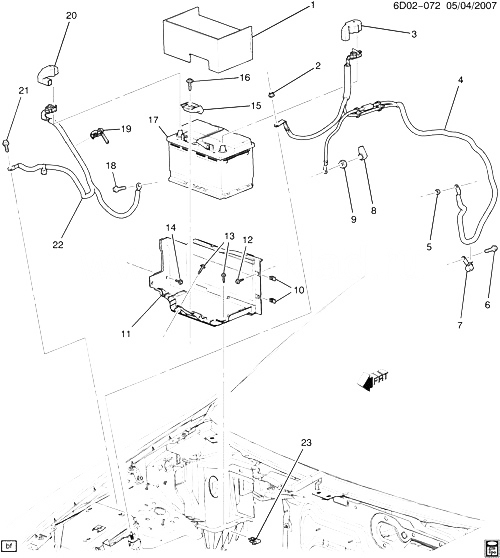

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25781867 |
SHIELD, BAT HT |
DW29 |
2010-2010 |
01 |
| 003 |
|
COVER, BAT POS CBL TERM (ЧАСТЬ OF 4) |
|
2008-2010 |
|
| 004 |
25831922 |
CABLE, BAT POS (INCLS 3, 7, 8) (ACDelco #25831922) |
DW (LLT, JJB) |
2010-2010 |
01 |
| 005 |
21021808 |
ГАЙКА, STRTR SOL BAT TERM (M8X1.25X6, BRASS) (2.343)
| DW (LLT) |
2010-2010 |
01 |
|
| 006 |
11515770 |
БОЛТ, HFH, RED BODY, M10X1.5X50, THD 22.3, 9.8, 7114, PZOR (TRANS)
|
2008-2010 |
11 |
|
| 009 |
11609843 |
ГАЙКА, BAT WIRE (8.915) |
D29 (JJB) |
2009-2010 |
01 |
| 010 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (ЧАСТЬ OF 11) |
|
2008-2010 |
02 |
| 011 |
25783791 |
TRAY, BAT (INCLS 10) |
DW |
2008-2010 |
01 |
| 012 |
11516589 |
SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (AIR INL) |
|
2008-2010 |
03 |
| 013 |
11516589 |
SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (BAT TRAY) |
|
2008-2010 |
05 |
| 014 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BAT TRAY)
|
2008-2010 |
02 |
|
| 015 |
25867297 |
RETAINER, BAT HOLDN |
DW |
2010-2010 |
01 |
| 016 |
11589407 |
БОЛТ, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (BAT HOLDN RET)
|
2008-2010 |
01 |
|
| 017 |
88864523 |
АККУМУЛЯТОР, (CCA 660) (TOP POST) ( 277X174X190) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (PROFESSIONAL - 7 YR) |
DW29 |
2010-2010 |
01 |
| 018 |
11588564 |
БОЛТ, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (BAT NEG CBL GND) |
|
2008-2010 |
01 |
| 020 |
19116749 |
COVER, BAT NEG CBL TERM (ЧАСТЬ OF 22) |
DW29 (LLT) |
2008-2010 |
01 |
| 021 |
11589258 |
БОЛТ, BAT NEG CBL GND (M8X1.25X31)
| DW29 (LLT) |
2008-2010 |
01 |
|
| 022 |
25831926 |
CABLE, BAT NEG (INCLS 19, 20) (ACDelco #25831926) (LABELED 25831926) |
DW (LLT, JJB) |
2009-2010 |
01 |
| 023 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (AIR INL HSG) |
|
2008-2010 |
05 |
