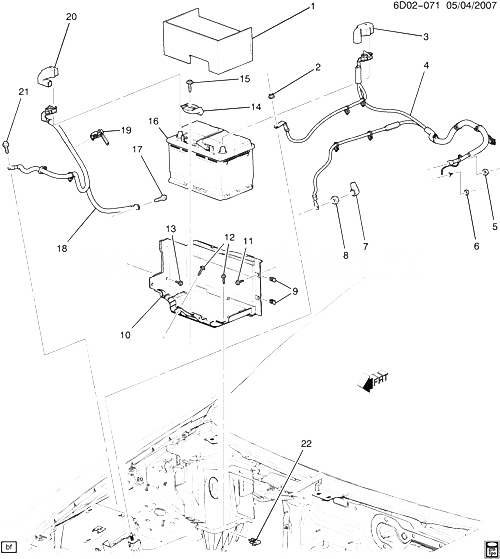

(6D02-071) - 2008-2010 DW29 КРЕПЛЕНИЕ АККУМУЛЯТОРА И КАБЕЛИ (LH2/4.6A) CADILLAC - STS 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25781867 SHIELD, BAT HT DW29 2010-2010 01
003 COVER, BAT POS CBL TERM (ЧАСТЬ OF 4) 2008-2010
004 25831921 CABLE, BAT POS (INCLS 3, 7) (ACDelco #25831921) DW (LH2, JJB) 2010-2010 01
006 11504568 ГАЙКА, HEX M5X0.8 PREV TORQ INSERT 9 ZC (STRTR SOL CBL) 2008-2010 01
007 12146809 COVER, GEN WIRE TERM (ЧАСТЬ OF 4) (BLACK) (TERMINAL BOOT COVER) (2.343) DW (LH2) 2009-2010 01
008 11609843 ГАЙКА, BAT WIRE (8.915) D29 (JJB) 2009-2010 01
009 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (ЧАСТЬ OF 10) 2008-2010 02
010 25783791 TRAY, BAT (INCLS 9) DW 2008-2010 01
011 11516589 SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (AIR INL) 2008-2010 03
012 11516589 SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (BAT TRAY) 2008-2010 05
013 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BAT TRAY) 2008-2010 02
014 25867297 RETAINER, BAT HOLDN DW 2010-2010 01
015 11589407 БОЛТ, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (BAT HOLDN RET) 2008-2010 01
016 88864523 АККУМУЛЯТОР, (CCA 660) (TOP POST) ( 277X174X190) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (PROFESSIONAL - 7 YR) DW29 2010-2010 01
017 11562004 БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (BAT CBL TERM) 2008-2010 01
018 25831929 CABLE, BAT NEG (INCLS 19, 20) (ACDelco #25831929) DW (LH2, JJB) 2010-2010 01
019 10306471 SENSOR, BAT CUR (ЧАСТЬ OF 18) DW29 (LH2, JJB) 2010-2010 01
020 19116749 COVER, BAT NEG CBL TERM (ЧАСТЬ OF 18) DW29 (LH2) 2008-2010 01
021 11589258 БОЛТ, BAT NEG CBL GND (M8X1.25X31) DW29 (LH2) 2008-2010 01
022 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (AIR INL HSG) 2008-2010 05
