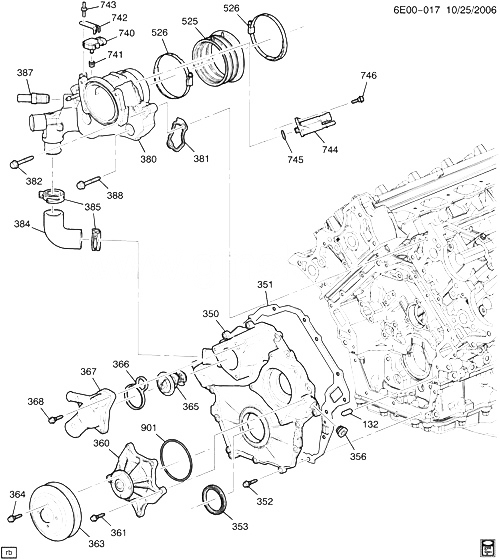

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 132 |
03525915 |
PIN, ENG FRT CVR LOC (DOWEL, 5.99X17.25, CHAM BOTH ENDS, 10.9) |
DW (LH2, JJB) |
2010-2010 |
02 |
| 350 |
89017798 |
COVER, ENG FRT (INCLS 353) |
DW (LH2, JJB) |
2010-2010 |
01 |
| 351 |
12593627 |
GASKET, ENG FRT CVR
| DW (LH2, JJB) |
2010-2010 |
01 |
|
| 352 |
11519038 |
БОЛТ-HFH, M6X1X30, 24 THD, 13.2 OD, 10.9, GMW3359, W/ADHESIVE ON THREADS (ENG FRT CVR)
|
2007-2010 |
15 |
|
| 353 |
|
SEAL, ENG FRT CVR (ЧАСТЬ OF 350) |
|
2010-2010 |
|
| 356 |
12569545 |
PLUG, ENG FRT CVR HOLE |
DW (LH2, JJB) |
2010-2010 |
01 |
| 360 |
12595614 |
PUMP, WAT (INCLS 901) (ACDelco #251-699)
| DW (LH2, JJB) (EXC KC4) |
2010-2010 |
01 |
|
| 361 |
11519038 |
БОЛТ-HFH, M6X1X30, 24 THD, 13.2 OD, 10.9, GMW3359, W/ADHESIVE ON THREADS (W/PMP)
|
2007-2010 |
05 |
|
| 363 |
12604614 |
PULLEY, W/PMP |
DW (LH2) |
2010-2010 |
01 |
| 364 |
24503961 |
БОЛТ, W/PMP PUL (M6X1.0 6G THD W/WA) (8MM SOCKET HD) |
DW (LH2) (EXC KC4) |
2010-2010 |
04 |
| 365 |
12559807 |
THERMOSTAT, ENG COOL (ACDelco #131-128)
| DW (LH2) |
2010-2010 |
01 |
|
| 366 |
12563623 |
GASKET, ENG COOL THERM (ACDelco #12563623)
| DW (LH2) |
2010-2010 |
01 |
|
| 367 |
12596643 |
ШЛАНГИ, ENG COOL THERM (ACDelco #15-80869) |
DW (LH2) |
2010-2010 |
01 |
| 368 |
11519038 |
БОЛТ-HFH, M6X1X30, 24 THD, 13.2 OD, 10.9, GMW3359, W/ADHESIVE ON THREADS (ENG COOL THERM HSG)
|
2007-2010 |
03 |
|
| 380 |
12590694 |
OUTLET, WAT (INCLS 387) (ACDelco #15-10649) |
DW (LH2) |
2010-2010 |
01 |
| 381 |
12590862 |
GASKET, WAT OTLT
| DW (LH2) |
2007-2010 |
02 |
|
| 382 |
11519170 |
БОЛТ-HFH, M8X1.25X45, 22 THD, 18 OD, 8.8, 3359GMW, REDUCED BODY. (WAT OTLT) |
|
2007-2010 |
01 |
| 384 |
12566109 |
HOSE, RAD BYPASS |
DW (LH2, JJB) (EXC KC4) |
2010-2010 |
01 |
| 385 |
15024902 |
CЛАМПА, HOSE ПРУЖИНА, 42MM - NOM SIZE, BLK (RAD BYPASS HOSE) |
|
2007-2010 |
02 |
| 387 |
|
FITTING, HTR INL HOSE (ЧАСТЬ OF 380) |
|
2010-2010 |
|
| 388 |
11519172 |
БОЛТ, HFH, 8X1.25X55, 18 OD, 22THD, 8.8, GMW3359, 6MM MATPOINT, REDUCED BODY (WAT OTLT) |
|
2007-2010 |
01 |
| 525 |
12580250 |
DUCT, LWR INT MANIF (INCLS 526) |
DW (LH2, JJB) (EXC KC4) |
2010-2010 |
01 |
| 526 |
|
CЛАМПА, LWR INT MANIF DUCT (ЧАСТЬ OF 525) |
|
2010-2010 |
|
| 740 |
09359409 |
SENSOR, MAP (INCLS 741) (ACDelco #9359409) |
D (LH2) |
2007-2010 |
01 |
| 741 |
16194007 |
SEAL, MAP SEN (ЧАСТЬ OF 740)
| DW (LH2, JJB) (EXC KC4) |
2010-2010 |
01 |
|
| 742 |
12587812 |
BRACKET, MAP SEN |
DW (LH2, JJB) (EXC KC4) |
2010-2010 |
01 |
| 743 |
11518950 |
STUD, HFH, M6X1X16, M6X1X14, 34.7 TL, 13 O.D., 10.9, GMW3359 (MAP SEN)
|
2007-2010 |
01 |
|
| 744 |
12608378 |
VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 745) (ACDelco #214-2125) |
DW (LH2, JJB) (EXC KC4) |
2010-2010 |
01 |
| 744 |
12608378 |
VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 745) (ACDelco #214-2125) |
DW (LH2, JJB, KC4) |
2010-2010 |
01 |
| 744 |
12611801 |
VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 745) (ACDelco #214-1685)
| D |
2008-2010 |
01 |
|
| 745 |
|
SEAL, EVAP EMIS CNSTR PURGE SOL VLV (O RING) (ЧАСТЬ OF 744) |
|
2010-2010 |
|
| 746 |
11519941 |
БОЛТ, HFH W/SHLDR, M6X1X22, 13.8 THD, 15 OD, 9.8, 6280M, MACH, DOG-PT (SOL VLV) |
|
2007-2010 |
01 |
| 901 |
12563877 |
SEAL, W/PMP CVR (O RING) (ЧАСТЬ OF 360)
| DW (LH2) |
2010-2010 |
01 |
|
