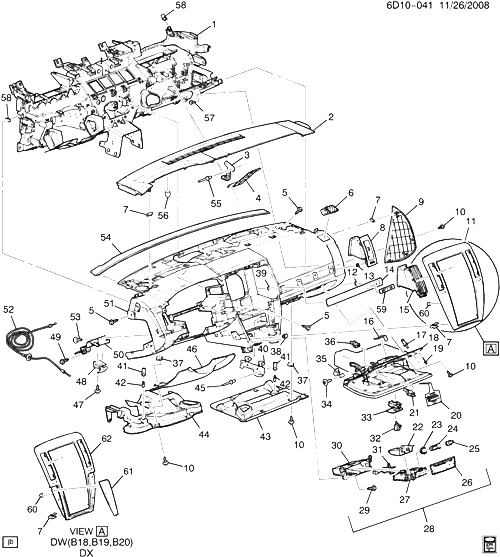

(6D10-041) - 2008-2009 DW,DX29 ПРИБОРНАЯ ПАНЕЛЬ ЧАСТЬ 1 CADILLAC - STS 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 КРОНШТЕЙН, INST PNL (СМ. ГРУППУ 10.000 ПРИБОРНАЯ ПАНЕЛЬ, ЧАСТЬ 3 ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2008-2009
002 15297051 GRILLE, W/S DEFR NOZ (INCLS 7, 56) (CASHMERE) DW29 (W21, 39I) (EXC UV6) 2008-2009 01
002 25772896 GRILLE, W/S DEFR NOZ (INCLS 7, 56) (EBONY) DW29 (13I, 19I) (EXC UV6) 2008-2009 01
002 25772896 GRILLE, W/S DEFR NOZ (INCLS 7, 56) (EBONY) DX29 (13I, 19I, 67I) (EXC UV6) 2008-2009 01
002 25772897 GRILLE, W/S DEFR NOZ (INCLS 7, 56) (EBONY) DW29 (UV6, 13I, 19I) 2008-2009 01
002 25772897 GRILLE, W/S DEFR NOZ (INCLS 7, 56) (EBONY) DX29 (UV6, 13I, 19I, 67I) 2008-2009 01
002 25774060 GRILLE, W/S DEFR NOZ (INCLS 7, 56) (CASHMERE) DW (32I) (EXC UV6, W21) 2008-2009 01
002 25774061 GRILLE, W/S DEFR NOZ (INCLS 7, 56) (CASHMERE) DW (UV6, 32I) (EXC W21) 2008-2009 01
003 25749217 BRACKET, PASS COMPT INFL RST DISCRM SEN (ЧАСТЬ OF 51) D29 2008-2010 02
004 25741629 BRACKET, I/P (ЧАСТЬ OF 51) (TETHER) D29 2008-2010 02
005 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P UPR TR PAD RET) 2008-2010 08
006 10359954 GRILLE, SI WDO DEFG OTLT (BLACK) D29 (13I, 19I, 67I) 2008-2009 01
006 10359955 GRILLE, SI WDO DEFG OTLT (CASHMERE) DW29 (32I) 2008-2009 01
006 10359956 GRILLE, SI WDO DEFG OTLT (BLACK) D29 (13I, 19I, 67I) 2008-2009 01
006 10359957 GRILLE, SI WDO DEFG OTLT (CASHMERE) DW29 (32I) 2008-2009 01
006 15297047 GRILLE, SI WDO DEFG OTLT (COCOA) DW29 (39I) 2008-2009 01
006 15297048 GRILLE, SI WDO DEFG OTLT (COCOA) DW29 (39I) 2008-2009 01
007 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (ЧАСТЬ OF 2, 9, 11) 2008-2010 AR
008 15933185 DEFLECTOR, I/P OTR AIR OTLT (INCLS 13) (EBONY) DW, DX29 (13I, 19I, 67I) 2008-2009 01
008 15933186 DEFLECTOR, I/P OTR AIR OTLT (INCLS 13) (CASHMERE) DW (32I) 2008-2009 01
008 15933187 DEFLECTOR, I/P OTR AIR OTLT (INCLS 13) (COCOA) DW (39I) 2008-2009 01
009 10397587 PANEL, I/P SI TR (INCLS 7) (CASHMERE) D29 (32I) 2008-2010 01
009 10397588 PANEL, I/P SI TR (INCLS 7) (GRAY) D29 (13I) (EXPORT) 2008-2010 01
009 10397589 PANEL, I/P SI TR (INCLS 7) (EBONY) D29 (67I) 2008-2009 01
009 10397590 PANEL, I/P SI TR (INCLS 7) (CASHMERE) D29 (32I) 2008-2010 01
009 25771355 PANEL, I/P SI TR (INCLS 7) (EBONY) D29 (19I, 67I) 2008-2009 01
009 25771360 PANEL, I/P SI TR (INCLS 7) (GRAY) D29 (13I) 2008-2010 01
010 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P TR PLT) 2008-2010 12
011 15905540 PLATE, I/P ACSRY CTR TR (INCLS 7, 60) (FREQUENCY) DW (EXC B18, B19, B20) 2008-2009 01
011 25875527 PLATE, I/P ACSRY CTR TR (INCLS 7, 60) (KINETIC) (ALUM TRIM) DX 2008-2009 01
012 11501927 ГАЙКА, PUSH ON, FITS 5MM STUD, 11 OD, PC (ЧАСТЬ OF 59) 2008-2010 02
013 21995018 CLIP, I/P TR PLT (ЧАСТЬ OF 8) D29 2008-2010 AR
014 15905552 PLATE, I/P NA (OLIVE) DW 2008-2010 01
014 15941499 PLATE, I/P NA (SAPELE) DW (13I, 19I, 32I) 2008-2010 01
014 25821850 PLATE, I/P NA (BLACK) DX 2008-2009 01
015 15933411 ШЛАНГИ, I/P CTR AIR OTLT DFL (EBONY/CHROME) D29 (13I, 19I, 32I, 39I, 67I) 2008-2009 01
015 15933412 ШЛАНГИ, I/P CTR AIR OTLT DFL (EBONY/CHROME) D29 (13I, 19I, 32I, 39I, 67I) 2008-2009 01
016 STRIKER, I/P COMPT DR LAT (ЧАСТЬ OF 18) 2008-2009
017 01642528 SWITCH, I/P COMPT LP (ЧАСТЬ OF 18) D 2008-2009 01
018 25867245 COMPARTMENT, I/P (INCLS 16, 17, 19, 21, 33-35) (GRAY) DW (13I) 2008-2010 01
018 25867246 COMPARTMENT, I/P (INCLS 16, 17, 19, 21, 33-35) (EBONY) (LESS SHELF) DW (19I) 2008-2010 01
018 25867247 COMPARTMENT, I/P (INCLS 16, 17, 19, 21, 33-35) (CASHMERE) DW (32I) 2008-2009 01
018 25867248 COMPARTMENT, I/P (INCLS 16, 17, 19, 21, 33-35) (GRAY) DX (13I) 2008-2009 01
018 25867249 COMPARTMENT, I/P (INCLS 16, 17, 19, 21, 33-35) (EBONY) DW, DX (19I) 2008-2009 01
018 25867250 COMPARTMENT, I/P (INCLS 16, 17, 19, 21, 33-35) (CASHMERE) DW (39I) 2008-2009 01
018 25867251 COMPARTMENT, I/P (INCLS 16, 17, 19, 21, 33-35) (BROWN) DW (49I) 2008-2009 01
018 25867252 COMPARTMENT, I/P (INCLS 16, 17, 19, 21, 33-35) (RED) DX (67I) 2008-2009 01
019 BUMPER, I/P COMPT DR (ЧАСТЬ OF 18) 2008-2009
020 15267993 TAG, INFL RST I/P MDL CAUTION (HANGING) D29 2008-2009 01
021 10359030 ЛАМПА, CTSY (ЧАСТЬ OF 18) D29 2008-2010 01
022 25769776 ПЕПЕЛЬНИЦА, I/P LWR EXTN D29 2008-2010 01
022 25790297 TRAY, I/P LWR EXTN (ЧАСТЬ OF 28) (FELT LINED) D29 2008-2010 01
023 25749635 RETAINER, C/LTR HSG (ЧАСТЬ OF 28) (EBONY) (W/O CAP) D29 2008-2010 01
024 25776667 RECEPTACLE, C/LTR (ЧАСТЬ OF 28) (2 TERMINALS) D29 2008-2010 01
025 11516141 LIGHTER, CIG (ЧАСТЬ OF 28) (BLACK) (W/SMALL, PLASTIC KNOB END 14.0MM) D 2008-2010 01
026 DOOR, I/P ПЕПЕЛЬНИЦА (ЧАСТЬ OF 28) 2008-2009
027 RETAINER, I/P LWR EXTN COMPT (ЧАСТЬ OF 28) 2008-2009
028 25790292 TRAY, I/P LWR EXTN (INCLS 22, 26, 27, 29-31) (FREQUENCY) DW 2009-2009 01
028 25895619 ПЕПЕЛЬНИЦА, I/P (INCLS 22-27, 29-31) (ARGENT) D29 (DT4) 2008-2010 01
028 25895622 TRAY, I/P LWR EXTN (INCLS 22, 26, 27, 29-31) (ARGENT) (USED W/WOOD TRIM) DW, DX (EXC DT4) 2008-2009 01
029 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (ЧАСТЬ OF 28) 2008-2010 04
030 ШЛАНГИ, I/P ПЕПЕЛЬНИЦА (ЧАСТЬ OF 28) 2008-2009
031 CONNECTOR, WRG HARN (ЧАСТЬ OF 28) 2008-2009
032 CYLINDER, I/P COMPT DR LK (СМ. ГРУППУ 10.000 ЦИЛИНДР ЗАМКА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2008-2009
033 15820796 HANDLE, I/P COMPT DR LAT REL (ЧАСТЬ OF 18) (EBONY) (INCL HANDLE) D29 (19I, 39I, 67I) 2008-2009 01
033 15820797 HANDLE, I/P COMPT DR LAT REL (ЧАСТЬ OF 18) (GRAY) (W/HDL) D29 (13I) 2008-2009 01
033 25785769 HANDLE, I/P COMPT DR LAT REL (ЧАСТЬ OF 18) (CASHMERE) D29 (32I, 33I, 39I) 2008-2009 01
034 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (ЧАСТЬ OF 18) 2008-2010 01
035 15210582 DAMPENER, I/P COMPT DR (ЧАСТЬ OF 18) (DOMESTIC/LHD) (FOR EXPORT/RHD SEE 25816277) DX 2008-2009 01
035 15210582 DAMPENER, I/P COMPT DR (ЧАСТЬ OF 18) (DOMESTIC/LHD) (FOR EXPORT/RHD SEE 25816277) DW 2008-2010 01
036 25751846 SWITCH, R/CMPT LID DR LK SW ENABLE (JUDCO) (ACDelco #D1401F) DX (JJD) 2009-2009 01
036 25751846 SWITCH, R/CMPT LID DR LK SW ENABLE (JUDCO) (ACDelco #D1401F) DW (JJD) 2009-2010 01
037 11515638 ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (ЧАСТЬ OF 51) 2008-2010 01
038 ГАЙКА, I/P (ЧАСТЬ OF 51) 2008-2009
039 14103956 ГАЙКА, I/P LWR T/PNL (ЧАСТЬ OF 51) (5 X 1.6) (PAL NUT) (2.575) D29 2008-2010 04
040 10372395 BRACKET, I/P CTR LWR (ЧАСТЬ OF 51) D29 2008-2010 01
040 10372396 BRACKET, I/P CTR LWR (ЧАСТЬ OF 51) D29 2008-2010 01
041 25760081 ЛАМПА, CTSY (INCLS 42) (ЧАСТЬ OF 43, 44) (I/P INSULATOR) D29 2008-2010 01
042 19115807 BULB, I/P C/LP (ЧАСТЬ OF 41, 43, 44) (8.991) (ACDelco #19115807) DX29 (JJD) 2008-2009 01
042 19115807 BULB, I/P C/LP (ЧАСТЬ OF 41, 43, 44) (8.991) (ACDelco #19115807) D29 (JJD) 2008-2010 01
043 25741652 INSULATOR, I/P (INCLS 41, 42) D29 2008-2010 01
044 15899927 INSULATOR, I/P (INCLS 41, 42) D29 2008-2010 01
045 02477054 RIVET (PASS COMPT INFL RST DISCRM SEN) 2008-2010 08
046 10359876 BOLSTER, I/P DRVR KNEE (GRAY) D29 (13I) 2008-2010 01
046 10359877 BOLSTER, I/P DRVR KNEE (CASHMERE) DW (32I) (EXC W21) 2008-2009 01
046 15773975 BOLSTER, I/P DRVR KNEE (GRAY) DX (13I) 2008-2009 01
046 15773976 BOLSTER, I/P DRVR KNEE (EBONY) D29 (19I) 2008-2009 01
046 15773977 BOLSTER, I/P DRVR KNEE (TANGO) DX (67I) 2008-2009 01
046 15858049 BOLSTER, I/P DRVR KNEE (CASHMERE) DW (W21, 39I) 2008-2009 01
047 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (КАПОТ PRIM LAT REL CBL HDL) 2008-2010 02
048 25712639 HANDLE, КАПОТ PRIM LAT REL CBL DX29 (JJD) 2008-2009 01
048 25712639 HANDLE, КАПОТ PRIM LAT REL CBL DW29 (JJD) 2008-2010 01
049 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (ЧАСТЬ OF 51) 2008-2010 03
050 BRACKET, КАПОТ PRIM LAT REL CBL (ЧАСТЬ OF 51) 2008-2009
051 15773968 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (GRAY) (W/O HUD) DX (13I) (EXC UV6) 2008-2009 01
051 15773969 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (EBONY) (W/O HUD) D29 (W21, 19I) 2008-2009 01
051 15773970 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (RED) (W/O HUD) DX (67I) (EXC UV6) 2008-2009 01
051 15858057 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (COCOA) (PLATINUM) DW (39I) (EXC UV6) 2008-2010 01
051 15858059 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (EBONY) DW, DX (UV6, W21, 19I) 2008-2009 01
051 15858061 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (COCOA) (PLATINUM) DW (UV6, W21, 39I) 2008-2009 01
051 25779496 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (GRAY) (W/HUD) DX (UV6, 13I) 2008-2009 01
051 25779497 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (RED) (W/HUD) DX (UV6, 67I) 2008-2009 01
051 89045024 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (EBONY) DW (19I) (EXC UV6) 2008-2009 01
051 89045025 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (GRAY) DW (13I) (EXC UV6) 2008-2009 01
051 89045026 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (CASHMERE) DW (32I) (EXC UV6) 2008-2009 01
051 89045028 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (EBONY) DW (UV6, 19I) (EXC W21) 2008-2009 01
051 89045029 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (GRAY) DW (UV6, 13I) (EXC W21) 2008-2009 01
051 89045030 PANEL, INST (INCLS 3, 4, 37-40, 49, 50, 55) (CASHMERE) DW (UV6, 32I) (EXC W21) 2008-2009 01
052 25745994 CABLE, КАПОТ PRIM LAT REL DX (JJD) 2008-2009 01
052 25745994 CABLE, КАПОТ PRIM LAT REL DW (JJD) 2008-2010 01
053 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (КАПОТ PRIM LAT REL CBL HDL) 2008-2010 02
054 25749211 SEAL, I/P TR PAD D29 2008-2010 01
055 02477054 RIVET (ЧАСТЬ OF 51) 2008-2010 08
056 25603681 INSULATOR, I/P UPR T/PNL (ЧАСТЬ OF 2) (BLACK/RUBBER) (9.743) D29 2008-2010 AR
057 11515769 БОЛТ, HFH, M10X1.5X45, 25THD, 22.3OD, 10.9, 7114M, MACH RAISED SHOULDER (I/P LWR TR PAD BRKT) 2008-2010 02
058 11516372 ГАЙКА, U-TYPE, M5X1, MULTI THD, 2.0-5.0 PNL THK, PZ (I/P) 2008-2010 18
059 89045020 EMBLEM, I/P (INCLS 12) (DRK EUCALYPTUS) (INCLS EMBLEM, NUTS STS BADGE) DW 2008-2010 01
059 89045021 EMBLEM, I/P (INCLS 12) (EUCALYPTUS) (INCLS EMBLEM, NUTS STS BADGE) DW (32I) 2008-2010 01
059 89045022 EMBLEM, I/P (INCLS 12) (ALUMINUM) (INCLS EMBLEM, NUTS STS BADGE) DW 2008-2010 01
060 25603681 INSULATOR, I/P TR PLT (ЧАСТЬ OF 11, 62) (BLACK/RUBBER) (9.743) D29 2008-2010 11
061 25875535 PLATE, I/P ACSRY CTR TR (SAPELE) (RT WD INSERT) D29 (B19, B20) 2008-2010 01
061 25875536 PLATE, I/P ACSRY CTR TR (SAPELE) (LT WD INSERT) D29 (B19, B20) 2008-2010 01
061 25875537 PLATE, I/P ACSRY CTR TR (OLIVE) (RT WD INSERT) DX 2008-2009 01
061 25875538 PLATE, I/P ACSRY CTR TR (OLIVE) (LT WD INSERT) DX 2008-2009 01
061 25875539 PLATE, I/P ACSRY CTR TR (OLIVE) (RT WD INSERT) DW (B18) 2008-2010 01
061 25875540 PLATE, I/P ACSRY CTR TR (OLIVE) (LT WD INSERT) DW (B18) 2008-2010 01
062 25875526 PLATE, I/P ACSRY CTR TR (INCLS 7, 60) (FREQUENCY) (ALUM TRIM) DW (B18, B19, B20) 2008-2009 01
062 25875527 PLATE, I/P ACSRY CTR TR (INCLS 7, 60) (KINETIC) (ALUM TRIM) DX 2008-2009 01
