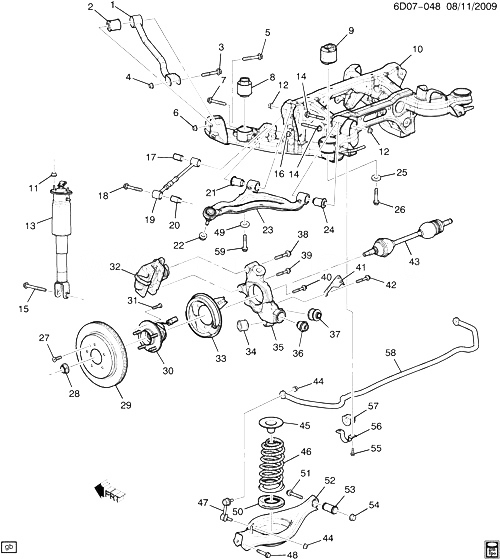

(6D07-048) - 2009-2010 D29 ЗАДНЯЯ ПОДВЕСКА CADILLAC - STS 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25716358 ARM, RR SUSP TRAILING (INCLS 2) DX29 2009-2009 01
001 25716671 ARM, RR SUSP TRAILING (INCLS 2) DW, DY29 2009-2009 01
001 25716672 ARM, RR SUSP TRAILING (INCLS 2) DW, DY29 2009-2009 01
001 25721399 ARM, RR SUSP TRAILING (INCLS 2) DX29 2009-2009 01
002 BUSHING, RR SUSP TRAILING ARM (ЧАСТЬ OF 1) 2009-2010
003 11519149 БОЛТ, RR SUSP TRAILING ARM (ЗАДНИЙ) (HFH, M14X2X90, 34 THD, 30.5 OD, 10.9, 7.3) (6.172) D29 2009-2010 02
003 11519150 БОЛТ, RR SUSP TRAILING ARM (FRT) (M14X2X100) D29 2009-2010 02
004 11516382 ГАЙКА, RR SUSP TRAILING ARM (ЗАДНИЙ) (M14X2X15) (W/O J CLIP RETAINER) (8.917) D29 2009-2010 02
005 11519149 БОЛТ, RR SUSP TRAILING ARM (ЗАДНИЙ) (HFH, M14X2X90, 34 THD, 30.5 OD, 10.9, 7.3) (6.172) D29 2009-2010 02
005 11519150 БОЛТ, RR SUSP TRAILING ARM (FRT) (M14X2X100) D29 2009-2010 02
006 11516382 ГАЙКА, RR SUSP TRAILING ARM (FRONT) (M14X2X15) (W/O J CLIP RETAINER) (8.917) D29 2009-2010 02
007 11519078 БОЛТ, RR SUSP ADJ LINK (OUTER) (M14X2X110) (W/CON WASHER) (5.506) D29 2009-2010 02
007 11519149 БОЛТ, RR SUSP ADJ LINK (INNER) (HFH, M14X2X90, 34 THD, 30.5 OD, 10.9, 7.3) (6.172) D29 2009-2010 02
008 MOUNT, RR SUSP SUPT (ЧАСТЬ OF 10) 2009-2010
009 MOUNT, RR SUSP SUPT (ЧАСТЬ OF 10) 2009-2010
010 15922191 SUPPORT, RR SUSP (AWD) (INCLS 8, 9) DW29 (MX7) 2009-2010 01
010 19210530 SUPPORT, RR SUSP (INCLS 8, 9) DW29 (JJM, MX7) 2009-2010 01
010 19210531 SUPPORT, RR SUSP (INCLS 8, 9) DX29 (JJM) 2009-2009 01
010 25821860 SUPPORT, RR SUSP (RWD) (INCLS 8, 9) DY29 (MX0) (EXPORT) 2009-2009 01
010 25821860 SUPPORT, RR SUSP (RWD) (INCLS 8, 9) DW29 (MX0) 2009-2010 01
011 11518002 NUT-HFH, M8X1.25X10, 21.8 OD, 10, 7114M (RR S/ABS) 2009-2010 04
012 11516382 ГАЙКА, RR SUSP ADJ LINK (INNER) (M14X2X15) (W/O J CLIP RETAINER) (8.917) D29 2009-2010 02
013 15148389 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #580-349) DY (FE3, F55) (EXPORT) 2009-2009 01
013 15148389 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #580-349) DW (FE3, F55) 2009-2010 01
013 15148390 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #580-348) DY (FE3, F55) (EXPORT) 2009-2009 01
013 15148390 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #580-348) DW (FE3, F55) 2009-2010 01
013 15231721 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-479) DX 2009-2009 02
013 15238517 АМОРТИЗАТОР, RR SHK (W/UPR MT) DW29 (LH2, FE1, JL9) 2009-2009 02
013 15938719 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-228) DW29 (MX7, FE1) (EXC G64) 2009-2009 02
013 15938720 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-314) DW (LLT, FE1, MX0) (EXC E5A, G64) 2009-2009 02
013 25769669 АМОРТИЗАТОР, RR SHK (W/UPR MT) DY (LH2, FE1, G64, JE5) (EXPORT) 2009-2009 02
013 25769669 АМОРТИЗАТОР, RR SHK (W/UPR MT) DY (LLT, FE1, G64, JE5, MX0) (EXC E5A) (EXPORT) 2009-2009 02
013 25769669 АМОРТИЗАТОР, RR SHK (W/UPR MT) DW (LH2, FE1, G64, JE5) 2009-2010 02
013 25769669 АМОРТИЗАТОР, RR SHK (W/UPR MT) DW (LLT, FE1, G64, JE5, MX0) (EXC E5A) 2009-2010 02
013 25795219 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-524) DY (LLT, E5A, FE1) (EXPORT) 2009-2009 02
013 25795219 АМОРТИЗАТОР, RR SHK (W/UPR MT) (ACDelco #540-524) DW (LLT, E5A, FE1) 2009-2010 02
013 25926400 АМОРТИЗАТОР, RR SHK (W/UPR MT) DY (MX7, FE1, G64) (EXPORT) 2009-2009 02
013 25926400 АМОРТИЗАТОР, RR SHK (W/UPR MT) DW (MX7, FE1, G64) 2009-2010 02
014 11516382 ГАЙКА, RR SUSP ADJ LINK (INNER) (M14X2X15) (W/O J CLIP RETAINER) (8.917) D29 2009-2010 02
015 11517901 БОЛТ-HEX, M14X2X90, 34 THD, 28 OD, 10.9, 7114, MACH, HDR-PT (RR S/ABS) 2009-2010 02
016 11516382 ГАЙКА, RR SUSP ADJ LINK (INNER) (M14X2X15) (W/O J CLIP RETAINER) (8.917) D29 2009-2010 02
017 BUSHING, RR SUSP ADJ LINK (ЧАСТЬ OF 19) 2009-2010
018 11519078 БОЛТ, RR SUSP ADJ LINK (OUTER) (M14X2X110) (W/CON WASHER) (5.506) D29 2009-2010 02
018 11519149 БОЛТ, RR SUSP ADJ LINK (INNER) (HFH, M14X2X90, 34 THD, 30.5 OD, 10.9, 7.3) (6.172) D29 2009-2010 02
019 25716355 LINK, RR SUSP ADJ (INCLS 17, 20) D29 2009-2010 02
020 BUSHING, RR SUSP ADJ LINK (ЧАСТЬ OF 19) 2009-2010
021 BUSHING, RR SUSP UPR CONT ARM (ЧАСТЬ OF 23) 2009-2010
022 11561354 NUT - HFH, M14X2, 15.9 THK, 29.6 OD, 10 STL, GMW7111M-BLACK, PREV. TOR (RR SUSP UPR CONT ARM) 2009-2010 02
023 15267619 ARM, RR SUSP UPR CONT (INCLS 21, 24) D29 2009-2010 01
023 15267620 ARM, RR SUSP UPR CONT (INCLS 21, 24) D29 2009-2010 01
024 BUSHING, RR SUSP UPR CONT ARM (ЧАСТЬ OF 23) 2009-2010
025 11588475 WASHER, RR SUSP (RR SUSP RR/FLAT W/SLOT, 14.75X86X4, GMW2M STEEL, GMW3044) DX29 2009-2009 02
025 11588475 WASHER, RR SUSP (RR SUSP RR/FLAT W/SLOT, 14.75X86X4, GMW2M STEEL, GMW3044) DY29 2009-2009 02
025 11588475 WASHER, RR SUSP (RR SUSP RR/FLAT W/SLOT, 14.75X86X4, GMW2M STEEL, GMW3044) DW29 2009-2010 02
026 11518653 БОЛТ, HFLGE, M14X2X136, 66 THD, 30.5 OD, 10.9, 7114M, MACH, DOG POINT (RR SUSP) 2009-2010 02
027 11515720 БОЛТ, RR BRK ROT (M6X1X20, 12.3 OD) (FLAT 6 LOBED) (14.5 THD) (8.908) D 2009-2010 02
028 10289657 ГАЙКА, RR WHL DRV UJT SHF (M24X2.0X19.6) (HEX W/WASHER, PREVAILING TORQUE) (6.056) D29 2009-2010 02
029 15240719 ROTOR, RR BRK (ACDelco #177-903) DW29 (JL9) 2009-2009 02
029 25750257 ROTOR, RR BRK (ACDelco #25750257) D29 (J56) 2009-2010 02
029 25846216 ROTOR, RR BRK (ACDelco #177-1017) DY29 (JE5) (EXPORT) 2009-2009 02
029 25846216 ROTOR, RR BRK (ACDelco #177-1017) DW29 (JE5) 2009-2010 02
030 15819433 HUB, RR WHL (W/WHL SPD SEN) (INCLS 31) (ACDelco #RW20-101) DX29 (J56) 2009-2009 02
030 25693148 HUB, RR WHL (W/WHL SPD SEN) (INCLS 31) (5 STUD HUB) (ACDelco #RW20-11) DY29 (JE5, JL9) (EXPORT) 2009-2009 02
030 25693148 HUB, RR WHL (W/WHL SPD SEN) (INCLS 31) (5 STUD HUB) (ACDelco #RW20-11) DW29 (JE5, JL9) 2009-2010 02
030 89047639 HUB, RR WHL (W/WHL SPD SEN) (INCLS 31) (6 STUD HUB) (ACDelco #RW20-19) DY (J56) (EXPORT) 2009-2009 02
030 89047639 HUB, RR WHL (W/WHL SPD SEN) (INCLS 31) (6 STUD HUB) (ACDelco #RW20-19) DW (J56) 2009-2010 02
031 STUD, HUB RR WHL (ЧАСТЬ OF 30) 2009-2010
032 CALIPER, RR BRK (СМ. ГРУППУ 05.000 CALIPER/ЗАДНИЙ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2009-2010
033 BRAKE, RR (СМ. ГРУППУ 05.000 СТОЯНОЧНЫЙ ТОРМОЗ ASM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2009-2010
034 BUSHING, RR SUSP TRAILING ARM (ЧАСТЬ OF 35) 2009-2010
035 88951999 KNUCKLE, RR SUSP (INCLS 34, 36, 37) D29 2009-2009 01
035 88952000 KNUCKLE, RR SUSP (INCLS 34, 36, 37) D29 2009-2009 01
036 BUSHING, RR SUSP LWR CONT ARM (ЧАСТЬ OF 35) 2009-2010
037 BUSHING, RR SUSP SUPT (ЧАСТЬ OF 35) 2009-2010
038 11518337 БОЛТ, HFH M12X1.75X75, 26.6 OD, 30 THD, 10.9, 7114M, ADH 6194M, REDUCED BODY (RR BRK CLPR BRKT) 2009-2010 02
039 11519097 БОЛТ, HFH M12X1.75X55, 26.6 OD, 30 THD, 10.9, 7114M, ADH 6194M, RED BODY. (RR BRK CLPR BRKT) 2009-2010 02
040 11519097 БОЛТ, RR WHL HUB (HFH M12X1.75X55, 26.6 OD, 30 THD, 10.9, 7114M, ADH 6194M, RED BODY.) (8.900) D29 2009-2009 06
041 25693149 BRACKET, PARK BRK CBL (ATTACHES TO RR SUSP) D 2009-2010 01
041 25693150 BRACKET, PARK BRK CBL (ATTACHES TO RR SUSP) D 2009-2010 01
042 11518842 БОЛТ, HFH M10X1.5X60, 22.3 OD, 26 THD, 10.9, 7114M, ADH 6194M, RED BODY (PARK BRK CBL BRKT) 2009-2010 04
043 SHAFT KIT, RR WHL DRV (СМ. ГРУППУ 05.000 ВАЛ ЗАДНЕЙ ОСИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2009-2010
044 11516078 ГАЙКА, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (RR STAB SHF LINK) 2009-2010 02
045 20765234 INSULATOR, RR SPR UPR D29 2009-2010 02
046 15237873 ПРУЖИНА, RR D29 (8XL, 8XR, 8XS, 9XL, 9XR, 9XS) 2009-2009 02
046 15237873 ПРУЖИНА, RR D29 (8XM, 9XM) 2009-2009 02
046 15237877 ПРУЖИНА, RR DY29 (8XT, 9XT) (EXPORT) 2009-2009 02
046 15237877 ПРУЖИНА, RR DW29 (8XT, 9XT) 2009-2010 02
046 15274274 ПРУЖИНА, RR DX29 (8XU, 9XU) 2009-2009 02
046 15921569 ПРУЖИНА, RR DX29 (8TY, 9TY) 2009-2009 02
046 20774889 ПРУЖИНА, RR DY29 (8YC, 9YC) (EXPORT) 2009-2009 02
046 20774889 ПРУЖИНА, RR DW29 (8YC, 9YC) 2009-2010 02
046 20774890 ПРУЖИНА, RR DY29 (8YB, 9YB) (EXPORT) 2009-2009 02
046 20774890 ПРУЖИНА, RR DW29 (8YB, 9YB) 2009-2010 02
046 21994126 ПРУЖИНА, RR DX29 (8XW, 9XW) 2009-2009 02
046 25772411 ПРУЖИНА, RR D29 (8XN, 9XN) 2009-2009 02
046 25772412 ПРУЖИНА, RR D29 (8XP, 9XP) 2009-2010 02
046 25783598 ПРУЖИНА, RR DY29 (8YD, 9YD) (EXPORT) 2009-2009 02
046 25783598 ПРУЖИНА, RR DW29 (8YD, 9YD) 2009-2010 02
047 15895319 LINK, RR STAB SHF D29 2009-2009 01
047 15895320 LINK, RR STAB SHF D29 2009-2009 01
048 11519707 БОЛТ, RR SUSP LWR CONT ARM (OUTER) (M14X2X76) (HEX HD W/CON WA) D29 2009-2009 02
049 11588481 WASHER, RR SUSP (RR SUSP FRT/FLAT W/SPL SLOT, 16.75X86X4.0, GMW2M-ST-S-HR1 STEEL, GMW3044) DX29 2009-2009 02
049 11588481 WASHER, RR SUSP (RR SUSP FRT/FLAT W/SPL SLOT, 16.75X86X4.0, GMW2M-ST-S-HR1 STEEL, GMW3044) DY29 2009-2009 02
049 11588481 WASHER, RR SUSP (RR SUSP FRT/FLAT W/SPL SLOT, 16.75X86X4.0, GMW2M-ST-S-HR1 STEEL, GMW3044) DW29 2009-2010 02
050 25707735 INSULATOR, RR SPR LWR D29 2009-2009 02
051 11519707 БОЛТ, RR SUSP LWR CONT ARM (OUTER) (M14X2X76) (HEX HD W/CON WA) D29 2009-2009 02
052 25716669 ARM, RR SUSP LWR CONT D29 2009-2009 01
052 25716670 ARM, RR SUSP LWR CONT D29 2009-2009 01
053 BUSHING, RR SUSP LWR CONT ARM (ЧАСТЬ OF 52) 2009-2010
054 03537773 ГАЙКА, RR SUSP LWR CONT ARM (INNER) (M14X2X11.92) (HEX W/CONICAL WA PREV TORQ) D29 2009-2009 02
055 11515764 БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (RR STAB SHF BRKT) 2009-2010 04
056 25719675 BRACKET, RR STAB SHF D29 2009-2010 02
057 25719676 INSULATOR, RR STAB SHF (22MM) (70 DURO) D29 2009-2010 02
057 25771205 INSULATOR, RR STAB SHF (23.4MM) (60 DURO) D 2009-2010 02
058 10360682 SHAFT, RR STAB (19MM HOLLOW) DW, DY29 (LH2, MX0, FE1, FE3, JE5, J56, QAF, Q12) 2009-2009 01
058 10360682 SHAFT, RR STAB (19MM HOLLOW) DW, DY29 (LLT, MX0, FE1, FE3, JE5, J56, JJM, QAF, Q12) 2009-2009 01
058 10360682 SHAFT, RR STAB (19MM HOLLOW) DW29 (LH2, MX7, FE1, FE3, J56, QAF) 2009-2010 01
058 10360682 SHAFT, RR STAB (19MM HOLLOW) DW29 (LLT, MX7, FE1, FE3, QKP, Q12) 2009-2010 01
058 25754987 SHAFT, RR STAB (20MM HOLLOW) DY (LH2, MX7, FE1, FE3, JE5, Q12) (EXPORT) 2009-2009 01
058 25754987 SHAFT, RR STAB (20MM HOLLOW) DW (LH2, MX7, FE1, FE3, JE5, Q12) 2009-2010 01
058 25758259 SHAFT, RR STAB (17MM HOLLOW) DY (MX0, FE1, FE3, JL9, QKP) (EXPORT) 2009-2009 01
058 25758259 SHAFT, RR STAB (17MM HOLLOW) DW (MX0, FE1, FE3, JL9, QKP) 2009-2010 01
058 25771204 SHAFT, RR STAB (25.4MM HOLLOW) DX 2009-2009 01
059 11518927 БОЛТ, RR SUSP (FRONT) (M16X2X136) (8.900) DX 2009-2009 02
059 11518927 БОЛТ, RR SUSP (FRONT) (M16X2X136) (8.900) DY 2009-2009 02
059 11518927 БОЛТ, RR SUSP (FRONT) (M16X2X136) (8.900) DW 2009-2010 02
