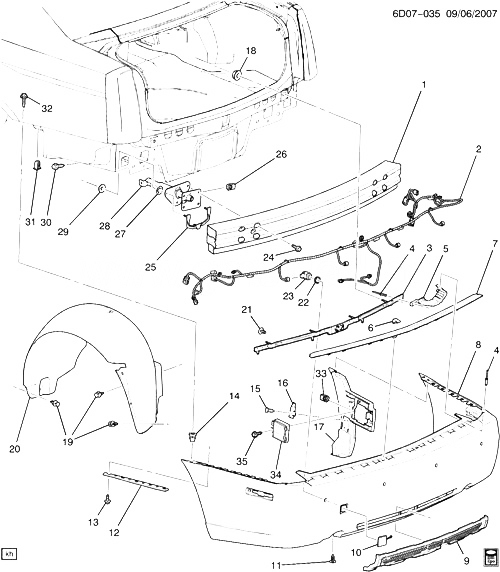

(6D07-035) - 2008-2009 DW,DY29 БАМПЕР ЗАДНИЙ CADILLAC - STS 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25764180 BAR, RR BPR IMP DY (EXPORT) 2008-2009 01
001 25764180 BAR, RR BPR IMP DW (T79) (EXPORT) 2008-2010 01
001 25832902 BAR, RR BPR IMP DW (EXC T79) 2008-2010 01
002 20827832 HARNESS, B/U ALARM WRG DW (EXC T79, UFT, UH3) 2008-2010 01
002 25774147 HARNESS, B/U ALARM WRG DW29 (T79, UH3) (EXPORT) 2008-2009 01
002 25774147 HARNESS, B/U ALARM WRG DY29 (UH3) 2008-2009 01
002 25908129 HARNESS, B/U ALARM WRG DW29 (UFT) (EXC T79, UH3) 2008-2010 01
002 25979681 HARNESS, B/U ALARM WRG DY29 (EXC UH3) (EXPORT) 2008-2009 01
002 25979681 HARNESS, B/U ALARM WRG DW29 (T79) (EXC UH3) (EXPORT) 2008-2010 01
003 RETAINER, RR BPR FASCIA (*KIT1) 2008-2009
004 10125439 RIVET, FLAT HD, 3 LEG EXPANSION, M4.8 SHAFT, 23.5 LG, 9.8 O.D., AL (RR BPR FASCIA OTR BRKT) (*KIT1) 2008-2010 06
005 SUPPORT, RR BPR FASCIA UPR (*KIT1) 2008-2009
006 RETAINER, RR BPR FASCIA MLDG 2008-2010
006 11562364 RETAINER, RR BPR FASCIA MLDG (18X10X11.6) (1.269) DW 2008-2009 08
006 11562364 RETAINER, RR BPR FASCIA MLDG (18X10X11.6) (1.269) DY (EXPORT) 2008-2009 08
007 25794551 MOLDING, RR BPR FASCIA DW 2009-2009 01
007 25794551 MOLDING, RR BPR FASCIA DY (EXPORT) 2009-2009 01
008 FASCIA, RR BPR (INCLS 9, 10, 17) 2008-2010
008 19180573 FASCIA, RR BPR (INCLS 9, 10, 17) (W/O CHROME STRIP) DW (T79) (EXPORT) 2008-2009 01
008 19180573 FASCIA, RR BPR (INCLS 9, 10, 17) (W/O CHROME STRIP) DY (EXPORT) 2008-2009 01
008 19180574 FASCIA, RR BPR (INCLS 9, 10, 17) (W/O CHROME STRIP) DW (EXC T79, UH3) 2008-2009 01
009 INSERT, RR BPR FASCIA (ЧАСТЬ OF 8) 2008-2009
010 19167946 COVER, RR BPR FASCIA TOW HOOK ACC HOLE (ЧАСТЬ OF 8) (КРАСКА TO MATCH) D29 2008-2010 01
011 10121502 RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (RR BPR FASCIA (PUSH IN)) 2008-2010 03
012 25728878 BRACKET, RR BPR FASCIA D29 2008-2009 01
012 25728879 BRACKET, RR BPR FASCIA D29 2008-2009 01
013 11519116 БОЛТ, WASHER, M6.3X1.8X20, 14 THD, 17 OD, GM6010M, 7153M (RR BPR FASCIA BRKT) 2008-2010 10
014 25536302 ГАЙКА, RR BPR FASCIA (4.2 X 1.41) (TAPPING NUT) (3.430) D29 2008-2010 02
015 24574578 RETAINER, RR BPR FASCIA REINF (PUSH IN) (LENGTH 18.0) (3.403) D 2008-2010 04
016 RECEIVER, ШИНА PRESS IND 2008-2010
016 25740353 RECEIVER, ШИНА PRESS IND D29 (UH3) 2008-2009 02
017 REINFORCEMENT, RR BPR FASCIA (ЧАСТЬ OF 8) 2008-2009
018 11561645 ГАЙКА, HFH, M6X1X6.45, 13.5 OD, 10 STL, GMW3200 (RR BPR FASCIA) 2008-2010 04
018 20733729 WASHER, SEALING, M5, 4 I.D., 25MM O.D., 4MM THK, RUB (RR BPR FASCIA) 2008-2010 04
019 11589293 RETAINER, PUSH-IN, FITS 8.5 DIA HOLE, 4.5-7 THK PNL, NYLON 6/6 GMP.PA66.0 (RR W/H PNL LNR) 2008-2010 14
020 25848123 LINER, RR W/H PNL D29 2008-2010 01
020 25848124 LINER, RR W/H PNL D29 2008-2010 01
021 10121502 RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (RR BPR FASCIA REINF (PUSH IN)) 2008-2010 02
022 RETAINER, RR OBJECT SEN 2008-2009
023 SENSOR, RR OBJECT 2008-2009
024 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (RR BPR IMP BAR) 2008-2010 08
025 PLATE, RR BPR ENGY ABS STUD (ЧАСТЬ OF 28) 2008-2009
026 11518444 ГАЙКА, U, M8X1.25, 25X14.2, 3.4-6.3 PNL, 1050, 6173M (ЧАСТЬ OF 28) 2008-2010 04
027 10009923 ГАЙКА, БОЛТ RETAINING ПРУЖИНА, M8X1.25, 25 O.D., ZOR (ЧАСТЬ OF 28) 2008-2010 02
028 15243700 АМОРТИЗАТОР, RR BPR ENGY (INCLS 25-27) (METAL E.A. UNIT) D29 2008-2009 01
028 25764183 АМОРТИЗАТОР, RR BPR ENGY (INCLS 25-27) (METAL E.A. UNIT) D29 2008-2009 01
029 11517397 ГАЙКА, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (RR BPR ENGY ABS) 2008-2010 06
030 11516611 БОЛТ, HEX HD W/CONICAL WA, M8X1, 25X30, 17 THD, 32 OD, 9.8 MAT, 7114M FIN MACH, 8MM P-POINT (RR BPR ENGY ABS) 2008-2010 02
031 25704358 RETAINER, RR BPR FASCIA (15X18X23.8) D 2008-2009 AR
032 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RR BPR FASCIA) 2008-2010 02
033 11513599 ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (SIDE OBJECT SEN) (ACDelco #11513599) 2008-2010 01
034 01999358 SENSOR, SIDE OBJECT DW (UFT) (EXC T79, UH3) 2008-2010 02
035 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (SIDE OBJECT SEN) 2008-2010 01
K01 25853225 REINFORCEMENT, RR BPR FASCIA (INCLS 3, 4, 5) DY (EXPORT) 2008-2009 01
K01 25853225 REINFORCEMENT, RR BPR FASCIA (INCLS 3, 4, 5) DW 2008-2010 01
