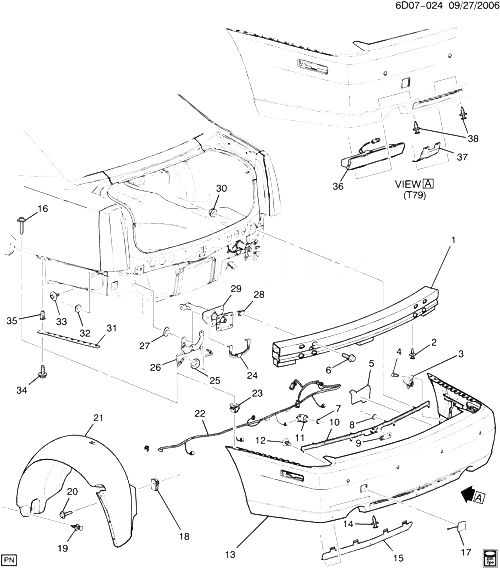

(6D07-024) - 2006-2009 DX29 БАМПЕР ЗАДНИЙ CADILLAC - STS 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25764180 BAR, RR BPR IMP DX (T79) (EXPORT) 2006-2009 01
001 25832902 BAR, RR BPR IMP DX (EXC T79) 2006-2009 01
002 11518017 RETAINER, 25 LG, 20.5 OD, 8.0 HOLE, 6.2-8.2 PNL, NYLON, 6/6, BLK (RR BPR IMP BAR) 2006-2009 04
003 25740353 RECEIVER, ШИНА PRESS IND D29 (UH3) 2006-2009 02
004 24574578 RETAINER, RR BPR FASCIA REINF (PUSH IN) (LENGTH 18.0) (3.403) D 2006-2009 04
005 15243700 АМОРТИЗАТОР, RR BPR ENGY (METAL E.A. UNIT) D29 2006-2009 01
005 25764183 АМОРТИЗАТОР, RR BPR ENGY (METAL E.A. UNIT) D29 2006-2009 01
006 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (RR BPR IMP BAR) 2006-2009 08
007 RING, RR OBJECT SEN (*KIT1) 2006-2009
008 14093869 ГАЙКА, PUSH ON, M6, 2.25THK, 12.95 O.D., STL, POR (ЧАСТЬ OF 13) 2006-2009 04
009 25888495 АНТЕННА, IGN LK KEY XMTR (RR/BPR) D29 2006-2009 01
010 RETAINER, RR BPR FASCIA (ЧАСТЬ OF 13) 2006-2009
011 SENSOR, RR OBJECT (*KIT1) 2006-2009
012 14093869 ГАЙКА, PUSH ON, M6, 2.25THK, 12.95 O.D., STL, POR (ЧАСТЬ OF 13) 2006-2009 02
013 89025756 FASCIA, RR BPR (INCLS 8, 10, 12, 17) (КРАСКА TO MATCH) DX 2006-2009 01
014 21030249 RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (RR BPR FASCIA INS) (8.950) (PUSH IN) 2006-2009 04
015 15891223 INSERT, RR BPR FASCIA DX (UFT) (EXC T79, UH3) 2008-2009 01
016 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RR BPR FASCIA) (9.665) 2006-2009 02
017 19167946 COVER, RR BPR FASCIA TOW HOOK ACC HOLE (ЧАСТЬ OF 13) (КРАСКА TO MATCH) D29 2008-2009 01
018 11515638 ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (RR W/H PNL LNR) 2006-2009 02
019 11518017 RETAINER, 25 LG, 20.5 OD, 8.0 HOLE, 6.2-8.2 PNL, NYLON, 6/6, BLK (RR W/H PNL LNR) 2006-2009 12
020 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RR W/H PNL LNR) 2006-2009 02
021 25848123 LINER, RR W/H PNL D29 2006-2009 01
021 25848124 LINER, RR W/H PNL D29 2006-2009 01
022 20827833 HARNESS, B/U ALARM WRG DX29 (T79, UH3) (EXC UFT) 2008-2009 01
022 25908129 HARNESS, B/U ALARM WRG DX29 (UFT) (EXC T79, UH3) 2008-2009 01
022 25979681 HARNESS, B/U ALARM WRG DX29 (T79) (EXC UH3) (EXPORT) 2009-2009 01
023 25536302 ГАЙКА, RR BPR FASCIA (4.2 X 1.41) (TAPPING NUT) (3.430) D29 2006-2009 02
024 PLATE, RR BPR ENGY ABS STUD (ЧАСТЬ OF 29) 2006-2009
025 15284207 INSULATOR, EXH TAIL PIPE HNGR (ЧАСТЬ OF 26) D29 2006-2009 04
026 15240254 BRACKET, EXH TAIL PIPE HNGR (INCLS 25) D29 2006-2009 01
026 25902027 BRACKET, EXH TAIL PIPE HNGR (INCLS 25) DW, DX29 2007-2009 01
027 10009923 ГАЙКА, БОЛТ RETAINING ПРУЖИНА, M8X1.25, 25 O.D., ZOR (ЧАСТЬ OF 29) 2006-2009 06
028 11518444 ГАЙКА, U, M8X1.25, 25X14.2, 3.4-6.3 PNL, 1050, 6173M (ЧАСТЬ OF 29) 2006-2009 08
029 15243700 АМОРТИЗАТОР, RR BPR ENGY (INCLS 24, 27, 28) (METAL E.A. UNIT) D29 2006-2009 01
029 25764183 АМОРТИЗАТОР, RR BPR ENGY (INCLS 24, 27, 28) (METAL E.A. UNIT) D29 2006-2009 01
030 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR BPR FASCIA) 2006-2009 04
031 25728878 BRACKET, RR BPR FASCIA D29 2006-2009 01
031 25728879 BRACKET, RR BPR FASCIA D29 2006-2009 01
032 11517397 ГАЙКА, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (RR BPR ENGY ABS) 2006-2009 06
033 11516611 БОЛТ, HEX HD W/CONICAL WA, M8X1, 25X30, 17 THD, 32 OD, 9.8 MAT, 7114M FIN MACH, 8MM P-POINT (RR BPR ENGY ABS) 2006-2009 02
034 11519116 БОЛТ, WASHER, M6.3X1.8X20, 14 THD, 17 OD, GM6010M, 7153M (RR BPR FASCIA BRKT) 2006-2009 10
035 25704358 RETAINER, RR BPR FASCIA (15X18X23.8) D 2006-2009 AR
036 09015554 ЛАМПА, RR FOG DW, DX29 (T79) 2006-2009 01
036 09015556 ЛАМПА, RR FOG DW, DX29 (T79) (EXPORT) 2006-2009 01
037 19120599 INSERT, RR BPR FASCIA DX (T79) (EXC UFT) (EXPORT) 2008-2009 01
038 11518017 RETAINER, 25 LG, 20.5 OD, 8.0 HOLE, 6.2-8.2 PNL, NYLON, 6/6, BLK (RR FOG LP (PUSH IN)) 2006-2009 04
K01 88956561 SENSOR KIT, RR OBJECT (INCLS 7, 11) (КРАСКА TO MATCH) D29 2006-2009 04
