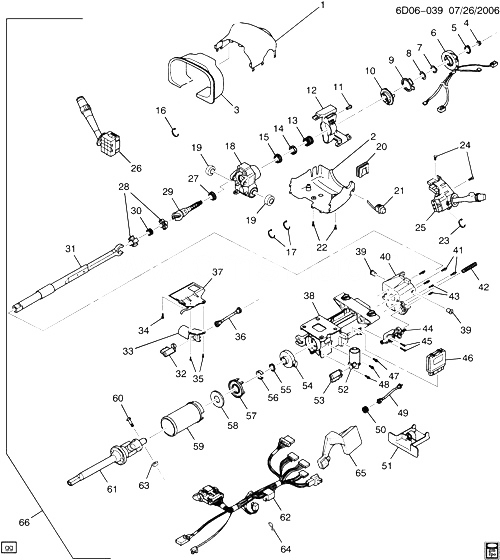

(6D06-039) - 2005-2010 D29 РУЛЕВАЯ КОЛОНКА CADILLAC - STS 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19167855 COVER KIT, STRG COL TR (INCLS 2) DW (39I) 2008-2009 01
001 19167856 COVER KIT, STRG COL TR (INCLS 2) DW29 (JL7, N31, 13I, 19I) (EXC T79, UA2) 2009-2009 01
001 19167856 COVER KIT, STRG COL TR (INCLS 2) DW29 (NP5, 13I, 19I) 2009-2009 01
001 19167856 COVER KIT, STRG COL TR (INCLS 2) DW29 (NR7, N31, 13I, 19I, 67I) (EXC JL7, T79, UA2) 2009-2009 01
001 19167856 COVER KIT, STRG COL TR (INCLS 2) DW29 (NR7, N31, T79, 13I, 19I, 67I) 2009-2009 01
001 19167856 COVER KIT, STRG COL TR (INCLS 2) DX (NR7, N31, T79, 13I, 19I, 67I) 2009-2009 01
001 19167856 COVER KIT, STRG COL TR (INCLS 2) DX29 (NR7, N31, UA6, 13I, 19I, 67I) (EXC JL7, T79) 2009-2009 01
001 19167857 COVER KIT, STRG COL TR (INCLS 2) DW29 (JL7, N31, 32I) (EXC T79, UA2) 2009-2009 01
001 19167857 COVER KIT, STRG COL TR (INCLS 2) DW29 (NP5, 32I) 2009-2009 01
001 19167857 COVER KIT, STRG COL TR (INCLS 2) DW29 (NR7, N31, 32I) (EXC JL7, T79, UA2) 2009-2009 01
001 19167857 COVER KIT, STRG COL TR (INCLS 2) DW29 (NR7, N31, T79, 32I) 2009-2009 01
001 19167857 COVER KIT, STRG COL TR (INCLS 2) DY29 (NP5, N31, T79, UA2, 13I, 19I, 32I) 2009-2009 01
002 COVER, STRG COL LWR TR (ЧАСТЬ OF 1) 2005-2010
003 89060608 SHROUD, STRG COL DW, DX29 2008-2009 01
003 89060608 SHROUD, STRG COL DY29 (EXPORT) 2008-2009 01
004 11609659 ГАЙКА, HEX M14X1.5 PLAIN GRD 9 (STRG WHL) (8.917) 2005-2010 AR
005 00274414 RING, EXT, SNAP, FITS M19 OR.75 SHAFT, STL, PL (STRG WHL INFL RST MDL РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ RET) 2005-2010 01
007 26011609 WASHER, STRG WHL INFL RST MDL РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ D 2005-2010 01
008 26049186 PLATE, T/SIG SW CANC CAM POSN (W/SHIELD) (6.521) D29 2005-2009 01
008 26049186 PLATE, T/SIG SW CANC CAM POSN (W/SHIELD) (6.521) DW, DX29 2009-2009 01
008 26049186 PLATE, T/SIG SW CANC CAM POSN (W/SHIELD) (6.521) DY29 (EXPORT) 2009-2009 01
010 26044739 CAM, T/SIG SW CANC (W/СИГНАЛ CONTACT) D29 (NP5) 2008-2009 01
010 26097073 CAM, T/SIG SW CANC D29 (NR7, N31) 2005-2009 01
010 26097073 CAM, T/SIG SW CANC DW29 (N31) 2009-2009 01
012 26094275 BRACKET, T/SIG SW D29 (EXC UA2) 2005-2010 01
013 26055299 ПРУЖИНА, STRG SHF UPR BRG DW, DX29 2008-2009 01
013 26055299 ПРУЖИНА, STRG SHF UPR BRG DY (EXPORT) 2008-2009 01
014 15231641 SEAT, STRG SHF UPR BRG RACE DW, DX 2008-2009 01
014 15231641 SEAT, STRG SHF UPR BRG RACE DY29 (EXPORT) 2008-2009 01
015 RACE, STRG COL INR 2005-2010
017 89060609 STRAP, WRG HARN D (13I, 19I, 67I) (EXC T79, UA2) 2007-2009 01
017 89060609 STRAP, WRG HARN DW29 (13I, 19I, 32I, 39I, 49I) 2009-2009 01
018 19167860 ШЛАНГИ, STRG COL (W/UPR STRG SHF) (INCLS 19) D 2009-2010 01
019 RETAINER, STRG SHF LWR BRG SEAL (ЧАСТЬ OF 18) 2005-2010
020 PROTECTOR, STRG COL LWR TR CVR 2005-2010
021 15946638 SWITCH, STRG COL TILT WHL TLSCP DW, DX29 2008-2009 01
021 15946638 SWITCH, STRG COL TILT WHL TLSCP DY29 (EXPORT) 2008-2009 01
025 01999391 SWITCH, T/SIG HDLP DIMR (W/CRUISE CONTROL) (2.895) (ACDelco #D6262C) DW29 (N31, 13I, 19I) (EXC T79, UA2) 2005-2009 01
025 01999391 SWITCH, T/SIG HDLP HDLP DIMR FOG LP (W/CRUISE CONTROL) (2.895) (ACDelco #D6262C) DW29 (NP5, 13I, 19I) (EXC T79, UA2) 2009-2009 01
025 01999391 SWITCH, T/SIG HDLP DIMR (W/CRUISE CONTROL) (ACDelco #D6262C) DW29 (EXC T79, UA2) 2005-2009 01
025 01999392 SWITCH, T/SIG HDLP HDLP DIMR FOG LP (W/CRUISE CONTROL FUNCTIONS) (ACDelco #D6384D) D29 (T79) 2005-2010 01
025 20808029 SWITCH, T/SIG HDLP HDLP DIMR FOG LP DW29 (JL7, N31) (EXC T79, UA2) 2008-2010 01
025 20808029 SWITCH, T/SIG HDLP HDLP DIMR FOG LP (2.485) DW29 (EXC T79, UA2) 2008-2010 01
026 01999309 SWITCH, WSW WSWA (ACDelco #D6377D) D29 2005-2009 01
027 26078225 BEARING, STRG COL TILT WHL ACTR DX, DW29 2008-2009 02
027 26078225 BEARING, STRG COL TILT WHL ACTR DY29 (EXPORT) 2008-2009 02
028 SPHERE KIT, STRG SHF 2008-2010
029 SHAFT, UPR STRG 2008-2010
030 26100228 ПРУЖИНА, STRG COL TILT DW, DX29 2008-2009 01
030 26100228 ПРУЖИНА, STRG COL TILT DY29 (EXPORT) 2008-2009 01
031 SHAFT, LWR STRG 2008-2010
032 89060599 SENSOR, STRG COL TILT WHL POSN DW, DX29 2008-2009 01
032 89060599 SENSOR, STRG COL TILT WHL POSN DY (EXPORT) 2008-2009 01
033 15231658 MOTOR, STRG COL TLSCP ACTR DW, DX 2008-2009 01
033 15231658 MOTOR, STRG COL TLSCP ACTR DY (EXPORT) 2008-2009 01
036 26064544 CABLE, STRG COL TLSCP ACTR DW, DX29 2008-2009 01
036 26064544 CABLE, STRG COL TLSCP ACTR DY29 (EXPORT) 2008-2009 01
037 19150334 BRACKET, STRG COL TILT WHL ACTR DW (NP5, 13I, 19I, 32I) 2009-2009 01
037 19150334 BRACKET, STRG COL TILT WHL ACTR DW29 (JL7, N31, 13I, 19I, 32I, 39I) (EXC T79, UA2) 2009-2009 01
037 19150334 BRACKET, STRG COL TILT WHL ACTR DW29 (NP5, T79, 13I, 19I, 32I) (EXC UA2) 2009-2009 01
037 19150334 BRACKET, STRG COL TILT WHL ACTR DW29 (NR7, N31, 13I, 19I, 32I, 39I, 67I) (EXC JL7, T79, UA2) 2009-2009 01
037 19150334 BRACKET, STRG COL TILT WHL ACTR DW29 (NR7, N31, T79, 13I, 19I, 67I) 2009-2009 01
037 19150334 BRACKET, STRG COL TILT WHL ACTR DW29 (NR7, N31, T79, 32I, 39I) 2009-2009 01
037 19150334 BRACKET, STRG COL TILT WHL ACTR DX29 (NR7, N31, T79, 13I, 19I, 67I) 2009-2009 01
037 19150334 BRACKET, STRG COL TILT WHL ACTR DX29 (NR7, N31, UA6, 13I, 19I, 67I) (EXC JL7, T79) 2009-2009 01
037 19150334 BRACKET, STRG COL TILT WHL ACTR DY29 (NP5, N31, T79, UA2, 13I, 19I, 32I) 2009-2009 01
037 89060614 BRACKET, STRG COL TILT WHL ACTR DW29 (NR7, N31, UA2, 32I, T79) 2008-2009 01
037 89060614 BRACKET, STRG COL TILT WHL ACTR DX29 (NR7, N31, T79, 13I, 19I, 67I) (EXC UA6) 2008-2009 01
037 89060614 BRACKET, STRG COL TILT WHL ACTR DY29 (NP5, N31, UA2, UA7, T79, 13I, 19I, 32I) (EXPORT) 2008-2009 01
038 JACKET, STRG COL 2007-2009
039 26036521 PIN, STRG COL PIV DW, DX29 2008-2009 02
039 26036521 PIN, STRG COL PIV DY29 (EXPORT) 2008-2009 02
040 26078024 SUPPORT, STRG COL HSG (INCLS TILT ACTUATOR) (COLUMN SHIFT APPLICATIONS) DX29 (UA6) 2009-2009 01
040 26078024 SUPPORT, STRG COL HSG (INCLS TILT ACTUATOR) (COLUMN SHIFT APPLICATIONS) DW29 (EXC UA2) 2009-2010 01
040 26089798 SUPPORT, STRG COL HSG DY29 (EXPORT) 2008-2009 01
040 26089798 SUPPORT, STRG COL HSG DX29 (EXC UA6) 2009-2009 01
040 26089798 SUPPORT, STRG COL HSG DW29 (UA2) 2009-2010 01
041 26064458 БОЛТ, STRG COL HSG SUPT (M6X1.0X34) D 2005-2010 04
042 26100228 ПРУЖИНА, STRG COL TILT DW, DX29 2008-2009 01
042 26100228 ПРУЖИНА, STRG COL TILT DY29 (EXPORT) 2008-2009 01
044 19167842 ACTUATOR, STRG COL TLSCP DY 2008-2009 01
044 89060596 ACTUATOR, STRG COL TLSCP DW, DX 2008-2009 01
045 26064459 БОЛТ, STRG COL TLSCP ACTR (M4.2X1.59X11.5) (W/WSHR-TORX HD) D 2005-2010 02
045 26075085 БОЛТ, STRG COL TLSCP ACTR (M8X18X25) D 2005-2010 02
045 26075531 БОЛТ, STRG COL TLSCP ACTR (M5X0.8X24) D 2005-2010 02
045 26098504 БОЛТ, STRG COL TLSCP ACTR (M6X1X18, 14THD, 11.75O) D 2005-2010 02
046 89060617 LOCK, STRG COL ELEK (6.760) DW, DX 2008-2009 01
046 89060617 LOCK, STRG COL ELEK (6.760) DY (EXPORT) 2008-2009 01
049 26078026 CABLE, STRG COL TILT WHL ACTR DW, DX29 2008-2009 01
049 26078026 CABLE, STRG COL TILT WHL ACTR DY29 (EXPORT) 2008-2009 01
050 26081434 ПРУЖИНА, STRG COL TLSCP ACTR CBL (17.97MM LONG, 5.40MM I.D.) DW, DX29 2008-2009 01
050 26081434 ПРУЖИНА, STRG COL TLSCP ACTR CBL (17.97MM LONG, 5.40MM I.D.) DY29 (EXPORT) 2008-2009 01
051 26080058 COVER, STRG COL JKT LWR (SHIELD) DW, DX29 2008-2009 01
051 26080058 COVER, STRG COL JKT LWR (SHIELD) DY29 (EXPORT) 2008-2009 01
052 15231659 MOTOR, STRG COL TILT WHL ACTR (INCLS MOTOR, SENSOR, CABLE, BRKT, AND БОЛТS) (6.521) DW, DX29 2008-2009 01
052 15231659 MOTOR, STRG COL TILT WHL ACTR (INCLS MOTOR, SENSOR, CABLE, BRKT, AND БОЛТS) (6.521) DY29 (EXPORT) 2008-2009 01
053 89060602 SENSOR, STRG COL TLSCP POSN DW, DX29 2008-2009 01
053 89060602 SENSOR, STRG COL TLSCP POSN DY29 (EXPORT) 2008-2009 01
055 26070027 RETAINER, STRG ANGLE SEN (27.82 ID, 1.27MM THK) (EXT SNAP) D29 2005-2010 01
056 ADAPTER, STRG ANGLE SEN 2005-2010
057 19167845 RETAINER, STRG SHF LWR BRG SEAL DW, DX29 2009-2009 01
057 19167845 RETAINER, STRG SHF LWR BRG SEAL DY29 (EXPORT) 2009-2009 01
060 88965503 БОЛТ, S/GR CPLG (M10X1.5X35) (FOR SERVICE USE 11515759 T/W 12345382) DW, DX29 2008-2009 01
060 88965503 БОЛТ, S/GR CPLG (M10X1.5X35) (FOR SERVICE USE 11515759 T/W 12345382) DY29 (EXPORT) 2008-2009 01
061 15212408 SHAFT, UPR INTER STRG (6.524) DW29 (EXC JL7) 2008-2009 01
061 15212408 SHAFT, UPR INTER STRG (6.524) DX29 2008-2009 01
061 15212408 SHAFT, UPR INTER STRG (6.524) DY (EXPORT) 2008-2009 01
061 15948486 SHAFT, UPR INTER STRG DW (JL7, N31) (EXC T79, UA2) 2008-2010 01
062 19167843 HARNESS, STRG COL WRG DX (T79) 2008-2009 01
062 19167843 HARNESS, STRG COL WRG DY (T79, UA2) (EXPORT) 2008-2009 01
062 19167843 HARNESS, STRG COL WRG DW (T79, UA2) 2008-2010 01
062 19167844 HARNESS, STRG COL WRG DW, DX (EXC T79, UA2) 2009-2009 01
063 11514597 ГАЙКА, S/GR CPLG (M10X1.5 6H, 21.8OD) (2.383) DW, DX 2008-2009 01
063 11514597 ГАЙКА, S/GR CPLG (M10X1.5 6H, 21.8OD) (2.383) DY (EXPORT) 2008-2009 01
064 89060606 CLIP, CONVOLUTED CDT DW, DX29 2008-2009 01
064 89060606 CLIP, CONVOLUTED CDT DY29 (EXPORT) 2008-2009 01
065 89060605 BRACKET, STRG COL TLSCP ACTR D 2005-2010 01
066 15834395 COLUMN, STRG (INCLS 1-65) (EBONY) DW (JL7, N31, 13I, 19I) (EXC T79, UA2) 2008-2010 01
066 15834398 COLUMN, STRG (INCLS 1-65) (COCOA) DW (JL7, N31, 39I) (EXC T79, UA2) 2008-2010 01
066 15929504 COLUMN, STRG (INCLS 1-65) (CASHMERE) DW (JL7, N31, 32I) (EXC T79, UA2) 2008-2010 01
066 25858663 COLUMN, STRG (INCLS 1-65) (EBONY) DY29 (NP5, T79, UA2, 13I, 19I) 2009-2009 01
066 25858664 COLUMN, STRG (INCLS 1-65) (EBONY) DY29 (N31, T79, UA2, 13I, 19I) (EXPORT) 2009-2009 01
066 25858671 COLUMN, STRG (INCLS 1-65) DW (NP5, 13I, 19I) (EXC T79, UA2) 2009-2010 01
066 25858672 COLUMN, STRG (INCLS 1-65) DW (NP5, T79, UA2, 13I, 19I) 2009-2009 01
066 25858673 COLUMN, STRG (INCLS 1-65) DW (NR7, N31, 13I, 19I, 67I) (EXC JL7, T79, UA2) 2009-2009 01
066 25858673 COLUMN, STRG (INCLS 1-65) DX (NR7, N31, UA6, 13I, 19I, 67I) (EXC JL7, T79) 2009-2009 01
066 25858674 COLUMN, STRG (INCLS 1-65) DW (NR7, N31, T79, UA2, 13I, 19I, 67I) 2009-2009 01
066 25858674 COLUMN, STRG (INCLS 1-65) DX (NR7, N31, T79, 13I, 19I, 67I) (EXC UA6) 2009-2009 01
066 25858675 COLUMN, STRG (INCLS 1-65) (EBONY) DW (NR7, N31, T79, 13I, 19I, 67I) (EXC UA2) 2009-2009 01
066 25858675 COLUMN, STRG (INCLS 1-65) (EBONY) DX (NR7, N31, T79, UA6, 13I, 19I, 67I) 2009-2009 01
066 25858676 COLUMN, STRG (INCLS 1-65) (EBONY) DW (NP5, T79, 13I, 19I) (EXC UA2) 2009-2009 01
066 25858677 COLUMN, STRG (INCLS 1-65) (COCOA) DW (NR7, N31, 39I) (EXC JL7, T79, UA2) 2009-2009 01
066 25858678 COLUMN, STRG (INCLS 1-65) DW (NR7, N31, T79, UA2, 39I) 2009-2009 01
066 25858679 COLUMN, STRG (INCLS 1-65) (COCOA) DW (NR7, N31, T79, 39I) (EXC UA2) 2009-2009 01
066 25858680 COLUMN, STRG (INCLS 1-65) (CASHMERE) DW (NP5, 32I) (EXC T79, UA2) 2009-2010 01
066 25858681 COLUMN, STRG (INCLS 1-65) DW (NP5, T79, UA2, 32I) 2009-2009 01
066 25858682 COLUMN, STRG (INCLS 1-65) (CASHMERE) DW (NR7, N31, 32I) (EXC JL7, T79, UA2) 2009-2009 01
066 25858683 COLUMN, STRG (INCLS 1-65) DW (NR7, N31, T79, UA2, 32I) 2009-2009 01
066 25858684 COLUMN, STRG (INCLS 1-65) (CASHMERE) DW (NR7, N31, T79, 32I) (EXC UA2) 2009-2009 01
066 25858685 COLUMN, STRG (INCLS 1-65) (CASHMERE) DW (NP5, T79, 32I) (EXC UA2) 2009-2009 01
066 25858686 COLUMN, STRG (INCLS 1-65) (CASHMERE) DY29 (NP5, T79, UA2, 32I) 2009-2009 01
066 25858687 COLUMN, STRG (INCLS 1-65) (CASHMERE) DY29 (N31, T79, UA2, 32I) (EXPORT) 2009-2009 01
