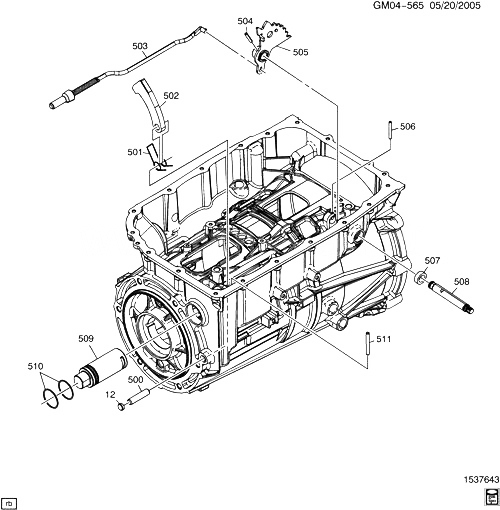

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 500 |
|
SHAFT, PARK PAWL |
|
2006-2009 |
|
| 501 |
|
ПРУЖИНА, PARK PAWL |
|
2006-2009 |
|
| 502 |
|
PAWL, PARK |
|
2006-2009 |
|
| 503 |
24242085 |
ACTUATOR, PARK PAWL (ACDelco #24242085) |
DX (MYC) |
2006-2009 |
01 |
| 504 |
24227077 |
PIN, MAN SHFT DTNT LVR HUB (ЧАСТЬ OF 505) |
DX29 (MYC) |
2006-2009 |
01 |
| 505 |
24242343 |
LEVER, MAN SHFT DTNT (INCLS 504) (ACDelco #24242343) |
D (MYC) |
2008-2009 |
01 |
| 506 |
24225792 |
PIN, MAN SHFT SHF (ACDelco #24225792) |
DX29 (MYC) |
2006-2009 |
01 |
| 507 |
24235861 |
SEAL, MAN SHFT SHF (*KIT1) (ACDelco #24235861)
| D (MYC) |
2006-2009 |
01 |
|
| 508 |
24225445 |
SHAFT, MAN SHFT (ACDelco #24225445) |
DX29 (MYC) |
2006-2009 |
01 |
| 509 |
24224348 |
GUIDE, PARK PAWL ACTR (INCLS 510) |
DX (MYC) |
2006-2009 |
01 |
| 510 |
24224350 |
SEAL, PARK PAWL ACTR GDE (O RING) (ЧАСТЬ OF 509) (*KIT1) (ACDelco #24224350) |
DX (MYC) |
2006-2009 |
02 |
| 511 |
24226102 |
PIN, PARK PAWL ACTR GDE |
DX (MYC) |
2006-2009 |
01 |
| K01 |
24248576 |
SEAL KIT, A/TRNS SERV (INCLS 507, 510) (TRANS BUILT ON 08-17-08 PRIOR) (FOR 2ND DES SEE 24248576) (FULL TRANS) (ACDelco #24248576) |
DX (MYC) |
2009-2009 |
01 |
| K01 |
24248576 |
SEAL KIT, A/TRNS SERV (INCLS 507, 510) (TRANS BUILT ON 08-18-08 AFTER) (FOR 1ST DES SEE 24237255) (FULL TRANS) (ACDelco #24248576) |
DX (MYC) |
2009-2009 |
01 |
