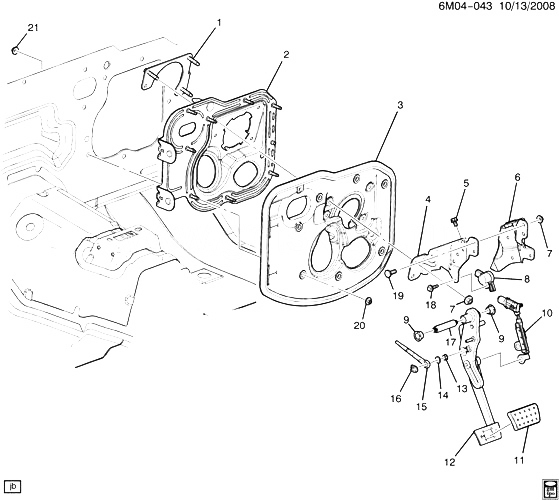

(6M04-043) - 2008-2009 DY29 ТОРМОЗНАЯ ПЕДАЛЬ CADILLAC - STS 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25675835 BRACKET, BRK PED BRKT DW, DX29 2008-2009 01
001 25690107 BRACKET, BRK PED BRKT DY29 (EXPORT) 2008-2009 01
002 15899928 REINFORCEMENT, DA PNL BRK PED BRKT DW (JL7) 2008-2009 01
002 25737951 REINFORCEMENT, DA PNL BRK PED BRKT DW (EXC JL7) 2008-2009 01
002 25737951 REINFORCEMENT, DA PNL BRK PED BRKT DX 2008-2009 01
002 25737952 REINFORCEMENT, DA PNL BRK PED BRKT DY (JJD) (EXPORT) 2008-2009 01
003 BARRIER, BRK PED BRKT SND 2008-2009
004 BRACKET, BRK PED (ЧАСТЬ OF 12) 2008-2009
005 БОЛТ, BRK PED BRKT BR (ЧАСТЬ OF 12) 2008-2009
006 BRACKET, BRK PED (ЧАСТЬ OF 12) 2008-2009
007 11514519 ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (BRK PED) 2008-2009 05
008 SENSOR, BRK PED POSN (ЧАСТЬ OF 12) 2008-2009
009 BUSHING, BRK PED PIV (ЧАСТЬ OF 12) 2008-2009
010 CABLE, BRK PED ADJR ACTR (ЧАСТЬ OF 12) 2008-2009
011 25771615 COVER, BRK PED (ЧАСТЬ OF 12) DR, DY (EXPORT) 2009-2009 01
011 25771615 COVER, BRK PED (ЧАСТЬ OF 12) DW, DX 2009-2009 01
012 15913524 PEDAL, BRK (INCLS 4-6, 8-11, 13-19) DY (EXPORT) 2008-2009 01
012 25980365 PEDAL, BRK (INCLS 4-6, 8-11, 13-19) DW, DX 2008-2009 01
013 10434956 BUSHING, BRK PED PUSH ROD (ЧАСТЬ OF 12) D 2008-2009 01
014 00410230 WASHER, ПРУЖИНА 29/64 I.D., 11/16 O.D., 5/64 THK, PL (ЧАСТЬ OF 12) 2008-2009 01
015 ROD, BRK PED PUSH (ЧАСТЬ OF 12) 2008-2009
016 03817880 RETAINER, BRK PED PUSH ROD (ЧАСТЬ OF 12) (0.80 IN) (PUSH IN) D 2008-2009 01
017 PIN, BRK PED PIV (ЧАСТЬ OF 12) 2008-2009
018 11609999 SCREW, HEX HD FL WA, M4X0.7X20, 13 THD, 12 OD, 9.8, GMW3044, W/NYLON (ЧАСТЬ OF 12) 2008-2009 01
019 БОЛТ, BAT HOLDN RET (ЧАСТЬ OF 12) 2008-2009
020 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BRK PED BRKT SND BARR) 2008-2009 05
021 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (DA PNL REINF) 2008-2009 09
