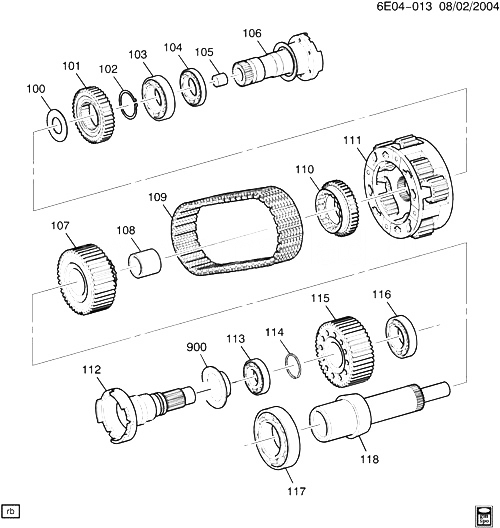

(6E04-013) - 2008-2009 DW,DY29 КОРПУС КП ЧАСТЬ 2 INTERNAL COMPONENTS(MX7) CADILLAC - STS 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 89059525 WASHER, TRFER CASE PLNT CARR SUN GR THR D29 2008-2010 01
101 88984524 GEAR, TRFER CASE PLNT CARR SUN (INPUT) (STAMPED PM/POWDERED METAL) D29 2008-2010 01
102 RING, TRFER CASE RR ВЫХОДНОЙ SHF RR BRG RET 2008-2010
102 88984493 RING, TRFER CASE RR ВЫХОДНОЙ SHF RR BRG RET (41MM I.D.) (ACDelco #88984493) D29 2008-2009 01
103 88996564 BEARING, TRFER CASE FRT ВЫХОДНОЙ SHF DRV SPKT D29 2008-2010 01
104 88996633 BEARING, TRFER CASE RR ВЫХОДНОЙ SHF RR (ACDelco #88996633) DW29 (MX7) 2008-2010 01
105 19168733 BUSHING, TRFER CASE RR ВЫХОДНОЙ SHF (ЧАСТЬ OF 106) D29 2008-2010 01
106 19178237 SHAFT, TRFER CASE RR ВЫХОДНОЙ (INCLS 105) D29 (LLT) 2008-2010 01
106 19178238 SHAFT, TRFER CASE RR ВЫХОДНОЙ (INCLS 105) DW29 (LH2, MX7) 2008-2010 01
107 19133264 SPROCKET, TRFER CASE FRT ВЫХОДНОЙ SHF DRV (INCLS 108) D29 2008-2010 01
108 19168732 BUSHING, TRFER CASE FRT ВЫХОДНОЙ SHF DRV SPKT (ЧАСТЬ OF 107) (ACDelco #19168732) D29 2008-2010 01
109 19132837 CHAIN, TRFER CASE TWO/FOUR WHL DRV DW29 (LH2) 2008-2010 01
109 89059578 CHAIN, TRFER CASE TWO/FOUR WHL DRV D29 (LLT, MX7) 2008-2010 01
110 88984523 GEAR, TRFER CASE PLNT CARR SUN (ВЫХОДНОЙ) D29 2008-2010 01
111 89059279 КРОНШТЕЙН, FRT/RR DRV DIFF D29 2008-2010 01
112 89059284 SHAFT, TRFER CASE FRT ВЫХОДНОЙ (INCLS 900) D29 2008-2010 01
113 88996664 BEARING, TRFER CASE FRT ВЫХОДНОЙ SHF RR D29 2008-2010 01
114 88996671 RING, TRFER CASE FRT ВЫХОДНОЙ SHF BRG RET D29 2008-2010 01
115 88996666 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN D29 2008-2010 01
116 88996665 BEARING, TRFER CASE MAIN SHF FRT (ВЫХОДНОЙ ВАЛ FRT) D29 2008-2010 01
117 15580230 BEARING, TRFER CASE INPUT SHF (BORG-WARNER) (4.510) DW29 (LH2, MYB) 2008-2010 01
118 19132966 SHAFT, TRFER CASE INPUT D29 (LLT, MX7) 2008-2009 01
118 19132966 SHAFT, TRFER CASE INPUT DW29 (LH2, MX7) 2008-2010 01
900 DEFLECTOR, TRFER CASE FRT ВЫХОДНОЙ SHF SEAL DIRT (ЧАСТЬ OF 112) 2008-2010
900 88996681 DEFLECTOR, TRFER CASE FRT ВЫХОДНОЙ SHF SEAL DIRT (ЧАСТЬ OF 112) D (MX7) 2008-2009 01
