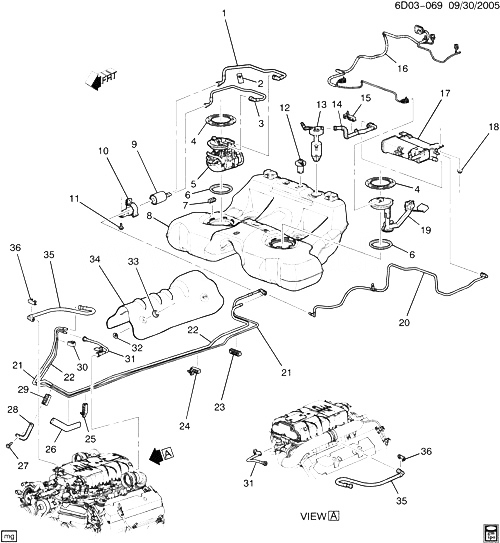

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15801814 |
PIPE, FUEL FEED RR |
DX29 (LC3) |
2009-2009 |
01 |
| 002 |
|
LABEL, FUEL FEED PIPE WRNG |
|
2006-2009 |
|
| 003 |
15801816 |
PIPE, FUEL RTN RR |
D |
2006-2009 |
01 |
| 004 |
25740096 |
CAM, FUEL SDR (ACDelco #TR23) |
DX (LC3) |
2009-2009 |
01 |
| 005 |
19177145 |
МОДУЛЬ KIT, F/TNK F/PMP (INCLS FUEL LVL SEN) (INCLS 6) |
DX29 (LC3) |
2008-2009 |
01 |
| 005 |
19177145 |
МОДУЛЬ KIT, F/TNK F/PMP (INCLS FUEL LVL SEN) (INCLS 6) (3.107) |
DX29 (LC3) |
2008-2009 |
01 |
| 006 |
25901272 |
SEAL, FUEL SDR (ЧАСТЬ OF 5, 19) (ACDelco #G37) |
D |
2006-2009 |
AR |
| 007 |
|
RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (ЧАСТЬ OF 8) |
|
2006-2009 |
|
| 008 |
25894461 |
TANK, FUEL (INCLS 7, 12-14, 33) |
D29 |
2008-2009 |
01 |
| 009 |
15831641 |
ФИЛЬТР, FUEL PRESS REG FUEL |
DX29 (LC3) |
2006-2009 |
01 |
| 010 |
25909398 |
RETAINER, FUEL FLTR |
D |
2008-2009 |
01 |
| 011 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (FUEL FLTR BRKT)
|
2006-2009 |
01 |
|
| 012 |
|
VALVE, F/TNK VENT (ЧАСТЬ OF 8) |
|
2006-2009 |
|
| 013 |
|
VALVE, F/TNK FIL HOSE CHK (ЧАСТЬ OF 8) |
|
2006-2009 |
|
| 014 |
|
VALVE, F/TNK FIL HOSE CHK (ЧАСТЬ OF 8) |
|
2006-2009 |
|
| 015 |
25751324 |
RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 7.95 9.5 DIA FUEL LINE, HAS CHRISTMAS TREE RETAINER) |
DX29 (LC3) |
2006-2009 |
01 |
| 016 |
25990101 |
HARNESS, FUEL SDR WRG (3.115) |
DX (LC3) |
2009-2009 |
01 |
| 016 |
25990101 |
HARNESS, FUEL SDR WRG |
DX (LC3) |
2009-2009 |
01 |
| 017 |
19177356 |
CANISTER, EVAP EMIS (ACDelco #215-645)
| DW, DX29 |
2008-2009 |
01 |
|
| 018 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EVAP EMIS CNSTR BRKT)
|
2006-2009 |
02 |
|
| 019 |
19151155 |
SENDER KIT, FUEL (INCLS 6) (SECONDARY МОДУЛЬ) (ACDelco #SK1307) |
D29 |
2008-2009 |
01 |
| 020 |
15801811 |
PIPE, EVAP EMIS CNSTR PURGE (ЗАДНИЙ EVAP LINE) |
DX (LC3) |
2009-2009 |
01 |
| 021 |
15216484 |
PIPE, EVAP EMIS CNSTR PURGE (INCLS 26) |
DX (LC3) |
2006-2009 |
01 |
| 022 |
15831642 |
PIPE, FUEL FEED (INCLS 26) |
DX (LC3) |
2006-2009 |
01 |
| 023 |
25688547 |
RETAINER, BRK FUEL PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) |
DX (LC3) |
2008-2009 |
01 |
| 024 |
15270078 |
RETAINER, BRK FUEL PIPE (USES RETAINER PIN FOR ATTACHMENT)
| DX29 (LC3) |
2006-2009 |
02 |
|
| 024 |
15270078 |
RETAINER, BRK FUEL PIPE (USES RETAINER PIN FOR ATTACHMENT) (3.162)
| DX29 (LC3) |
2006-2009 |
02 |
|
| 025 |
25688547 |
RETAINER, BRK FUEL PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) |
DX (LC3) |
2008-2009 |
01 |
| 025 |
25688547 |
RETAINER, BRK FUEL PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) (3.162) |
DX (LC3) |
2008-2009 |
01 |
| 026 |
|
INSULATOR, FUEL FEED EVAP EMIS RTN FRT PIPE (ЧАСТЬ OF 21, 22) |
|
2006-2009 |
|
| 027 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (FUEL FEED EVAP EMIS RTN PIPE CLIP BRKT) |
|
2006-2009 |
01 |
| 028 |
25761218 |
BRACKET, FUEL PIPE |
D |
2006-2009 |
01 |
| 029 |
25867887 |
CLIP, FUEL FEED EVAP EMIS FRT PIPE (3.162) |
DX29 (LC3) |
2009-2009 |
01 |
| 030 |
25607191 |
RETAINER, BRK PIPE (21.5X10.0MM) (HOLDS (2) 4.68-4.82 TUBES) |
DX (LC3) |
2009-2009 |
02 |
| 031 |
12604219 |
TUBE, EVAP EMIS CNSTR PURGE |
DX (LC3, MYC, JJB) |
2009-2009 |
01 |
| 032 |
25679213 |
PIN, F/TNK UPR SHLD |
D |
2006-2009 |
04 |
| 033 |
|
RETAINER, F/TNK SHLD (ЧАСТЬ OF 8) |
|
2006-2009 |
|
| 034 |
25679209 |
SHIELD, F/TNK |
D29 |
2008-2009 |
01 |
| 035 |
15773812 |
HOSE, FUEL FEED FRT |
DX (LC3, MYC, JJB) |
2009-2009 |
01 |
| 036 |
22695614 |
CLIP, FUEL FEED RTN HOSE (13 X 19 X 36MM) (ONE TUBE)
| D29 |
2008-2009 |
01 |
|
