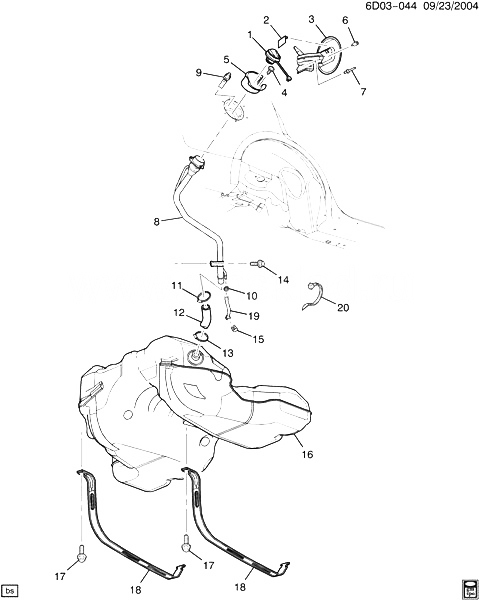

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15832215 |
CAP, F/TNK FIL (INCLUDES TETHER) (ACDelco #GT303)
| D |
2005-2010 |
01 |
|
| 002 |
|
LABEL, FUEL RECOMMENDATION |
|
2005-2010 |
|
| 003 |
15249887 |
DOOR, F/TNK FIL (INCLS 6)
| D29 |
2008-2009 |
01 |
|
| 004 |
11509374 |
БОЛТ, SCR HEX W/FL WA, SELF TAP, 4.2X1.41X16, 12.5 O.D. (F/TNK FIL PIPE) |
|
2005-2010 |
03 |
| 005 |
25716556 |
ШЛАНГИ, F/TNK FIL PIPE
| D29 |
2008-2009 |
01 |
|
| 006 |
89047657 |
BUMPER, F/TNK FIL DR (ЧАСТЬ OF 3) (HINGE)
| DW, DX, DY29 |
2008-2010 |
01 |
|
| 007 |
11609731 |
RIVET, F/TNK FIL DR (25 SHANK, .63 LEN, .50 OD, .06-.30 GRP RNG, 1008 STL, GMW3044) (8.967) |
DX |
2008-2009 |
02 |
| 007 |
11609731 |
RIVET, F/TNK FIL DR (25 SHANK, .63 LEN, .50 OD, .06-.30 GRP RNG, 1008 STL, GMW3044) (8.967) |
DY (EXPORT) |
2008-2009 |
02 |
| 007 |
11609731 |
RIVET, F/TNK FIL DR (25 SHANK, .63 LEN, .50 OD, .06-.30 GRP RNG, 1008 STL, GMW3044) (8.967) |
DW |
2008-2010 |
02 |
| 008 |
25798413 |
PIPE, F/TNK FIL (INCLS 10, 15, 19) |
DW, DX, DY |
2008-2009 |
01 |
| 009 |
25880365 |
ПРУЖИНА, F/TNK FIL DR (PRIOR TO INSTALL SEAL VOIDS IN PLUNGER HSG W/FLEXIABLE SEALER)
| D |
2005-2010 |
01 |
|
| 010 |
01470030 |
CЛАМПА, WORM TYPE (11/16 TO 1 5/16) (ЧАСТЬ OF 8) (ACDelco #1470030) |
|
2005-2010 |
01 |
| 011 |
09177063 |
CЛАМПА, F/TNK FIL HOSE (ЧАСТЬ OF 12) (25-40MM CЛАМПА RANGE) |
D |
2005-2009 |
01 |
| 012 |
15925742 |
HOSE, F/TNK FIL (INCLS 11) |
DW29 (LH2, LLT) |
2009-2009 |
01 |
| 012 |
15925742 |
HOSE, F/TNK FIL (INCLS 11) |
DX (LC3) |
2009-2009 |
01 |
| 012 |
15925742 |
HOSE, F/TNK FIL (INCLS 11) |
DY29 (LH2, LLT) (EXPORT) |
2009-2009 |
01 |
| 013 |
25711370 |
CЛАМПА, F/TNK FIL HOSE (30-45MM CЛАМПА RANGE) |
DX (LC3) |
2008-2009 |
01 |
| 013 |
25711370 |
CЛАМПА, F/TNK FIL HOSE (30-45MM CЛАМПА RANGE) |
DW, DY (LH2, LLT) |
2008-2010 |
01 |
| 014 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (F/TNK FIL PIPE BRKT)
|
2005-2010 |
01 |
|
| 015 |
15638098 |
RETAINER, FUEL RTN PIPE FTG (ЧАСТЬ OF 8) (NATURAL) (NYLON) (5/16) (7.9MM) |
D |
2005-2010 |
01 |
| 016 |
|
TANK, FUEL (W/SDR) (СМ. ГРУППУ 03.000 СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2005-2010 |
|
| 017 |
11517101 |
БОЛТ, METRIC HEX FLANGE HD, M10X1.5X50 (F/TNK STRP)
|
2005-2010 |
02 |
|
| 018 |
25679207 |
STRAP, F/TNK
| D |
2005-2010 |
02 |
|
| 019 |
|
HOSE, F/TNK VENT (ЧАСТЬ OF 8) |
|
2005-2010 |
|
| 020 |
12337820 |
STRAP, 15 TIE STRAP (F/TNK FIL PIPE) (ACDelco #12337820) |
|
2005-2010 |
01 |
