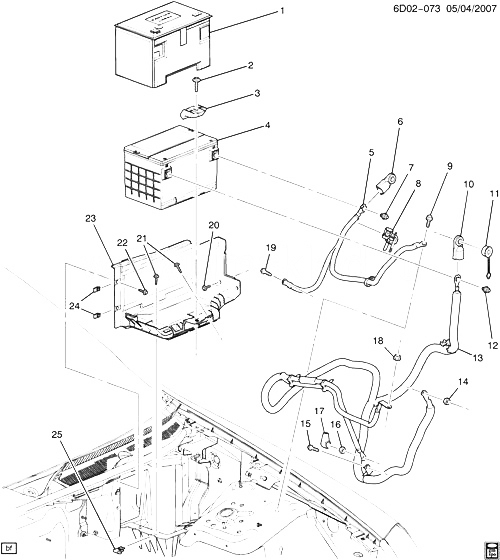

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25747792 |
INSULATOR, BAT (INSTALLED ON RH SIDE OF CAR) |
DY (EXPORT) |
2008-2009 |
01 |
| 002 |
11589407 |
БОЛТ, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (BAT HOLDN RET)
|
2008-2009 |
01 |
|
| 003 |
25867297 |
RETAINER, BAT HOLDN |
DY29 (EXPORT) |
2008-2009 |
01 |
| 004 |
88901964 |
АККУМУЛЯТОР, (CCA 650) (SIDE TERM) (260X178X168) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #101-6YR) |
DY |
2008-2009 |
01 |
| 005 |
25831928 |
CABLE, BAT NEG (INCLS 6-8) (ACDelco #25831928) |
DY (LLT) (EXPORT) |
2009-2009 |
01 |
| 006 |
19116749 |
COVER, BAT NEG CBL TERM (ЧАСТЬ OF 5) |
DY29 (LLT) (EXPORT) |
2008-2009 |
01 |
| 007 |
19115561 |
БОЛТ, HEX HD, 3/8-16X13/32, 1/4 THD, 1 5/32 TOTAL LG, 51/64 O.D., STL, ZP (ЧАСТЬ OF 5) (8.900) (ACDelco #19115561)
|
2008-2009 |
01 |
|
| 008 |
10306471 |
SENSOR, BAT CUR (ЧАСТЬ OF 5)
| DW, DY29 (LLT) |
2008-2009 |
01 |
|
| 009 |
11589258 |
БОЛТ, BAT NEG CBL GND (M8X1.25X31)
| DY29 (LLT) (EXPORT) |
2008-2009 |
01 |
|
| 012 |
19115561 |
БОЛТ, HEX HD, 3/8-16X13/32, 1/4 THD, 1 5/32 TOTAL LG, 51/64 O.D., STL, ZP (ЧАСТЬ OF 13) (8.900) (ACDelco #19115561)
|
2008-2009 |
01 |
|
| 014 |
21021808 |
ГАЙКА, STRTR SOL BAT TERM (M8X1.25X6, BRASS) (2.343)
| D |
2008-2009 |
01 |
|
| 015 |
11515770 |
БОЛТ, HFH, RED BODY, M10X1.5X50, THD 22.3, 9.8, 7114, PZOR (TRANS)
|
2008-2009 |
11 |
|
| 016 |
11609843 |
ГАЙКА, BAT WIRE (8.915) |
D29 (JJB) |
2009-2009 |
01 |
| 017 |
12146809 |
COVER, GEN WIRE TERM (ЧАСТЬ OF 13) (BLACK) (TERMINAL BOOT COVER) (2.343) |
DY29 (LLT) (EXPORT) |
2009-2009 |
01 |
| 018 |
11609412 |
ГАЙКА, BAT POS CBL (HEX W/CON WA, M8X1.25, 7.5 THK, 19 OD, 10 STL, GMW3200) (8.917)
| D |
2009-2009 |
01 |
|
| 019 |
11562004 |
БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (BAT NEG CBL GND) |
|
2008-2009 |
01 |
| 020 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BAT TRAY)
|
2008-2009 |
02 |
|
| 021 |
11516589 |
SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (BAT TRAY) |
|
2008-2009 |
05 |
| 022 |
11516589 |
SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (AIR INL) |
|
2008-2009 |
03 |
| 023 |
15796853 |
TRAY, BAT (INCLS 24) |
DY (EXPORT) |
2008-2009 |
01 |
| 024 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (ЧАСТЬ OF 23) |
|
2008-2009 |
02 |
| 025 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (AIR INL HSG) |
|
2008-2009 |
05 |
