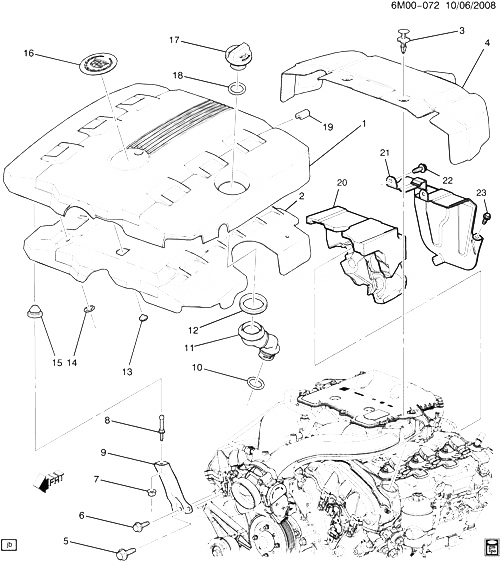

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12632150 |
COVER, INT MANIF (INCLS 2, 12-16, 19) (ДВИГАТЕЛЬ COVER) |
D (LLT, LP1, LY7) |
2008-2009 |
01 |
| 001 |
12632150 |
COVER, INT MANIF (INCLS 2, 12-16, 19) (ДВИГАТЕЛЬ COVER) (3.265) |
D (LLT, LP1, LY7) |
2008-2009 |
01 |
| 002 |
12624769 |
INSULATOR, INT MANIF CVR (ЧАСТЬ OF 1) |
D (LLT, LP1, LY7) |
2008-2009 |
01 |
| 003 |
20664092 |
RETAINER, UPR INT MANIF SIGHT SHLD (BLACK) (6.3MM DIA X 23MM) (1.276)
| D |
2008-2010 |
02 |
|
| 004 |
12603359 |
INSULATOR, INT MANIF
| D (LLT) |
2008-2010 |
01 |
|
| 005 |
11588723 |
БОЛТ, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (INT MANIF SIGHT SHLD) |
|
2008-2010 |
01 |
| 006 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (INT MANIF SIGHT SHLD) |
|
2008-2010 |
01 |
| 007 |
11516075 |
ГАЙКА, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (ЧАСТЬ OF 9)
|
2008-2010 |
01 |
|
| 008 |
11588967 |
STUD, BALL W/HFH, M6X1X20.65, 14.2 O.D., 8.8, GMW3359 (ЧАСТЬ OF 9) |
|
2008-2010 |
01 |
| 009 |
12616618 |
BRACKET, INT MANIF SIGHT SHLD (INCLS 7, 8) |
D (LLT) |
2008-2009 |
01 |
| 010 |
12593348 |
SEAL, OIL FIL TUBE (O RING) (ЧАСТЬ OF 11) (27.94MM I.D.) (SIZE #320) (1.758)
| D (LLT) |
2008-2010 |
01 |
|
| 011 |
12615294 |
TUBE, OIL FIL (INCLS 10, 17, 18)
| D (LLT) |
2008-2010 |
01 |
|
| 012 |
12591714 |
GROMMET, UPR INT MANIF SIGHT SHLD (ЧАСТЬ OF 1) (60MM OD @ TOP) (ROUND TOP BOTTOM) |
D (LLT) |
2008-2010 |
01 |
| 013 |
|
INSULATOR, F/INJR SIGHT SHLD BRKT (ЧАСТЬ OF 1) |
|
2008-2009 |
|
| 014 |
10042521 |
ГАЙКА, INT MANIF INSL (ЧАСТЬ OF 1) (7.831) |
D (LLT) |
2008-2010 |
04 |
| 015 |
12591715 |
GROMMET, UPR INT MANIF SIGHT SHLD (ЧАСТЬ OF 1) (32MM OD @ TOP) (ROUND AT TOP/TAPERED CONICAL BOTTOM) |
D (LLT) |
2008-2010 |
01 |
| 016 |
12607405 |
EMBLEM, INT MANIF CVR (ЧАСТЬ OF 1)
| D (LLT, LP1, LY7) |
2008-2009 |
01 |
|
| 017 |
12593356 |
CAP, OIL FIL (ЧАСТЬ OF 11) (ACDelco #FC221)
| D (LLT) |
2008-2009 |
01 |
|
| 018 |
12593348 |
SEAL, OIL FIL CAP (O RING) (ЧАСТЬ OF 11) (27.94MM I.D.) (SIZE #320)
| D (LLT) |
2008-2010 |
01 |
|
| 019 |
24507878 |
INSULATOR, F/INJR SIGHT SHLD BRKT (ЧАСТЬ OF 1) |
D (LLT) |
2008-2010 |
01 |
| 020 |
12630022 |
SHIELD, ENG RR NOISE |
DY (EXPORT) |
2009-2009 |
01 |
| 020 |
12630022 |
SHIELD, ENG RR NOISE |
DW |
2009-2010 |
01 |
| 021 |
|
SHIELD, FUEL PIPE |
|
2008-2010 |
|
| 022 |
11588723 |
БОЛТ, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (FUEL PIPE SHLD) |
|
2008-2010 |
02 |
| 023 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (FUEL PIPE SHLD) |
|
2008-2010 |
01 |
