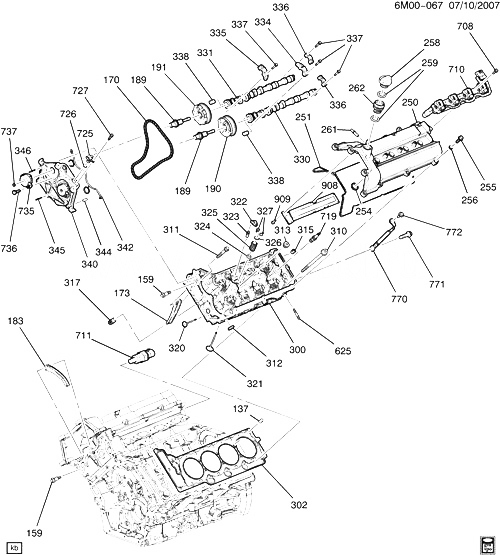

(6M00-067) - 2006-2009 DX29 ДВИГАТЕЛЬ В СБОРЕ-4.4L V8 ЧАСТЬ 2 ГОЛОВКА ЦИЛИНДРОВ ДЕТАЛИ КОМПЛЕКТА (LC3/4.4D) CADILLAC - STS 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
137 03522352 PIN, CYL HD LOC (HOLLOW DOWEL, 15.675X28, CHAM BOTH ENDS, SAE 12L14, ZP) D (LC3) 2006-2009 04
159 12553743 БОЛТ, CM/SHF INTER DRV CHAIN TENSR (HFH, 8X1.25X41.8, 16.34 THD, 19.0, 12.85 BODY, 9.8, PC MACH) D (LC3) 2006-2009 08
170 12564273 CHAIN, SECD TMG D (LC3) 2006-2009 02
173 12559389 SHOE KIT, TMG CHAIN TENSR D (LC3) 2006-2009 01
183 89017766 SHOE KIT, TMG CHAIN TENSR D (LC3) 2006-2009 01
189 12576969 VALVE, CM/SHF POSN ACTR SOL D (LC3) 2006-2009 04
190 12581497 ACTUATOR, CM/SHF POSN (EXH) DX (LC3) 2008-2009 01
190 12581498 ACTUATOR, CM/SHF POSN (EXH) DX (LC3) 2008-2009 01
191 12581499 ACTUATOR, CM/SHF POSN (INT) DX (LC3) 2008-2009 01
191 12581500 ACTUATOR, CM/SHF POSN (INT) DX (LC3) 2008-2009 01
250 12591268 COVER, CM/SHF (INCLS 251, 254-256, 261, 908, 909) D (LC3) 2006-2009 01
250 12591269 COVER, CM/SHF (INCLS 251, 254-256, 261, 908, 909) D (LC3) 2006-2009 01
251 12576394 GASKET, CM/SHF CVR (ЧАСТЬ OF 250) D (LC3) 2006-2009 01
251 12576395 GASKET, CM/SHF CVR (ЧАСТЬ OF 250) (BETWEEN HEAD AND CAM COVER) D (LC3) 2006-2009 01
254 12576396 GASKET, CM/SHF CVR (ЧАСТЬ OF 250) (СВЕЧИ HOLES) D (LC3) 2006-2009 08
255 12557829 БОЛТ, CM/SHF CVR (ЧАСТЬ OF 250) DX (LC3) 2006-2009 11
256 12573742 INSULATOR, CM/SHF CVR БОЛТ (ЧАСТЬ OF 250) D (LC3) 2006-2009 22
258 12594232 CAP, OIL FIL (INCLS CAP, SEAL) (INCLS 259) (VENTED) (*KIT1) (ACDelco #FC225) D (LC3) 2006-2009 01
259 12593348 SEAL, OIL FIL CAP (O RING) (ЧАСТЬ OF 258) (27.94MM I.D.) (SIZE #320) (*KIT1) D (LC3) 2006-2009 01
261 FITTING, PCV (ЧАСТЬ OF 250) 2006-2009
262 TUBE, OIL FIL (*KIT1) 2006-2009
300 12581869 HEAD, CYL (MCHG) (INCLS 315, 334-337) DX29 (LC3) 2006-2009 01
300 12581870 HEAD, CYL (MCHG) (INCLS 315, 334-337) DX29 (LC3) 2006-2009 01
302 12601966 GASKET, CYL HD D (LC3) 2006-2009 01
302 12613034 GASKET, CYL HD D (LC3) 2006-2009 01
310 11562349 БОЛТ, CYL HD (, M11X2X161) D (LC3) 2006-2009 20
311 01647218 БОЛТ, CYL HD (QTY 3-RH, 3-LH) (M6X1.0X50, 10.9) (HFH, MACH) DX (LC3) 2006-2009 06
312 11562126 PLUG, CYL HD CORE HOLE (CUP, 32.03X7.88X1.27, S30400 SS PER SAE J405.) D (LC3) 2006-2009 02
313 01647543 PLUG, CYL HD CORE HOLE (ROUND HEAD, INT HEX, W/ALUM WASH, 20X1.5X17, 12.25 THD, C1010 RQ) D (LC3) 2006-2009 02
315 11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ЧАСТЬ OF 300) 2006-2009 03
317 12574785 RESTRICTOR, ENG BLK OIL GAL D (LC3) 2006-2009 01
320 12578258 VALVE, EXH D (LC3) 2006-2009 16
321 12590223 VALVE, INT D (LC3) 2006-2009 16
322 12565203 ARM, VLV RKR D (LC3) 2006-2009 16
323 24100005 ADJUSTER, HYD VLV LASH (ACDelco #24100005) D (LC3) 2006-2009 32
324 12574354 SEAL, VLV STEM OIL D (LC3) 2006-2009 16
325 12565199 ПРУЖИНА, VLV D (LC3) 2006-2009 16
326 12580385 CAP, VLV SPR (INTER DRIVE) D (LC3) 2006-2009 32
327 01647209 KEY, VLV STEM D (LC3) 2006-2009 64
330 12581633 CAMSHAFT, EXH (MCHG) (INCLS 338) D (LC3) 2006-2009 01
330 12581635 CAMSHAFT, EXH (MCHG) (INCLS 338) D (LC3) 2006-2009 01
331 12581634 CAMSHAFT, INL (MCHG) (INCLS 338) D (LC3) 2006-2009 01
331 12581636 CAMSHAFT, INL (MCHG) (INCLS 338) D (LC3) 2006-2009 01
334 CAP, CM/SHF BRG (ЧАСТЬ OF 300) 2006-2009
335 CAP, CM/SHF BRG (ЧАСТЬ OF 300) 2006-2009
336 CAP, CM/SHF BRG (ЧАСТЬ OF 300) 2006-2009
337 01647553 БОЛТ, CM/SHF BRG CAP (ЧАСТЬ OF 300) (HFH, M6X1.0X39.5) D (LC3) 2006-2009 20
338 PIN, CM/SHF SPKT LOC (ЧАСТЬ OF 330, 331) 2006-2009
340 12594696 ШЛАНГИ, CM/SHF POSN ACTR (INCLS 342, 344, 345, 735-737) D (LC3) 2006-2009 01
340 12596360 ШЛАНГИ, CM/SHF POSN ACTR (INCLS 342, 344, 345, 735-737) D (LC3) 2006-2009 01
342 12567656 GASKET, CM/SHF POSN ACTR HSG (ЧАСТЬ OF 340) (0.423) D (LC3) 2006-2009 01
342 12567657 GASKET, CM/SHF POSN ACTR HSG (ЧАСТЬ OF 340) (0.423) D (LC3) 2006-2009 01
344 PIN, CM/SHF POSN ACTR HSG (ЧАСТЬ OF 340) 2006-2009
345 11518706 STUD-HFH, M6X1X13.4, M6X1X40, 14.2 OD, 60 TL, 10.9, GM6280M (NON HEX CHROME) (ЧАСТЬ OF 340) (8.981) 2006-2009 06
346 11518707 STUD, HFH, M6X1X13 / M6X1X45, 14.2 O.D., 65 TL, 9.8, GM6280M (CM/SHF POSN ACTR HSG) 2006-2009 04
625 11562490 STUD, STRAIGHT, M8X1.25X20, M8X1.25X40, 69 TL, 9.8, GMW3179, EXT HEX SOCKET (EXH MANIF) 2006-2009 04
708 11588712 БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (IGN РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ) 2006-2009 08
710 12597745 РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ, IGN (СМ. ГРУППУ 02.000 РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ МОДУЛЬ/ЗАЖИГАНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (ACDelco #D598A) D (LC3) 2007-2009 08
711 15326386 SENSOR, ENG COOL TEMP (2-WAY MALE) (3.682) (ACDelco #213-928) DX (LC3) 2008-2009 01
711 15326386 SENSOR, ENG COOL TEMP (2-WAY MALE) (ACDelco #213-928) DX (LC3) 2008-2009 01
719 12592619 СВЕЧИ, (ACDelco #41-991) (PLATINUM PLUG) D (LC3) 2006-2009 06
725 12593995 SENSOR, CM/SHF POSN (INCLS 726) (ACDelco #213-3517) D (LC3) 2007-2009 04
726 SEAL, CM/SHF POSN SEN (O RING) (ЧАСТЬ OF 725) 2006-2009
727 01647346 БОЛТ, HFH, M6X1X17, 17THD, 14.2 O.D., 8.8, ZF (CM/SHF POSN SEN) 2006-2009 04
735 12567085 MAGNET, CM/SHF POSN ACTR (ЧАСТЬ OF 340) (INCLS 737) D (LC3) 2006-2009 04
736 11518845 SCREW PAN HD, M6X1X16, 15 THD, 12 OD, 8.8, 6280M, TORX, T30, HDR PT, W/SEALANT (ЧАСТЬ OF 340) 2006-2009 06
737 12567421 PLUG, CM/SHF POSN ACTR BORE (ЧАСТЬ OF 340, 735) D (LC3) 2006-2009 02
770 12602860 HARNESS, IGN РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ WRG D29 2009-2009 01
771 11519976 БОЛТ, HFLGE, M8X1.25X20, 15.6 THD, 18 O.D., 8.8, GMW3359 (ELEK ICM WRG HARN CLIP) 2006-2009 02
772 11588337 БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CYL HD LOC) 2006-2009 02
908 BAFFLE, PCV (ЧАСТЬ OF 250) 2006-2009
909 11517094 SCREW, M5X.8X15.6, 10.4 THD, 10.2 OD, 6202M, 7114M, TAPER-POINT (ЧАСТЬ OF 250) (ACDelco #11517094) 2006-2009 14
K01 12599782 CAP, OIL FIL (INCLS OIL FILL TUBE) (INCLS 258, 259, 262) (ACDelco #FC226) D (LC3) 2006-2009 01
