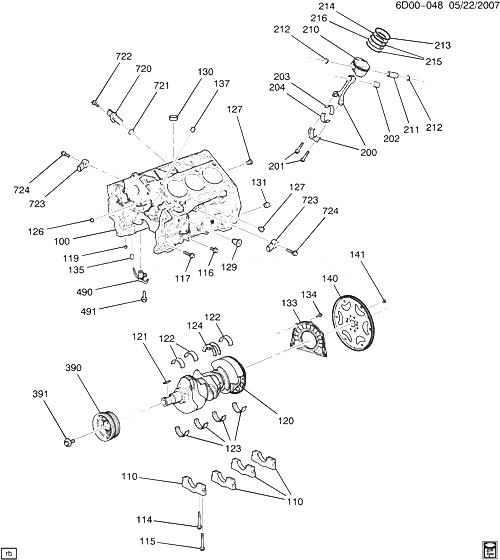

(6D00-048) - 2008-2009 DW,DY29 ДВИГАТЕЛЬ В СБОРЕ-3.6L V6 ЧАСТЬ 1 БЛОК ЦИЛИНДРОВ И ВНУТРЕННИЕ ДЕТАЛИ (LLT/3.6V) CADILLAC - STS 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 BLOCK, ENG (MCHG) 2008-2009
110 CAP, CR/SHF BRG 2008-2009
114 12560272 БОЛТ, CR/SHF BRG CAP (M10X2X102.5, 24.5) D (LLT) 2008-2010 08
115 11518861 БОЛТ, HFH, W/REDCD BODY, M8X1.25X90, 26 THD, 18 O.D., 10.9, GM4277M (CR/SHF BRG CAP) 2008-2010 08
116 11609410 БОЛТ, HFH, M8X1.25X25, 10.9, GMW3179 (CR/SHF BRG CAP) (0.056) 2008-2010 04
117 11589000 БОЛТ, HFH, M8X1.25X50, 24 THD, 18 OD, 10.9, GMW3359, RED BODY, W/ADH (CR/SHF BRG CAP) 2008-2010 04
119 12557520 PLUG, ENG BLK OIL GAL (CUP-.390IN OD, .040IN THK, STEEL) D (LLT) 2008-2010 01
120 12621352 CRANKSHAFT, D (LLT) 2008-2010 01
121 12601937 KEY, CR/SHF BALR D (LLT) 2008-2009 01
122 BEARING, CR/SHF UPR (*KIT1) 2008-2009
123 BEARING, CR/SHF LWR (*KIT1, KIT2) 2008-2009
124 BEARING, CR/SHF THR (*KIT2) 2008-2009
126 11562127 PLUG, ENG BLK OIL GAL (CUP-14.22 OD, 6.6 THK, 304SS) (0.253) D (LLT) 2008-2010 01
127 11561583 PLUG, ENG BLK OIL GAL (M14X1.5X16, 22 OD) (0.253) D (LLT) 2008-2010 04
129 11561751 PLUG, CYL HD WAT JKT HOLE (M20X1.5X30.5) (1.531) D (LLT) 2008-2009 02
130 11562127 PLUG, ENG BLK CORE HOLE (CUP-14.22 OD, 6.6 THK, 304SS) (0.253) D (LLT) 2009-2010 01
130 11569584 PLUG, ENG BLK CORE HOLE (CUP DIA 34.4MM) D (LLT) 2008-2010 02
131 12597210 PIN, TRANS LOC D (LLT, MYB) 2008-2009 02
133 12620955 SEAL, CR/SHF RR OIL D (LLT) 2008-2009 01
134 11588712 БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (CR/SHF RR OIL SEAL HSG) 2008-2010 05
135 22531637 PIN, МАСЛЯНЫЙ ПОДДОН LOC (8MM DIA, 12MM LONG) (DOWEL) (0.413) D (LLT) 2008-2010 02
137 12570326 PIN, CYL HD LOC D (LLT) 2008-2009 04
140 12603197 PLATE, A/TRNS FLEX D (LLT) 2008-2009 01
141 11518862 БОЛТ, HEX, W/ADH, M10X1X15.5, 10.9, HDR-PT (A/TRNS FLEX PLT) 2008-2010 08
200 12590584 ROD, CONN (INCLS 201, 202) D (LLT) 2008-2009 06
201 11519680 БОЛТ, CONN ROD (ЧАСТЬ OF 200) (M9X1X53) D (LLT) 2008-2009 12
202 BUSHING, CONN ROD (ЧАСТЬ OF 200) 2008-2009
203 BEARING, CONN ROD (UPPER) (*KIT4) 2008-2009
204 BEARING, CONN ROD (LOWER) (*KIT4) 2008-2009
210 12616971 PISTON, (W/PIN) (INCLS 211, 212) (STD) D (LLT) 2008-2010 03
210 12616972 PISTON, (W/PIN) (INCLS 211, 212) (STD) D (LLT) 2008-2010 03
211 PIN, PSTN (ЧАСТЬ OF 210) 2008-2009
212 12566186 RETAINER, PSTN PIN (ЧАСТЬ OF 210) D (LLT) 2008-2009 12
213 RING, PSTN CMPRN UPR (*KIT3) 2008-2009
214 RING, PSTN CMPRN LWR (*KIT3) 2008-2009
215 RAIL, PSTN OIL RING (*KIT3) 2008-2009
216 SPACER, PSTN OIL RING RL (*KIT3) 2008-2009
390 12603180 BALANCER, CR/SHF (DUAL BELT) D (LLT) 2008-2009 01
391 11569873 БОЛТ, CR/SHF BALR (M14X1.5X48.4) D (LLT) 2008-2010 01
490 12610143 NOZZLE, PSTN OIL D (LLT) 2008-2010 03
491 11588712 БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PSTN OIL NOZ) 2008-2010 03
720 12613030 SENSOR, CR/SHF POSN (INCLS 721, 722) DW, DY29 (LLT, MYB) 2009-2009 01
721 SEAL, CR/SHF POSN SEN (O RING) (ЧАСТЬ OF 720) 2008-2009
722 11562426 БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (ЧАСТЬ OF 720) 2008-2010 01
723 12605738 SENSOR, KNOCK (INCLS 724) (ACDelco #213-4404) D (LLT) 2009-2010 02
724 11519980 БОЛТ, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (ЧАСТЬ OF 723) 2008-2010 01
K01 12610603 BEARING KIT, CR/SHF (#1, 2, 4 STD) (INCLS 122, 123) D (LLT) 2008-2010 03
K02 12610604 BEARING KIT, CR/SHF (#3 STD) (INCLS 123, 124) D (LLT) 2008-2010 01
K03 12616973 RING KIT, PSTN (INCLS 213-216) D (LLT) 2008-2009 06
K04 12598657 BEARING KIT, CONN ROD (INCLS 203, 204) D (LLT) 2008-2010 06
