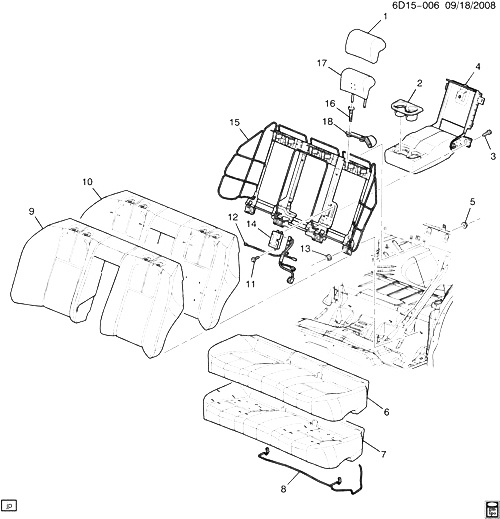

(6D15-006) - 2005-2010 D29 ЗАДНЕЕ СИДЕНЬЕ (EXC (A82)) CADILLAC - STS 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 COVER, R/SEAT CTR H/RST (ЧАСТЬ OF 17) 2005-2010
002 LINER, R/SEAT A/RST CUP HLDR (ЧАСТЬ OF 4) 2005-2010
003 22527475 SCREW, SEMS HEX W/FL WA M6.3X1.81X20 ABPT 6010M SOFT WA PZOR (R/SEAT) 2005-2010 04
004 19122904 ARMREST, R/SEAT (INCLS 2) (EBONY) DW (192) 2007-2009 01
004 19122904 ARMREST, R/SEAT (INCLS 2) (EBONY) DY (192) (EXPORT) 2008-2009 01
004 19122905 ARMREST, R/SEAT (INCLS 2) (CASHMERE) (W/COVER) DW (322) 2007-2009 01
004 19122905 ARMREST, R/SEAT (INCLS 2) (CASHMERE) (W/COVER) DY (322) (EXPORT) 2008-2009 01
004 19122906 ARMREST, R/SEAT (INCLS 2) (GRAY) DW (132) 2007-2009 01
004 19122906 ARMREST, R/SEAT (INCLS 2) (GRAY) DY (132) (EXPORT) 2008-2009 01
004 19123640 ARMREST, R/SEAT (INCLS 2) (EBONY) DX (194, 674) 2007-2009 01
004 19123641 ARMREST, R/SEAT (INCLS 2) (GRAY) DX (134) 2007-2009 01
004 88995125 ARMREST, R/SEAT (INCLS 2) (EBONY) DW (193) 2008-2009 01
004 88995125 ARMREST, R/SEAT (INCLS 2) (EBONY) DY (193) (EXPORT) 2008-2009 01
004 88995126 ARMREST, R/SEAT (INCLS 2) (CASHMERE) DW (323, 393) 2007-2009 01
004 88995273 ARMREST, R/SEAT (INCLS 2) (GRAY) DW (133) 2005-2008 01
005 11508388 ГАЙКА, HEX W/CON WA, M6X1, 23.75 O.D., 5.55THK, 9, POR (R/SEAT) (8.915) 2005-2010 04
006 19122880 COVER, R/SEAT CUSH (EBONY) DW (192) (EXC KA6) 2007-2009 01
006 19122880 COVER, R/SEAT CUSH (EBONY) DY (192) (EXC KA6) (EXPORT) 2008-2009 01
006 19122881 COVER, R/SEAT CUSH (CASHMERE) DW (322) (EXC KA6) 2007-2009 01
006 19122881 COVER, R/SEAT CUSH (CASHMERE) DY (322) (EXC KA6) (EXPORT) 2008-2009 01
006 19122882 COVER, R/SEAT CUSH (GRAY) DW (132) (EXC KA6) 2007-2009 01
006 19122882 COVER, R/SEAT CUSH (GRAY) DY (132) (EXC KA6) (EXPORT) 2008-2009 01
006 19122884 COVER, R/SEAT CUSH (EBONY) DW (KA6, 192) 2007-2009 01
006 19122884 COVER, R/SEAT CUSH (EBONY) DY (KA6, 192) (EXPORT) 2008-2009 01
006 19122885 COVER, R/SEAT CUSH (CASHMERE) DW (KA6, 322) 2007-2009 01
006 19122885 COVER, R/SEAT CUSH (CASHMERE) DY (KA6, 322) (EXPORT) 2008-2009 01
006 19122886 COVER, R/SEAT CUSH (GRAY) DW (KA6, 132) 2007-2009 01
006 19122886 COVER, R/SEAT CUSH (GRAY) DY (KA6, 132) (EXPORT) 2008-2009 01
006 19123558 COVER, R/SEAT CUSH (EBONY) DX (194) 2007-2009 01
006 19123559 COVER, R/SEAT CUSH (EBONY W/RED INSERT) DX (674) 2007-2009 01
006 19123560 COVER, R/SEAT CUSH (GRAY) DX (134) 2007-2009 01
006 88995110 COVER, R/SEAT CUSH (CASHMERE) DW (KA6, 323, 393) 2007-2009 01
006 88995110 COVER, R/SEAT CUSH (CASHMERE) DY (KA6, 323) (EXPORT) 2008-2009 01
006 88995111 COVER, R/SEAT CUSH (EBONY) DW (KA6, 193) 2008-2009 01
006 88995111 COVER, R/SEAT CUSH (EBONY) DY (KA6, 193) (EXPORT) 2008-2009 01
006 88995256 COVER, R/SEAT CUSH (EBONY) (15.000) DW (193) (EXC KA6) 2008-2009 01
006 88995256 COVER, R/SEAT CUSH (EBONY) (15.000) DY (193) (EXC KA6) (EXPORT) 2008-2009 01
006 88995257 COVER, R/SEAT CUSH (CASHMERE) (15.000) DW (323, 393) (EXC KA6) 2007-2009 01
006 88995257 COVER, R/SEAT CUSH (CASHMERE) (15.000) DY (323) (EXC KA6) (EXPORT) 2008-2009 01
006 88995258 COVER, R/SEAT CUSH (GRAY) (15.000) DW (133) (EXC KA6) 2005-2009 01
006 88995258 COVER, R/SEAT CUSH (GRAY) (15.000) DY (133) (EXC KA6) (EXPORT) 2008-2009 01
006 88995259 COVER, R/SEAT CUSH (GRAY) DW (KA6, 133) 2005-2009 01
006 88995259 COVER, R/SEAT CUSH (GRAY) DY (KA6, 133) (EXPORT) 2008-2009 01
007 19123042 PAD, R/SEAT CUSH (W/FRM) DW, DX 2007-2010 01
007 19123042 PAD, R/SEAT CUSH (W/FRM) DY (EXPORT) 2008-2009 01
008 88993003 HARNESS, R/SEAT HTR (11.610) D29 2005-2010 01
009 19122864 COVER, R/SEAT BK CUSH (EBONY) DW (192) (EXC A82, KA6) 2007-2009 01
009 19122865 COVER, R/SEAT BK CUSH (CASHMERE) DW (322) (EXC A82, KA6) 2007-2009 01
009 19122866 COVER, R/SEAT BK CUSH (GRAY) DW (132) (EXC A82, KA6) 2007-2009 01
009 19122868 COVER, R/SEAT BK CUSH (EBONY) DW (KA6, 192) (EXC A82) 2007-2009 01
009 19122869 COVER, R/SEAT BK CUSH (CASHMERE) DW (KA6, 322) (EXC A82) 2007-2009 01
009 19122870 COVER, R/SEAT BK CUSH (GRAY) DW (KA6, 132) (EXC A82) 2007-2009 01
009 88995101 COVER, R/SEAT BK CUSH (CASHMERE) DW (KA6, 323, 393) (EXC A82) 2007-2009 01
009 88995102 COVER, R/SEAT BK CUSH (EBONY) DW (KA6, 193) 2008-2009 01
009 88995249 COVER, R/SEAT BK CUSH (GRAY) DW (KA6, 133) (EXC A82) 2005-2009 01
010 88949049 PAD, R/SEAT BK CUSH D29 2005-2010 01
011 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (R/SEAT BK CUSH) 2005-2010 01
012 88993002 WIRE, R/SEAT BK CUSH PAD D29 2005-2010 01
013 11515552 ГАЙКА, HEX W/CON WA, M10X1.5X13.5, 31.75 OD, 9, ZF (R/SEAT BK CUSH BRKT) 2005-2010 04
014 25721760 МОДУЛЬ, R/SEAT HTR CONT D29 2005-2010 01
015 88995212 РАМА, R/SEAT BK CUSH DW 2005-2010 01
015 88995212 РАМА, R/SEAT BK CUSH DX 2006-2009 01
015 88995212 РАМА, R/SEAT BK CUSH DY (EXPORT) 2008-2009 01
016 88994546 GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) (11.376) DX (67I) 2008-2009 01
016 88994546 GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) (11.376) DW (19I) 2008-2009 02
016 88994546 GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) (11.376) DY (19I) (EXPORT) 2008-2009 02
016 88994608 GUIDE, R/SEAT H/RST (GRAY) (W/BUTTON) DW (13I) 2006-2009 02
016 88994609 GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) DW (32I, 39I) 2007-2009 02
016 88994609 GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) DY (32I) (EXPORT) 2008-2009 02
016 88994611 GUIDE, R/SEAT H/RST (GRAY) (W/O BUTTON) DW (13I) 2006-2009 02
016 88994612 GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) DW (32I, 39I) 2007-2009 02
016 88994612 GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) DY (32I) (EXPORT) 2008-2009 02
016 88994613 GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) DW (19I) 2008-2009 02
016 88994613 GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) DX (67I) 2008-2009 02
016 88994613 GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) DY (19I) (EXPORT) 2008-2009 02
017 19122888 RESTRAINT, R/SEAT HD (INCLS 1) (EBONY) (OUTER) DW (192) 2007-2009 02
017 19122888 RESTRAINT, R/SEAT HD (INCLS 1) (EBONY) (OUTER) DY (192) (EXPORT) 2008-2009 02
017 19122889 RESTRAINT, R/SEAT HD (INCLS 1) (GRAY) (OUTER) DW (132) 2007-2009 02
017 19122889 RESTRAINT, R/SEAT HD (INCLS 1) (GRAY) (OUTER) DY (132) (EXPORT) 2008-2009 02
017 19122890 RESTRAINT, R/SEAT HD (INCLS 1) (CASHMERE) (OUTER) DW (322) 2007-2009 02
017 19122890 RESTRAINT, R/SEAT HD (INCLS 1) (CASHMERE) (OUTER) DY (322) (EXPORT) 2008-2009 02
017 19122892 RESTRAINT, R/SEAT HD (INCLS 1) (EBONY) (CENTER) DW (192) 2007-2009 01
017 19122892 RESTRAINT, R/SEAT HD (INCLS 1) (EBONY) (CENTER) DY (192) (EXPORT) 2008-2009 01
017 19122893 RESTRAINT, R/SEAT HD (INCLS 1) (GRAY) (CENTER) DW (132) 2007-2009 01
017 19122893 RESTRAINT, R/SEAT HD (INCLS 1) (GRAY) (CENTER) DY (132) (EXPORT) 2008-2009 01
017 19122894 RESTRAINT, R/SEAT HD (INCLS 1) (CASHMERE) (CENTER) DW (322) 2007-2009 01
017 19122894 RESTRAINT, R/SEAT HD (INCLS 1) (CASHMERE) (CENTER) DY (322) (EXPORT) 2008-2009 01
017 19123620 RESTRAINT, R/SEAT HD (INCLS 1) (EBONY) (OUTER) DX (194, 674) 2007-2009 02
017 19123621 RESTRAINT, R/SEAT HD (INCLS 1) (GRAY) (OUTER) DX (134) 2007-2009 02
017 19123630 RESTRAINT, R/SEAT HD (INCLS 1) (EBONY) (CENTER) DX (194, 674) 2007-2009 01
017 19123631 RESTRAINT, R/SEAT HD (INCLS 1) (GRAY) (CENTER) DX (134) 2007-2009 01
017 88995119 RESTRAINT, R/SEAT HD (INCLS 1) (EBONY) (OUTER) DW (193) 2008-2009 02
017 88995119 RESTRAINT, R/SEAT HD (INCLS 1) (EBONY) (OUTER) DY (193) (EXPORT) 2008-2009 02
017 88995120 RESTRAINT, R/SEAT HD (INCLS 1) (CASHMERE) (OUTER) DW (323, 393) 2007-2009 02
017 88995120 RESTRAINT, R/SEAT HD (INCLS 1) (CASHMERE) (OUTER) DY (323, 393) (EXPORT) 2008-2009 02
017 88995122 RESTRAINT, R/SEAT CTR HD (INCLS 1) (EBONY) DW (193) 2008-2009 01
017 88995122 RESTRAINT, R/SEAT CTR HD (INCLS 1) (EBONY) DY (193) (EXPORT) 2008-2009 01
017 88995271 RESTRAINT, R/SEAT HD (INCLS 1) (GRAY) (OUTER) DW (133) 2005-2009 02
017 88995271 RESTRAINT, R/SEAT HD (INCLS 1) (GRAY) (OUTER) DY (133) (EXPORT) 2008-2009 02
018 19122855 GUIDE, R/SEAT SHLDR BELT (EBONY) D29 (19I) 2005-2009 01
018 19122855 GUIDE, R/SEAT SHLDR BELT (EBONY) DX (674) 2007-2009 01
018 19122856 GUIDE, R/SEAT SHLDR BELT (CASHMERE) D29 (32I) 2005-2009 01
018 19122856 GUIDE, R/SEAT SHLDR BELT (CASHMERE) DW (393) 2007-2009 01
018 19122857 GUIDE, R/SEAT SHLDR BELT (GRAY) D29 (13I) 2005-2009 01
018 19122859 GUIDE, R/SEAT SHLDR BELT (EBONY) D29 (19I) 2005-2009 01
018 19122859 GUIDE, R/SEAT SHLDR BELT (EBONY) DX (674) 2007-2009 01
018 19122860 GUIDE, R/SEAT SHLDR BELT (CASHMERE) D29 (32I) 2005-2009 01
018 19122860 GUIDE, R/SEAT SHLDR BELT (CASHMERE) DW (393) 2007-2009 01
018 19122861 GUIDE, R/SEAT SHLDR BELT (GRAY) D29 (13I) 2005-2009 01
