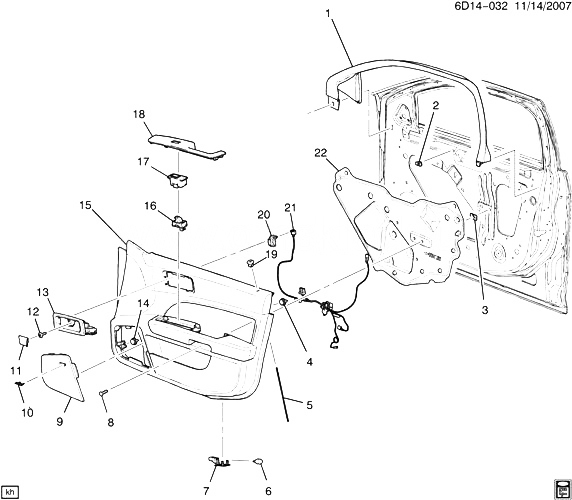

(6D14-032) - 2008-2009 DW,DX29 ОБЛИЦОВКА ПЕРЕДНЕЙ ПАССАЖИРСКОЙ ДВЕРИ CADILLAC - STS 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15265339 WEATHERSTRIP, FRT S/D WDO DX 2006-2009 01
001 15265339 WEATHERSTRIP, FRT S/D WDO DW 2006-2010 01
002 ГАЙКА, FRT S/D TR 2005-2010
002 11570654 ГАЙКА, FRT S/D TR (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) DW, DX 2006-2009 02
003 20310739 ГАЙКА, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) D29 2005-2010 04
004 11562044 RETAINER, FRT S/D T/PNL (ЧАСТЬ OF 15) (FOR 1.7 MM TO 1.9 MM THICK PANEL) (INCLS 11561600) (8.950) DW, DX 2007-2009 06
005 25799901 INDICATOR, DR LK STATUS (ЧАСТЬ OF 15) (INCLS 19) (EBONY) D29 2005-2009 02
006 19115808 BULB, FRT S/D C/LP (ЧАСТЬ OF 7, 15) (8.991) (ACDelco #19115808) D 2005-2010 02
007 10359030 ЛАМПА, CTSY (ЧАСТЬ OF 15) (INCLS 6) D 2005-2009 04
008 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (ЧАСТЬ OF 15) 2005-2010 02
009 GRILLE, RDO FRT S/D LWR SPKR (ЧАСТЬ OF 15) 2008-2009
010 EMBLEM, RDO FRT S/D SPKR GRL (ЧАСТЬ OF 9, 15) 2005-2010
010 10291759 EMBLEM, RDO FRT S/D SPKR GRL (ЧАСТЬ OF 9, 15) D29 2005-2009 02
011 10373148 COVER, FRT S/D I/S HDL BZL FIN (EBONY) DW, DX29 (13I, 19I, 49I, 67I) 2007-2009 01
011 10373150 COVER, FRT S/D I/S HDL BZL FIN (CASHMERE) DW29 (32I) 2007-2009 01
011 15774288 COVER, FRT S/D I/S HDL BZL FIN (COCOA) DW29 (39I) 2007-2008 01
012 11508231 SCREW, RD CROWNED WA HD, SELF TAP, M4.2X1.41X16, POR (FRT S/D TR) 2005-2010 02
013 10370355 HANDLE, FRT S/D I/S (ЧАСТЬ OF 15) (CASHMERE) (REQUIRES QTY 2 11501793 NUT) DW (32I) 2005-2009 01
013 10370356 HANDLE, FRT S/D I/S (ЧАСТЬ OF 15) (EBONY) (REQUIRES QTY 2 11501793 NUT) D29 (13I, 19I, 49I, 67I) 2008-2009 01
014 11562043 RETAINER, FRT S/D T/PNL (ЧАСТЬ OF 15) (FOR 0.95 MM TO 1.0 MM THICK PANEL) (INCLS 11561499) (8.950) DW, DX 2006-2009 10
015 15773705 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (GRAY) DX (134) 2006-2009 01
015 15773707 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (EBONY) DX (194) 2006-2009 01
015 15773709 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (EBONY) DX (674) 2006-2009 01
015 15853637 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (EBONY) DW (B18, 193) 2007-2009 01
015 15853640 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (COCOA) DW (B18, 393) 2007-2009 01
015 15905914 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (GRAY) DW (132) (EXC B20) 2008-2009 01
015 15905915 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (EBONY) DW (192) (EXC B20) 2008-2009 01
015 15905916 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (CASHMERE) DW (322) (EXC B20) 2008-2009 01
015 15933383 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (GRAY) DW (B20, 132) 2008-2009 01
015 15933385 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (CASHMERE) DW (B20, 322) 2008-2009 01
015 15933395 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (EBONY) DW (B20, 193) 2008-2009 01
015 15933396 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (GRAY) DW (B20, 133) 2008-2009 01
015 15933397 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (CASHMERE) DW (B20, 323) 2008-2009 01
015 20755594 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (RED) DX (674) 2006-2009 01
015 20811671 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (GRAY) DW (133) (EXC B18, B20) 2008-2009 01
015 20811672 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (CASHMERE) DW (323) (EXC BZP, B18, B20) 2008-2009 01
015 25841452 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (EBONY) DW (193) (EXC B18, B20) 2007-2009 01
015 25877003 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (EBONY) DW (BZP, 192) 2008-2008 01
015 25877004 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (CASHMERE) DW (BZP, 322) 2008-2008 01
015 25900030 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21) (EBONY) DW (B20, 132, 192) 2008-2009 01
016 25746449 SWITCH, SI WDO (FRT) (EBONY) DW 2005-2010 01
016 25746449 SWITCH, SI WDO (FRT) (EBONY) DX 2006-2009 01
017 PLATE, SI WDO SW MT (ЧАСТЬ OF 15) 2008-2009
018 15918210 BEZEL, FRT SI WDO M/FUNC SW (ЧАСТЬ OF 15) (FIGRD SAPELE) DY29 (B20, 132, 133, 192, 193, 322, 323, B19) (EXPORT) 2008-2009 01
018 15933370 BEZEL, FRT SI WDO M/FUNC SW (ЧАСТЬ OF 15) (LT EUCALYPTS) DW29 (B20, 132, 133, 192, 322, 193, 323) 2008-2009 01
018 25877011 BEZEL, FRT SI WDO M/FUNC SW (ЧАСТЬ OF 15) (BLACK) DW (BZP, 192) 2008-2008 01
018 25877012 BEZEL, FRT SI WDO M/FUNC SW (ЧАСТЬ OF 15) (CASHMERE) DW (BZP, 322) 2008-2008 01
019 25903279 BEZEL, DR LK STATUS IND (ЧАСТЬ OF 5, 15) D29 2005-2010 01
020 25746451 SWITCH, DR LK (EBONY) DW 2005-2010 01
020 25746451 SWITCH, DR LK (EBONY) DX 2006-2009 01
021 21992959 HARNESS, FRT S/D WRG (ЧАСТЬ OF 15) DW29 2005-2010 01
021 21992959 HARNESS, FRT S/D WRG (ЧАСТЬ OF 15) DX29 2006-2009 01
022 15291740 DEFLECTOR, FRT S/D WAT D29 2005-2010 01
