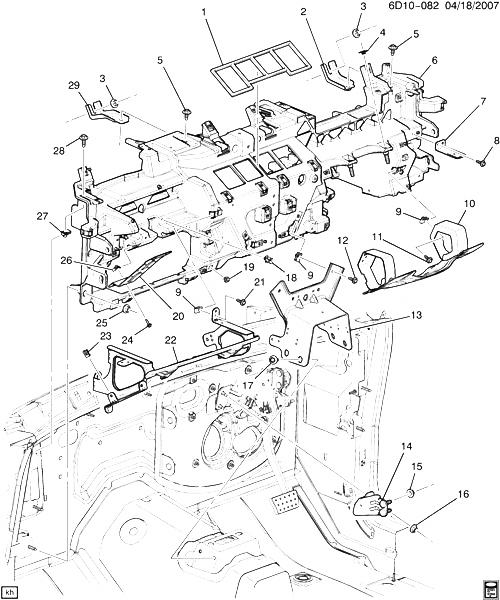

(6D10-082) - 2008-2009 DY29 ПРИБОРНАЯ ПАНЕЛЬ ЧАСТЬ 3 STRUCTURE CADILLAC - STS 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15925073 SEAL, I/P DY (EXPORT) 2008-2009 01
002 25737931 BRACKET, INST CARR OTR (FOD) D29 2008-2009 01
003 11517792 ГАЙКА, HEX W/FL WA, M8X1.25, 10.75 THK, 24 OD, 10, 7111M (I/P CARR BRKT) 2008-2009 03
004 25606907 ГАЙКА, STRG COL (M8X1.25, 7.1THK) (SQUARE) (SUPT BRKT NUT) (6.760) DY29 (EXPORT) 2008-2009 04
005 11515755 БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (INST CARR BRKT) (T/W 12345493 REPLCS 25534835) 2008-2009 03
006 10369681 КРОНШТЕЙН, INST D29 2008-2009 01
006 25737920 КРОНШТЕЙН, INST DY (EXPORT) 2008-2009 01
007 15880906 BRACKET, WRG HARN D29 2008-2009 01
008 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (INST CARR) 2008-2009 01
009 11516372 ГАЙКА, U-TYPE, M5X1, MULTI THD, 2.0-5.0 PNL THK, PZ (I/P) 2008-2009 18
010 25737936 BRACKET, I/P DRVR KNEE BOLS BRKT DY (EXPORT) 2008-2009 01
010 25855640 BRACKET, I/P DRVR KNEE BOLS BRKT D29 2008-2009 01
011 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P DRVR KNEE BOLS) 2008-2009 02
012 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (INST CARR BRKT) 2008-2009 04
013 25795382 BRACKET, I/P CARR (TO FLR, RWD) D29 2008-2009 01
013 25795383 BRACKET, I/P CARR (TO FLR, AWD) D29 2008-2009 01
014 25737926 BRACKET, STRG COL SUPT DY (EXPORT) 2008-2009 01
015 11514519 ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (STRG COL SUPT BRKT) 2008-2009 02
016 11514519 ГАЙКА, BRK PED BRKT (M8X1.25, 7.32 THK) (9510M, ZF) (8.915) D 2008-2009 02
017 11519388 БОЛТ, HX HD CON WA, M8X1.25X25, 20 THD, 24 OD, 8.8, GMW3359 (SILVER), M-POINT (INST CARR BRKT) 2008-2009 04
018 25670387 CLIP, INFL RST I/P MDL LEAD (NYLON) D29 2008-2009 03
019 25536302 ГАЙКА, I/P (4.2 X 1.41) (TAPPING NUT) (3.430) D29 2008-2009 12
020 25741629 BRACKET, I/P (TETHER) D29 2008-2009 02
021 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P PASS KNEE BOLS) 2008-2009 04
022 25753981 BRACKET, I/P PASS KNEE BOLS BRKT (INCLS 23) DY (EXPORT) 2008-2009 01
022 25792250 BRACKET, I/P PASS KNEE BOLS BRKT (INCLS 23) D29 2008-2009 01
023 11516993 ГАЙКА, M4.2X1.41 (ЧАСТЬ OF 22) 2008-2009 04
024 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P BRKT) 2008-2009 02
025 11517792 ГАЙКА, HEX W/FL WA, M8X1.25, 10.75 THK, 24 OD, 10, 7111M (I/P CARR) 2008-2009 04
026 11515638 ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (I/P) 2008-2009 10
027 11516149 ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (I/P CARR) 2008-2009 02
028 11516594 БОЛТ-HEX, M8X1.25X30, 22THD, 24MM O.D., 9.8, 7114M (INST CARR) 2008-2009 02
029 25795381 BRACKET, INST CARR (FOD, CTR) D29 2008-2009 02
