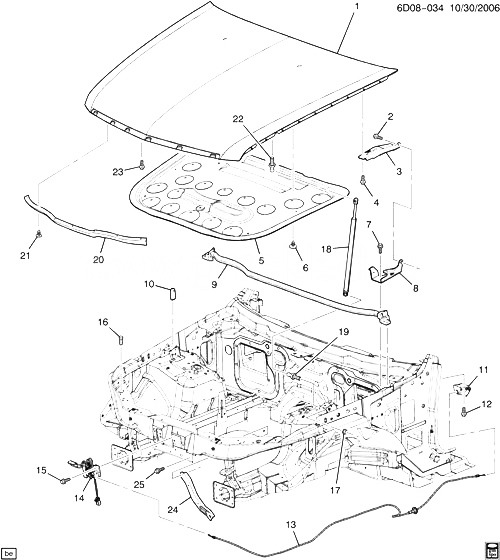

(6D08-034) - 2005-2010 D29 КАПОТ CADILLAC - STS 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89023031 КАПОТ, DY29 (EXPORT) 2008-2009 01
001 89023031 КАПОТ, DW29 2008-2010 01
001 89025819 КАПОТ, DX29 2006-2009 01
002 11561424 БОЛТ-HFH W/WASHER, 10.65X4.5 SHLDR, M6X1X27, 15 OD, 9.8 STL, GMW3179, M-P (КАПОТ HGE PIV) 2005-2010 02
003 HINGE, КАПОТ (*KIT1) 2005-2010
004 11561424 БОЛТ-HFH W/WASHER, 10.65X4.5 SHLDR, M6X1X27, 15 OD, 9.8 STL, GMW3179, M-P (КАПОТ HGE PIV) 2005-2010 04
005 15142766 INSULATOR, КАПОТ DX29 2006-2009 01
005 25797575 INSULATOR, КАПОТ DY29 (EXPORT) 2008-2009 01
005 25797575 INSULATOR, КАПОТ DW29 2008-2010 01
006 20064875 RETAINER, PUSH-IN, 20.5MMLG, 42.76MM 1.68HD DIA, PLASTIC (КАПОТ INSL) 2005-2010 07
007 11561424 БОЛТ-HFH W/WASHER, 10.65X4.5 SHLDR, M6X1X27, 15 OD, 9.8 STL, GMW3179, M-P (КАПОТ HGE PIV) 2005-2010 04
008 25833130 HINGE, КАПОТ (BODY SI) (*KIT1) DW, DX29 2007-2008 01
008 25833130 HINGE, КАПОТ (BODY SI) (*KIT1) DY29 (EXPORT) 2008-2008 01
009 10359431 SEAL, КАПОТ RR DX 2007-2009 01
009 10359431 SEAL, КАПОТ RR DW 2007-2010 01
009 10359431 SEAL, КАПОТ RR DY (EXPORT) 2008-2009 01
010 10383646 BUMPER, КАПОТ STOP (КАПОТ SIDE BUMPER) DW, DY 2008-2010 02
010 15886886 BUMPER, КАПОТ STOP DX 2006-2010 02
011 25712639 HANDLE, КАПОТ PRIM LAT REL CBL DX29 (JJD) 2008-2009 01
011 25712639 HANDLE, КАПОТ PRIM LAT REL CBL DY29 (JJD) (EXPORT) 2008-2009 01
011 25712639 HANDLE, КАПОТ PRIM LAT REL CBL DW29 (JJD) 2008-2010 01
012 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (КАПОТ PRIM LAT REL CBL HDL) 2005-2010 02
013 25745994 CABLE, КАПОТ PRIM LAT REL DX (JJD) 2008-2009 01
013 25745994 CABLE, КАПОТ PRIM LAT REL DW (JJD) 2008-2010 01
013 25745995 CABLE, КАПОТ PRIM LAT REL DY (JJD) (EXPORT) 2008-2009 01
014 25778967 LATCH, КАПОТ PRIM SECD DW29 2005-2009 01
014 25778967 LATCH, КАПОТ PRIM SECD DX29 2006-2009 01
014 25778967 LATCH, КАПОТ PRIM SECD DY29 (EXPORT) 2008-2009 01
015 11609540 БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (КАПОТ PRIM LAT) 2005-2010 03
016 25887182 BUMPER, КАПОТ ADJ FRT D29 2007-2009 02
017 11516071 ГАЙКА, M8X1.25, 7.1THK, 13.05 O.D., 10, ZC (КАПОТ OPEN ASST ROD LWR BRKT) 2005-2010 01
018 15845090 ROD, КАПОТ OPEN ASST DX29 2006-2009 02
018 15845091 ROD, КАПОТ OPEN ASST DW29 2005-2010 01
018 15845091 ROD, КАПОТ OPEN ASST DY29 (EXPORT) 2008-2009 01
019 11609978 STUD, КАПОТ OPEN ASST ROD (M6X1X16) (W/8MM BALL SIDE B) DX 2007-2010 02
019 11609978 STUD, КАПОТ OPEN ASST ROD (STUD-SPL W/FL WA, 14 THD, 14 OD, 1018, GMW4700) (M6X1X16) (W/8MM BALL SIDE B) DW29 2005-2008 01
019 11609978 STUD, КАПОТ OPEN ASST ROD (STUD-SPL W/FL WA, 14 THD, 14 OD, 1018, GMW4700) (M6X1X16) (W/8MM BALL SIDE B) DY29 2008-2009 01
020 25925190 SEAL, КАПОТ FRT (W/7 RETAINERS) DX 2006-2009 01
020 25925190 SEAL, КАПОТ FRT (W/7 RETAINERS) DW 2006-2010 01
020 25925190 SEAL, КАПОТ FRT (W/7 RETAINERS) DY (EXPORT) 2008-2009 01
021 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (КАПОТ FRT SEAL) 2005-2010 07
022 11609978 STUD, КАПОТ OPEN ASST ROD (M6X1X16) (W/8MM BALL SIDE B) DX 2007-2010 02
022 11609978 STUD, КАПОТ OPEN ASST ROD (STUD-SPL W/FL WA, 14 THD, 14 OD, W/8MM BALL SIDE B, 1018, GMW4700) (M6X1X16) (W/8MM BALL SIDE B) DY29 2008-2009 01
022 11609978 STUD, КАПОТ OPEN ASST ROD (STUD-SPL W/FL WA, M6X1X16, 14 THD, 14 OD, W/8MM BALL SIDE B, 1018, GMW4700) (M6X1X16) (W/8MM BALL SIDE B) DW29 2005-2008 01
023 11609540 БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (КАПОТ PRIM LAT STKR PLT) 2005-2010 04
024 25724791 BRACE, F/END SH MET DIAG DW 2005-2010 02
024 25724791 BRACE, F/END SH MET DIAG DX 2006-2009 02
024 25724791 BRACE, F/END SH MET DIAG DY29 (EXPORT) 2008-2009 02
025 11609540 БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (F/END SH MET DIAG BR) 2005-2010 02
K01 19207219 HINGE KIT, КАПОТ (INCLS 3, 8) (INCLS UPPER LOWER HINGES) DW 2005-2010 01
K01 19207219 HINGE KIT, КАПОТ (INCLS 3, 8) (INCLS UPPER LOWER HINGES) DX 2006-2009 01
K01 19207219 HINGE KIT, КАПОТ (INCLS 3, 8) (INCLS UPPER LOWER HINGES) DY (EXPORT) 2008-2009 01
K01 19207220 HINGE KIT, КАПОТ (INCLS 3, 8) (INCLS UPPER LOWER HINGES) DX 2007-2009 01
K01 19207220 HINGE KIT, КАПОТ (INCLS 3, 8) (INCLS UPPER LOWER HINGES) DW 2007-2010 01
